| Product Name |

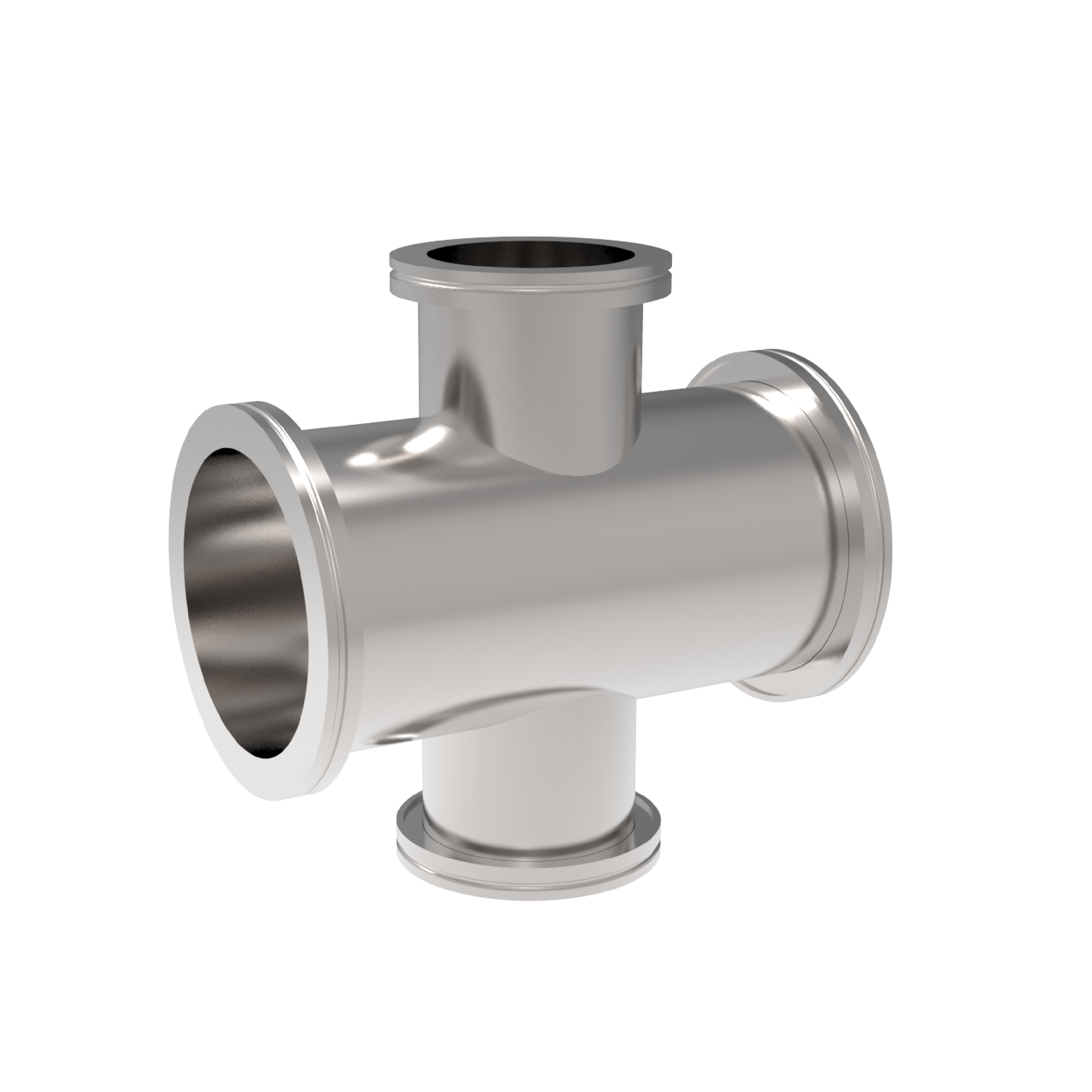

ISO-K Reducer Cross |
| System |
ISO-K |
| Product Type |
Reducer Cross |
| Function |
Cross fitting with reduced nominal diameter |
| Material Versions |
Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Pressure Range - Elastomer Seal |
1 × 10⁻⁸ mbar to 500 mbar over pressure |
| Pressure Range - Metal Seal |
1 × 10⁻⁹ mbar to 500 mbar over pressure |
| Available Flange Sizes (DN) |
100, 160 |
| Available Reduced Nominal Diameters |
63, 100 |

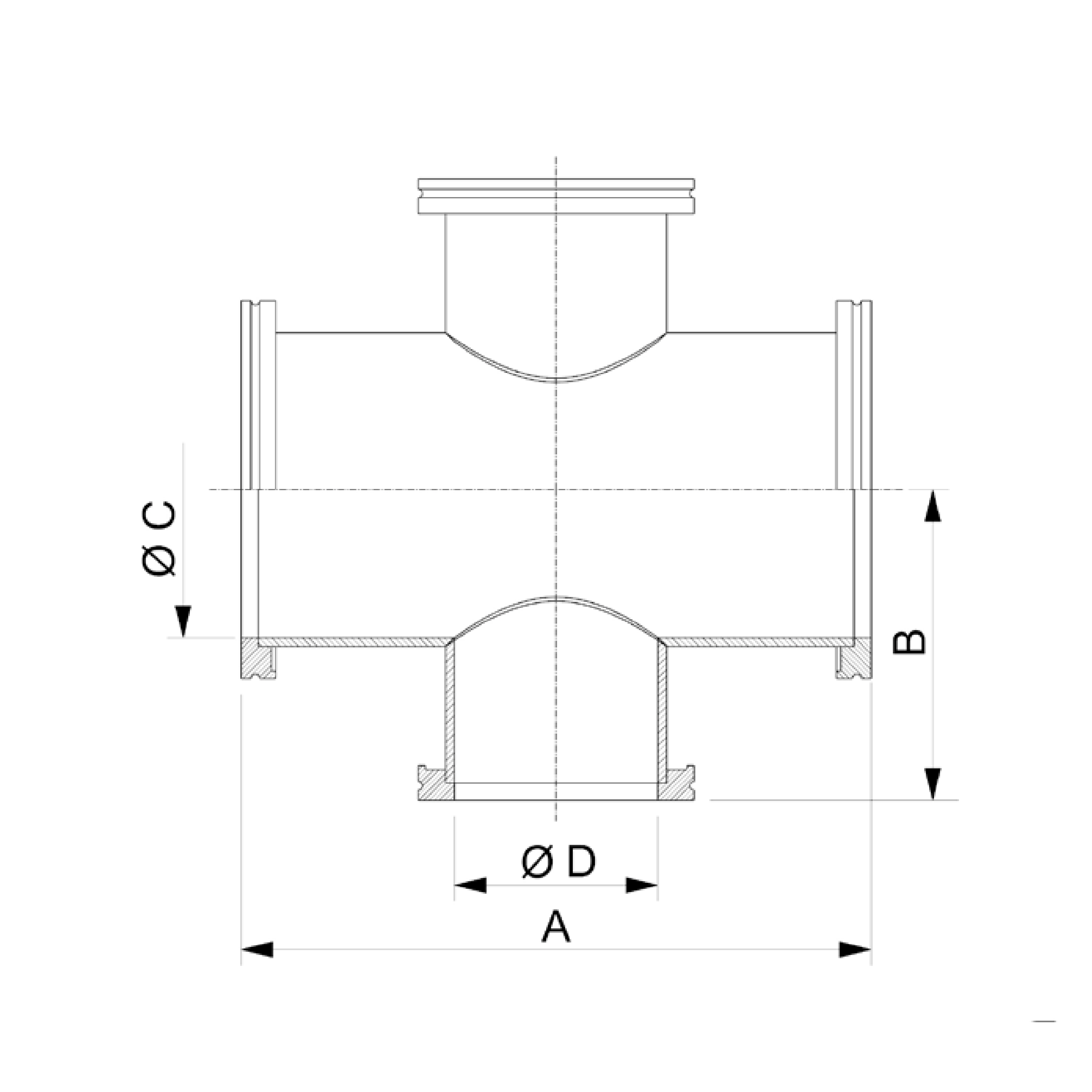

| Main Dimensions |
A, B, C, D |
| Temperature Range - Stainless Steel 304 / 1.4301 |
-196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 |
-196 to 350 °C |
