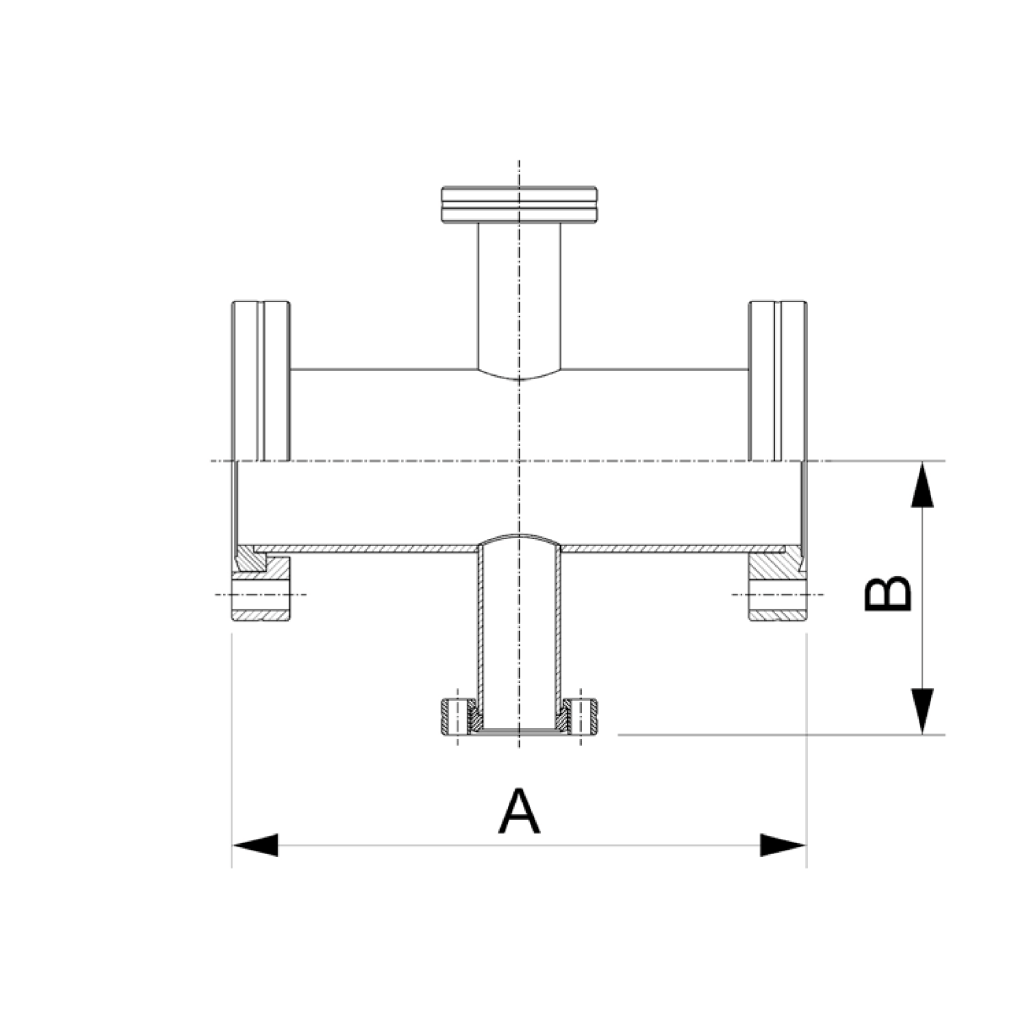

| Flange Size (DN) | Reducer Flange Size (DN) | A (mm) | B (mm) | Order No |
|---|---|---|---|---|
| 40 | 16 | 126 | 60 | VC4FTF1SS040-016-126 |
| 63 | 40 | 210 | 77 | VC4FTF1SS063-040-210 |
| 100 | 40 | 270 | 95 | VC4FTF1SS100-040-270 |
| 100 | 63 | 270 | 95 | VC4FTF1SS100-063-270 |
| 160 | 40 | 334 | 120 | VC4FTF1SS160-040-334 |
| 160 | 63 | 334 | 120 | VC4FTF1SS160-063-334 |
| 160 | 100 | 334 | 120 | VC4FTF1SS160-100-334 |
| Flange Size (DN) | Reducer Flange Size (DN) | A (mm) | B (mm) | Order No |
|---|---|---|---|---|
| 40 | 16 | 126 | 60 | VC4FTF2SS040-016-126 |
| 63 | 40 | 210 | 77 | VC4FTF2SS063-040-210 |
| 100 | 40 | 270 | 95 | VC4FTF2SS100-040-270 |
| 100 | 63 | 270 | 95 | VC4FTF2SS100-063-270 |
| 160 | 40 | 334 | 120 | VC4FTF2SS160-040-334 |
| 160 | 63 | 334 | 120 | VC4FTF2SS160-063-334 |
| 160 | 100 | 334 | 120 | VC4FTF2SS160-100-334 |
