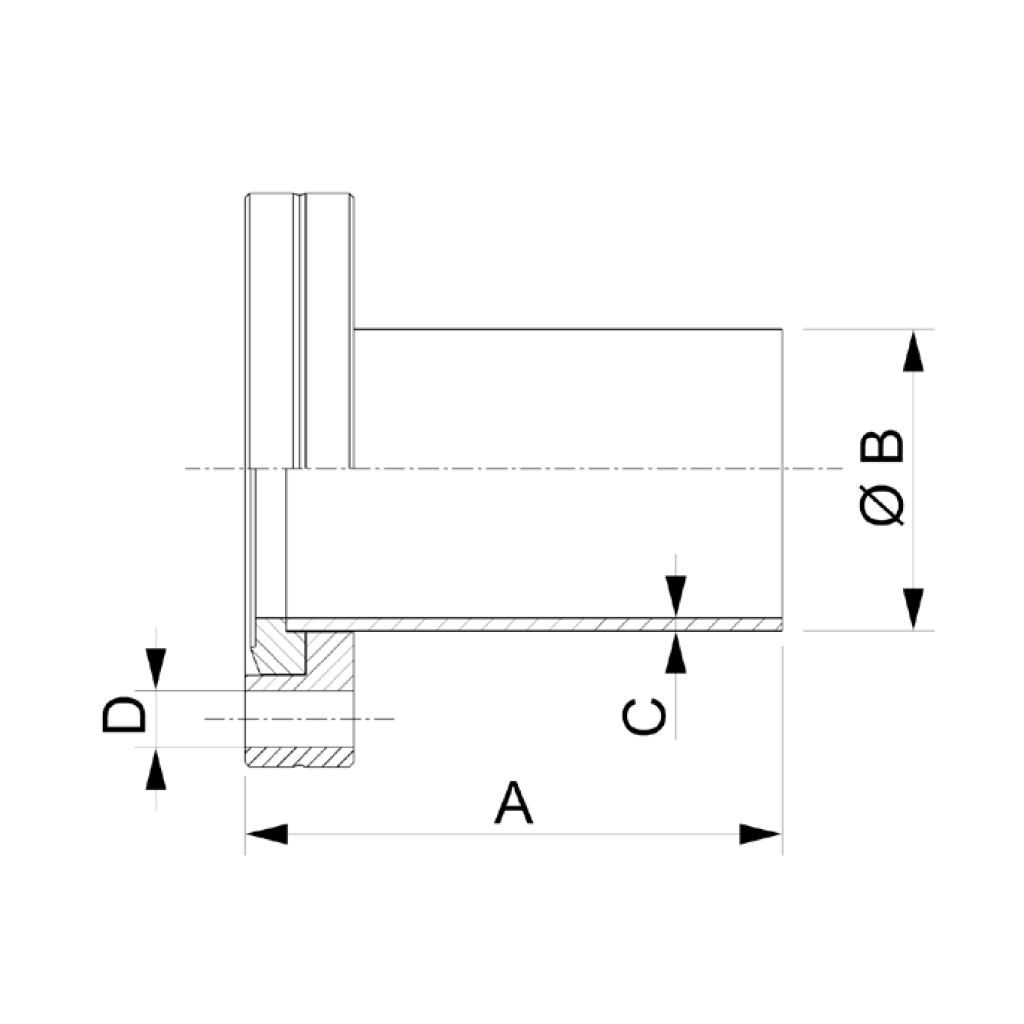

| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D | Order No |
|---|---|---|---|---|---|---|
| 16 | 18x1 | 38 | 18 | 1 | M4 | VC4FLB1SS016-18-38 |
| 16 | 19.05x1.65 | 38 | 19.05 | 1.65 | M4 | VC4FLB1SS016-19-38 |
| 25 | 25.4x1.65 | 52 | 25.4 | 1.65 | M6 | VC4FLB1SS025-25-52 |
| 40 | 38x1.5 | 63 | 38 | 1.5 | M6 | VC4FLB1SS040-38-63 |
| 40 | 40x1.5 | 63 | 40 | 1.5 | M6 | VC4FLB1SS040-40-63 |
| 50 | 50.8x1.65 | 82 | 50.8 | 1.65 | M8 | VC4FLB1SS050-50-82 |
| 63 | 63.5x1.65 | 105 | 63.5 | 1.65 | M8 | VC4FLB1SS063-63-105 |
| 63 | 70x2 | 105 | 70 | 2 | M8 | VC4FLB1SS063-70-105 |
| 75 | 76.1x2 | 90 | 76.1 | 2 | M8 | VC4FLB1SS075-76-90 |
| 100 | 101.6x2.1 | 135 | 101.6 | 2.1 | M8 | VC4FLB1SS100-101-135 |
| 100 | 108x2 | 135 | 108 | 2 | M8 | VC4FLB1SS100-108-135 |
| 160 | 154x2 | 167 | 154 | 2 | M8 | VC4FLB1SS160-154-167 |
| 160 | 159x2 | 167 | 159 | 2 | M8 | VC4FLB1SS160-159-167 |
| 200 | 203.2x2.4 | 200 | 203.2 | 2.4 | M8 | VC4FLB1SS200-203-200 |
| 200 | 204x2 | 200 | 204 | 2 | M8 | VC4FLB1SS200-204-200 |
| 200 | 205x2 | 200 | 205 | 2 | M8 | VC4FLB1SS200-205-200 |
| 250 | 254x2 | 200 | 254 | 2 | M8 | VC4FLB1SS250-254-200 |
| 250 | 256x3 | 200 | 256 | 3 | M8 | VC4FLB1SS250-256-200 |
| 300 | 306x3 | 230 | 306 | 3 | M10 | VC4FLB1SS300-306-230 |
| 350 | 356x3 | 230 | 356 | 3 | M10 | VC4FLB1SS350-356-230 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D | Order No |
|---|---|---|---|---|---|---|
| 16 | 18x1 | 38 | 18 | 1 | M4 | VC4FLB2SS016-18-38 |
| 16 | 19.05x1.65 | 38 | 19.05 | 1.65 | M4 | VC4FLB2SS016-19-38 |
| 25 | 25.4x1.65 | 52 | 25.4 | 1.65 | M6 | VC4FLB2SS025-25-52 |
| 40 | 38x1.5 | 63 | 38 | 1.5 | M6 | VC4FLB2SS040-38-63 |
| 40 | 40x1.5 | 63 | 40 | 1.5 | M6 | VC4FLB2SS040-40-63 |
| 50 | 50.8x1.65 | 82 | 50.8 | 1.65 | M8 | VC4FLB2SS050-50-82 |
| 63 | 63.5x1.65 | 105 | 63.5 | 1.65 | M8 | VC4FLB2SS063-63-105 |
| 63 | 70x2 | 105 | 70 | 2 | M8 | VC4FLB2SS063-70-105 |
| 75 | 76.1x2 | 90 | 76.1 | 2 | M8 | VC4FLB2SS075-76-90 |
| 100 | 101.6x2.1 | 135 | 101.6 | 2.1 | M8 | VC4FLB2SS100-101-135 |
| 100 | 108x2 | 135 | 108 | 2 | M8 | VC4FLB2SS100-108-135 |
| 160 | 154x2 | 167 | 154 | 2 | M8 | VC4FLB2SS160-154-167 |
| 160 | 159x2 | 167 | 159 | 2 | M8 | VC4FLB2SS160-159-167 |
| 200 | 203.2x2.4 | 200 | 203.2 | 2.4 | M8 | VC4FLB2SS200-203-200 |
| 200 | 204x2 | 200 | 204 | 2 | M8 | VC4FLB2SS200-204-200 |
| 200 | 205x2 | 200 | 205 | 2 | M8 | VC4FLB2SS200-205-200 |
| 250 | 254x2 | 200 | 254 | 2 | M8 | VC4FLB2SS250-254-200 |
| 250 | 256x3 | 200 | 256 | 3 | M8 | VC4FLB2SS250-256-200 |
| 300 | 306x3 | 230 | 306 | 3 | M10 | VC4FLB2SS300-306-230 |
| 350 | 356x3 | 230 | 356 | 3 | M10 | VC4FLB2SS350-356-230 |
