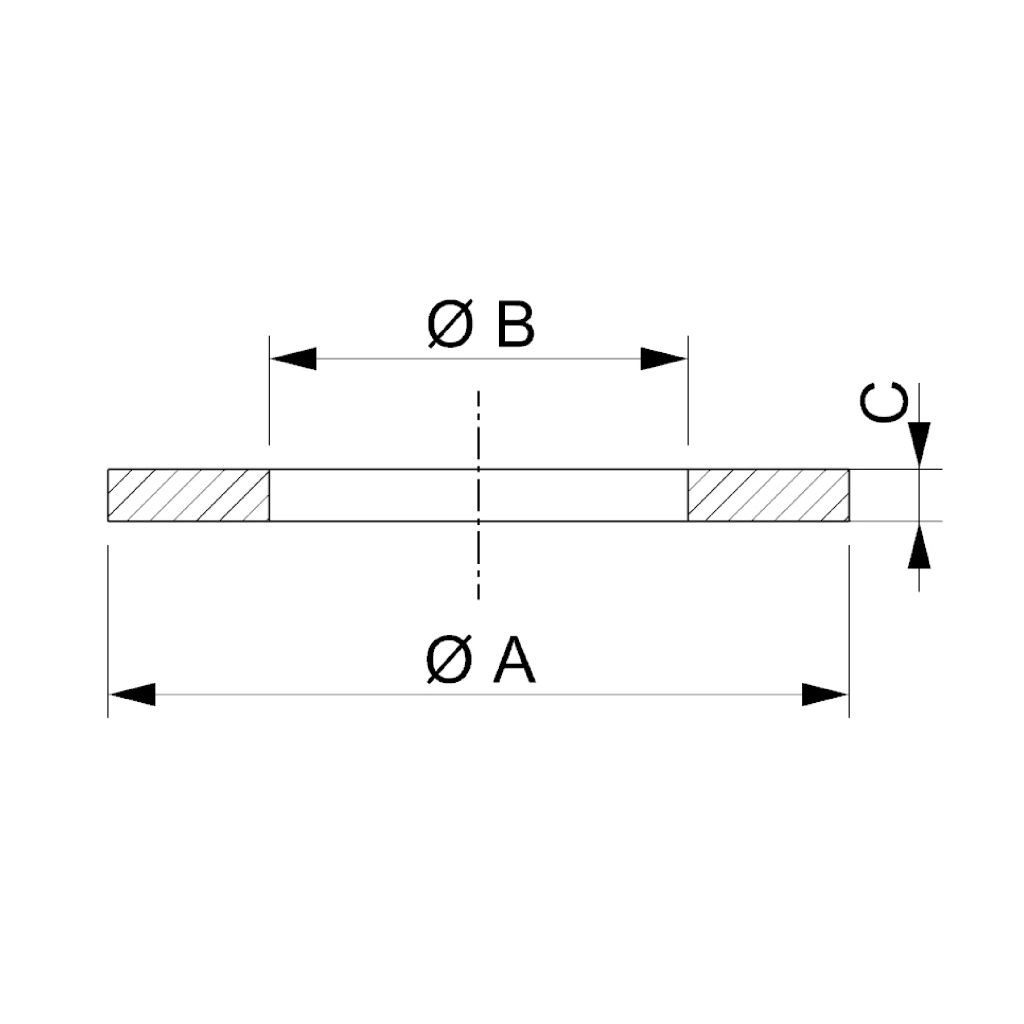

| Size (DN) | A (mm) | B (mm) | C (mm) | Order No |
| 16 | 21.3 | 16 | 2 | VC4SLB1CU016 |
| 25 | 32.8 | 25.5 | 2 | VC4SLB1CU025 |
| 40 | 48.2 | 36.6 | 2 | VC4SLB1CU040 |
| 50 | 61.6 | 50.8 | 2 | VC4SLB1CU050 |
| 63 | 82.4 | 63.4 | 2 | VC4SLB1CU063 |
| 75 | 91.4 | 76.3 | 2 | VC4SLB1CU075 |
| 100 | 120.5 | 101.6 | 2 | VC4SLB1CU100 |
| 125 | 141.4 | 127.1 | 2 | VC4SLB1CU125 |
| 160 | 171.3 | 152.4 | 2 | VC4SLB1CU160 |
| 200 | 222.1 | 203.3 | 2 | VC4SLB1CU200 |
| 250 | 272.9 | 254 | 2 | VC4SLB1CU250 |
| 300 | 313.2 | 300 | 2 | VC4SLB1CU300 |
| 350 | 376.6 | 356.5 | 2 | VC4SLB1CU350 |
| Size (DN) | A (mm) | B (mm) | C (mm) | Order No |
| 16 | 21.3 | 16 | 2 | VC4SLB1CU016-S |
| 25 | 32.8 | 25.5 | 2 | VC4SLB1CU025-S |
| 40 | 48.2 | 36.6 | 2 | VC4SLB1CU040-S |
| 50 | 61.6 | 50.8 | 2 | VC4SLB1CU050-S |
| 63 | 82.4 | 63.4 | 2 | VC4SLB1CU063-S |
| 75 | 91.4 | 76.3 | 2 | VC4SLB1CU075-S |
| 100 | 120.5 | 101.6 | 2 | VC4SLB1CU100-S |
| 125 | 141.4 | 127.1 | 2 | VC4SLB1CU125-S |
| 160 | 171.3 | 152.4 | 2 | VC4SLB1CU160-S |
| 200 | 222.1 | 203.3 | 2 | VC4SLB1CU200-S |
| 250 | 272.9 | 254 | 2 | VC4SLB1CU250-S |
| 300 | 313.2 | 300 | 2 | VC4SLB1CU300-S |
| 350 | 376.6 | 356.5 | 2 | VC4SLB1CU350-S |
