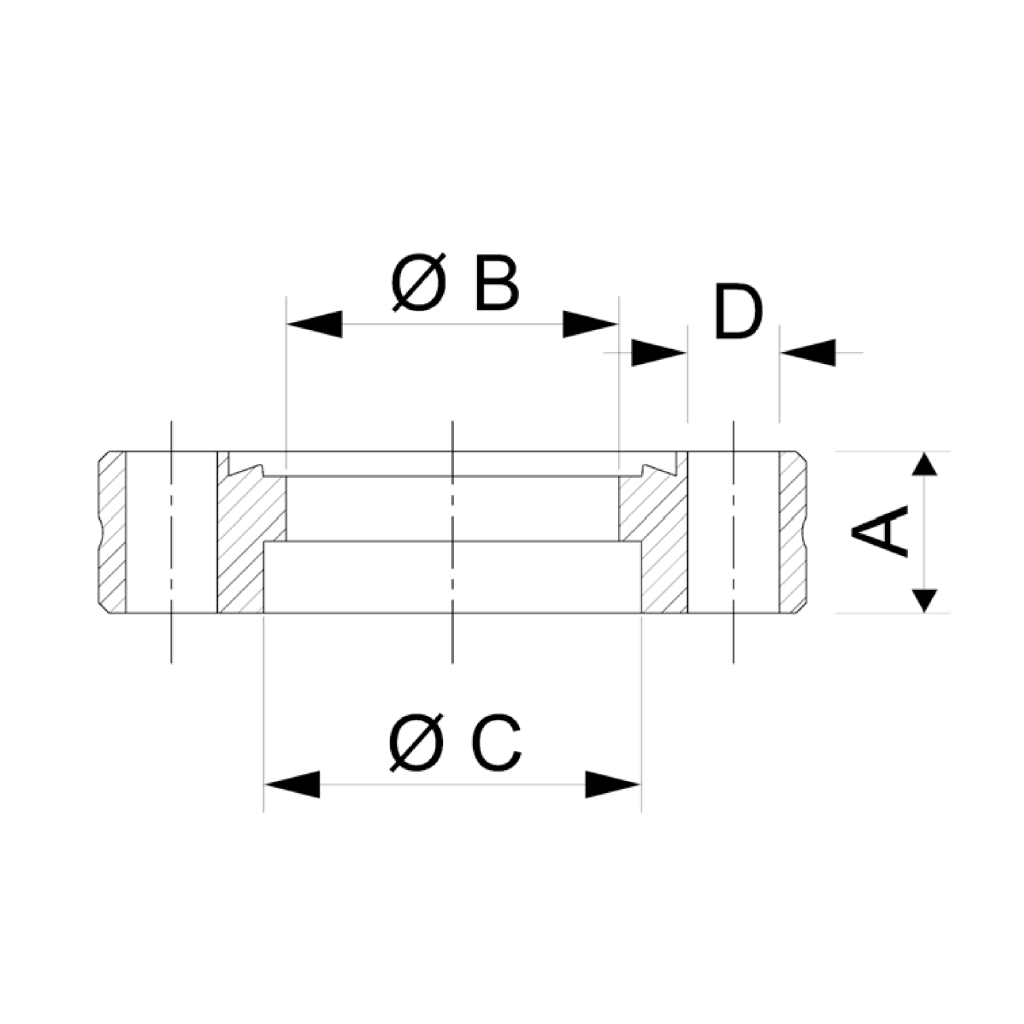

| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D | Order No |
|---|---|---|---|---|---|---|
| 16 | 18x1 | 7.5 | 16 | 18.15 | M4 | VC4FLK1SS016-18 |
| 25 | 28x2 | 12 | 24 | 28.2 | M6 | VC4FLK1SS025-28 |
| 40 | 38x1.5 | 13 | 35 | 38.2 | M6 | VC4FLK1SS040-38 |
| 40 | 40x1.5 | 13 | 37 | 40.2 | M6 | VC4FLK1SS040-40 |
| 40 | 42.4x2 | 13 | 38.4 | 42.6 | M6 | VC4FLK1SS040-42 |
| 40 | 44.5x2 | 13 | 40.5 | 44.7 | M6 | VC4FLK1SS040-44 |
| 63 | 70x2 | 17.5 | 66 | 70.3 | M8 | VC4FLK1SS063-70 |
| 100 | 104x2 | 20 | 100 | 104.3 | M8 | VC4FLK1SS100-104 |
| 100 | 108x2 | 20 | 104 | 108.3 | M8 | VC4FLK1SS100-108 |
| 160 | 154x2 | 21.5 | 150 | 154.3 | M8 | VC4FLK1SS160-154 |
| 160 | 159x2 | 21.5 | 155 | 159.3 | M8 | VC4FLK1SS160-159 |
| 200 | 204x2 | 24.5 | 200 | 204.3 | M8 | VC4FLK1SS200-204 |
| 200 | 205x2.5 | 24.5 | 200 | 205.3 | M8 | VC4FLK1SS200-205 |
| 250 | 254x2 | 24.5 | 250 | 254.3 | M8 | VC4FLK1SS250-254 |
| 250 | 256x3 | 24.5 | 250 | 256.3 | M8 | VC4FLK1SS250-256 |
| 300 | 306x3 | 28.5 | 300 | 306.3 | M10 | VC4FLK1SS300-306 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D | Order No |
|---|---|---|---|---|---|---|
| 16 | 18x1 | 7.5 | 16 | 18.15 | M4 | VC4FLK2SS016-18 |
| 25 | 28x2 | 12 | 24 | 28.2 | M6 | VC4FLK2SS025-28 |
| 40 | 38x1.5 | 13 | 35 | 38.2 | M6 | VC4FLK2SS040-38 |
| 40 | 40x1.5 | 13 | 37 | 40.2 | M6 | VC4FLK2SS040-40 |
| 40 | 42.4x2 | 13 | 38.4 | 42.6 | M6 | VC4FLK2SS040-42 |
| 40 | 44.5x2 | 13 | 40.5 | 44.7 | M6 | VC4FLK2SS040-44 |
| 63 | 70x2 | 17.5 | 66 | 70.3 | M8 | VC4FLK2SS063-70 |
| 100 | 104x2 | 20 | 100 | 104.3 | M8 | VC4FLK2SS100-104 |
| 100 | 108x2 | 20 | 104 | 108.3 | M8 | VC4FLK2SS100-108 |
| 160 | 154x2 | 21.5 | 150 | 154.3 | M8 | VC4FLK2SS160-154 |
| 160 | 159x2 | 21.5 | 155 | 159.3 | M8 | VC4FLK2SS160-159 |
| 200 | 204x2 | 24.5 | 200 | 204.3 | M8 | VC4FLK2SS200-204 |
| 200 | 205x2.5 | 24.5 | 200 | 205.3 | M8 | VC4FLK2SS200-205 |
| 250 | 254x2 | 24.5 | 250 | 254.3 | M8 | VC4FLK2SS250-254 |
| 250 | 256x3 | 24.5 | 250 | 256.3 | M8 | VC4FLK2SS250-256 |
| 300 | 306x3 | 28.5 | 300 | 306.3 | M10 | VC4FLK2SS300-306 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D | Order No |
|---|---|---|---|---|---|---|
| 16 | 18x1 | 7.5 | 16 | 18.15 | M4 | VC4FLK3SS016-18 |
| 25 | 28x2 | 12 | 24 | 28.2 | M6 | VC4FLK3SS025-28 |
| 40 | 38x1.5 | 13 | 35 | 38.2 | M6 | VC4FLK3SS040-38 |
| 40 | 40x1.5 | 13 | 37 | 40.2 | M6 | VC4FLK3SS040-40 |
| 40 | 42.4x2 | 13 | 38.4 | 42.6 | M6 | VC4FLK3SS040-42 |
| 40 | 44.5x2 | 13 | 40.5 | 44.7 | M6 | VC4FLK3SS040-44 |
| 63 | 70x2 | 17.5 | 66 | 70.3 | M8 | VC4FLK3SS063-70 |
| 100 | 104x2 | 20 | 100 | 104.3 | M8 | VC4FLK3SS100-104 |
| 100 | 108x2 | 20 | 104 | 108.3 | M8 | VC4FLK3SS100-108 |
| 160 | 154x2 | 21.5 | 150 | 154.3 | M8 | VC4FLK3SS160-154 |
| 160 | 159x2 | 21.5 | 155 | 159.3 | M8 | VC4FLK3SS160-159 |
| 200 | 204x2 | 24.5 | 200 | 204.3 | M8 | VC4FLK3SS200-204 |
| 200 | 205x2.5 | 24.5 | 200 | 205.3 | M8 | VC4FLK3SS200-205 |
| 250 | 254x2 | 24.5 | 250 | 254.3 | M8 | VC4FLK3SS250-254 |
| 250 | 256x3 | 24.5 | 250 | 256.3 | M8 | VC4FLK3SS250-256 |
| 300 | 306x3 | 28.5 | 300 | 306.3 | M10 | VC4FLK3SS300-306 |
