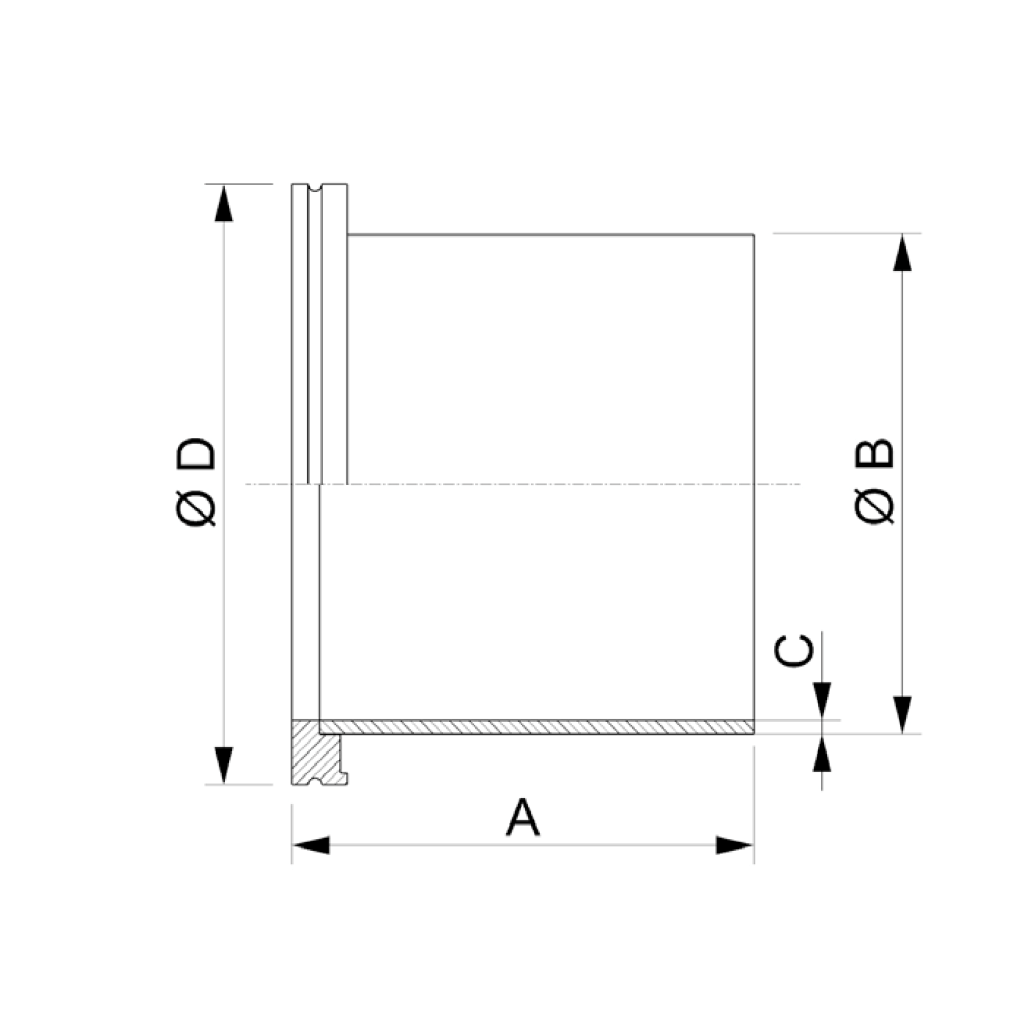

| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Order No |
|---|---|---|---|---|---|---|
| 63 | 63.5x1.65 | 100 | 63.5 | 1.65 | 95 | VC2FLA1SS063-63-100 |
| 63 | 76.1x3 | 100 | 76.1 | 3 | 95 | VC2FLA1SS063-76-100 |
| 80 | 76.1x3 | 100 | 76.1 | 3 | 110 | VC2FLA1SS080-76-100 |
| 80 | 88.9x3 | 100 | 88.9 | 3 | 110 | VC2FLA1SS080-88-100 |
| 100 | 101.6x2.1 | 100 | 101.6 | 2.1 | 130 | VC2FLA1SS100-101-100 |
| 100 | 108x3 | 100 | 108 | 3 | 130 | VC2FLA1SS100-108-100 |
| 160 | 152.4x2.4 | 100 | 152.4 | 2.4 | 180 | VC2FLA1SS160-152-100 |
| 160 | 159x3 | 100 | 159 | 3 | 180 | VC2FLA1SS160-159-100 |
| 200 | 203.2x2.4 | 100 | 203.2 | 2.4 | 240 | VC2FLA1SS200-203-100 |
| 200 | 219x3 | 100 | 219 | 3 | 240 | VC2FLA1SS200-219-100 |
| 250 | 254x2 | 100 | 254 | 2 | 290 | VC2FLA1SS250-254-100 |
| 250 | 273x3 | 100 | 273 | 3 | 290 | VC2FLA1SS250-273-100 |
| 320 | 324x3 | 100 | 324 | 3 | 370 | VC2FLA1SS320-324-100 |
| 400 | 406.4x3 | 100 | 406.4 | 3 | 450 | VC2FLA1SS400-406-100 |
| 500 | 508x4 | 100 | 508 | 4 | 550 | VC2FLA1SS500-508-100 |
| 630 | 660x5 | 100 | 660 | 5 | 690 | VC2FLA1SS630-660-100 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Order No |
|---|---|---|---|---|---|---|
| 63 | 63.5x1.65 | 100 | 63.5 | 1.65 | 95 | VC2FLA2SS063-63-100 |
| 63 | 76.1x3 | 100 | 76.1 | 3 | 95 | VC2FLA2SS063-76-100 |
| 80 | 76.1x3 | 100 | 76.1 | 3 | 110 | VC2FLA2SS080-76-100 |
| 80 | 88.9x3 | 100 | 88.9 | 3 | 110 | VC2FLA2SS080-88-100 |
| 100 | 101.6x2.1 | 100 | 101.6 | 2.1 | 130 | VC2FLA2SS100-101-100 |
| 100 | 108x3 | 100 | 108 | 3 | 130 | VC2FLA2SS100-108-100 |
| 160 | 152.4x2.4 | 100 | 152.4 | 2.4 | 180 | VC2FLA2SS160-152-100 |
| 160 | 159x3 | 100 | 159 | 3 | 180 | VC2FLA2SS160-159-100 |
| 200 | 203.2x2.4 | 100 | 203.2 | 2.4 | 240 | VC2FLA2SS200-203-100 |
| 200 | 219x3 | 100 | 219 | 3 | 240 | VC2FLA2SS200-219-100 |
| 250 | 254x2 | 100 | 254 | 2 | 290 | VC2FLA2SS250-254-100 |
| 250 | 273x3 | 100 | 273 | 3 | 290 | VC2FLA2SS250-273-100 |
| 320 | 324x3 | 100 | 324 | 3 | 370 | VC2FLA2SS320-324-100 |
| 400 | 406.4x3 | 100 | 406.4 | 3 | 450 | VC2FLA2SS400-406-100 |
| 500 | 508x4 | 100 | 508 | 4 | 550 | VC2FLA2SS500-508-100 |
| 630 | 660x5 | 100 | 660 | 5 | 690 | VC2FLA2SS630-660-100 |
