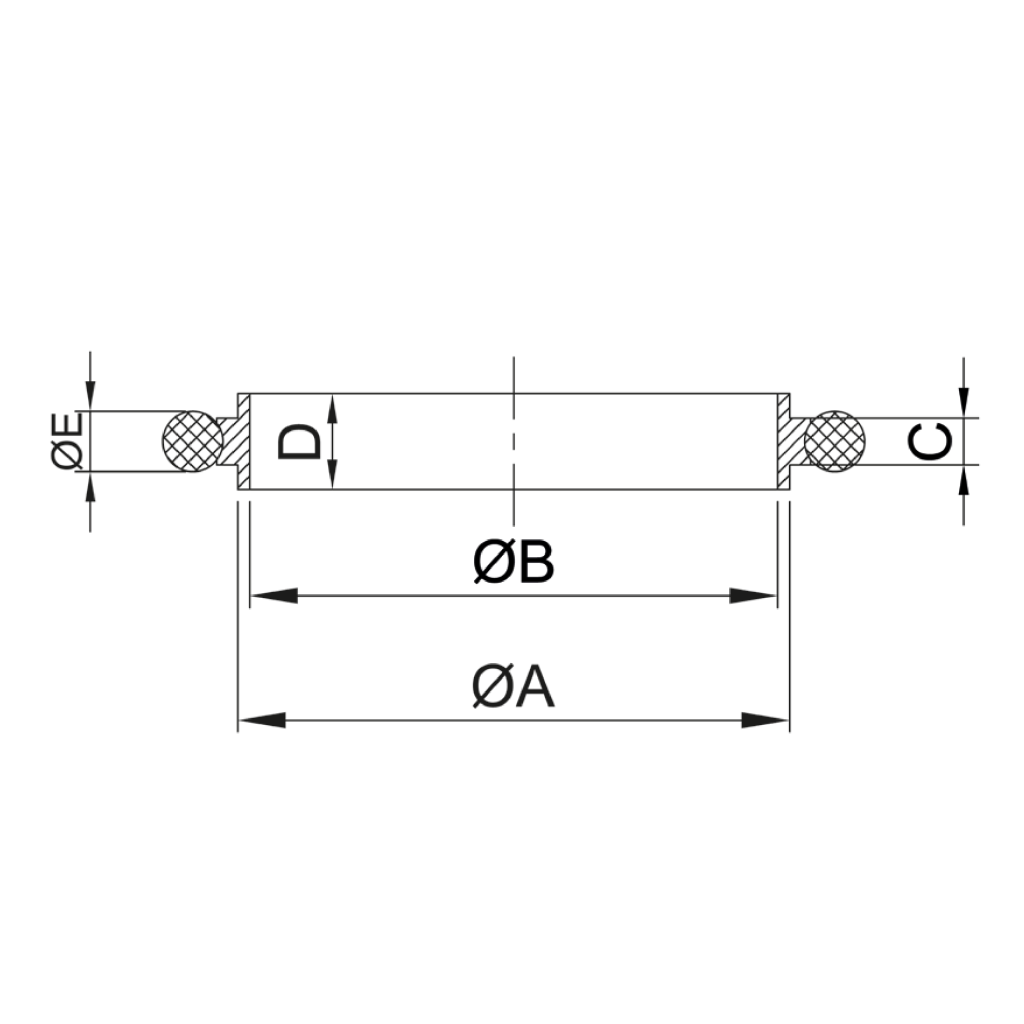

| Size (DN) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | O-ring material | Order No |
|---|---|---|---|---|---|---|---|
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | FKM | VC2SLA1AL063-FKM |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | FKM | VC2SLA1AL080-FKM |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | FKM | VC2SLA1AL100-FKM |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | FKM | VC2SLA1AL160-FKM |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | FKM | VC2SLA1AL200-FKM |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | FKM | VC2SLA1AL250-FKM |
| 320 | 318 | 313 | 5.6 | 14 | 7 | FKM | VC2SLA1AL320-FKM |
| 400 | 400 | 395 | 5.6 | 14 | 7 | FKM | VC2SLA1AL400-FKM |
| 500 | 501 | 496 | 5.6 | 14 | 7 | FKM | VC2SLA1AL500-FKM |
| 630 | 651 | 646 | 5.6 | 14 | 7 | FKM | VC2SLA1AL630-FKM |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | CR | VC2SLA1AL063-CR |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | CR | VC2SLA1AL080-CR |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | CR | VC2SLA1AL100-CR |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | CR | VC2SLA1AL160-CR |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | CR | VC2SLA1AL200-CR |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | CR | VC2SLA1AL250-CR |
| 320 | 318 | 313 | 5.6 | 14 | 7 | CR | VC2SLA1AL320-CR |
| 400 | 400 | 395 | 5.6 | 14 | 7 | CR | VC2SLA1AL400-CR |
| 500 | 501 | 496 | 5.6 | 14 | 7 | CR | VC2SLA1AL500-CR |
| 630 | 651 | 646 | 5.6 | 14 | 7 | CR | VC2SLA1AL630-CR |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | NBR | VC2SLA1AL063-NBR |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | NBR | VC2SLA1AL080-NBR |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | NBR | VC2SLA1AL100-NBR |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | NBR | VC2SLA1AL160-NBR |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | NBR | VC2SLA1AL200-NBR |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | NBR | VC2SLA1AL250-NBR |
| 320 | 318 | 313 | 5.6 | 14 | 7 | NBR | VC2SLA1AL320-NBR |
| 400 | 400 | 395 | 5.6 | 14 | 7 | NBR | VC2SLA1AL400-NBR |
| 500 | 501 | 496 | 5.6 | 14 | 7 | NBR | VC2SLA1AL500-NBR |
| 630 | 651 | 646 | 5.6 | 14 | 7 | NBR | VC2SLA1AL630-NBR |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1AL063-EPDM |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1AL080-EPDM |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1AL100-EPDM |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1AL160-EPDM |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1AL200-EPDM |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1AL250-EPDM |
| 320 | 318 | 313 | 5.6 | 14 | 7 | EPDM | VC2SLA1AL320-EPDM |
| 400 | 400 | 395 | 5.6 | 14 | 7 | EPDM | VC2SLA1AL400-EPDM |
| 500 | 501 | 496 | 5.6 | 14 | 7 | EPDM | VC2SLA1AL500-EPDM |
| 630 | 651 | 646 | 5.6 | 14 | 7 | EPDM | VC2SLA1AL630-EPDM |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1AL063-VMQ |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1AL080-VMQ |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1AL100-VMQ |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1AL160-VMQ |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1AL200-VMQ |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1AL250-VMQ |
| 320 | 318 | 313 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1AL320-VMQ |
| 400 | 400 | 395 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1AL400-VMQ |
| 500 | 501 | 496 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1AL500-VMQ |
| 630 | 651 | 646 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1AL630-VMQ |
| Size (DN) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | O-ring material | Order No |
|---|---|---|---|---|---|---|---|
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | FKM | VC2SLA1SS063-FKM |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | FKM | VC2SLA1SS080-FKM |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | FKM | VC2SLA1SS100-FKM |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | FKM | VC2SLA1SS160-FKM |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | FKM | VC2SLA1SS200-FKM |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | FKM | VC2SLA1SS250-FKM |
| 320 | 318 | 313 | 5.6 | 14 | 7 | FKM | VC2SLA1SS320-FKM |
| 400 | 400 | 395 | 5.6 | 14 | 7 | FKM | VC2SLA1SS400-FKM |
| 500 | 501 | 496 | 5.6 | 14 | 7 | FKM | VC2SLA1SS500-FKM |
| 630 | 651 | 646 | 5.6 | 14 | 7 | FKM | VC2SLA1SS630-FKM |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | CR | VC2SLA1SS063-CR |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | CR | VC2SLA1SS080-CR |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | CR | VC2SLA1SS100-CR |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | CR | VC2SLA1SS160-CR |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | CR | VC2SLA1SS200-CR |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | CR | VC2SLA1SS250-CR |
| 320 | 318 | 313 | 5.6 | 14 | 7 | CR | VC2SLA1SS320-CR |
| 400 | 400 | 395 | 5.6 | 14 | 7 | CR | VC2SLA1SS400-CR |
| 500 | 501 | 496 | 5.6 | 14 | 7 | CR | VC2SLA1SS500-CR |
| 630 | 651 | 646 | 5.6 | 14 | 7 | CR | VC2SLA1SS630-CR |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | NBR | VC2SLA1SS063-NBR |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | NBR | VC2SLA1SS080-NBR |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | NBR | VC2SLA1SS100-NBR |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | NBR | VC2SLA1SS160-NBR |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | NBR | VC2SLA1SS200-NBR |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | NBR | VC2SLA1SS250-NBR |
| 320 | 318 | 313 | 5.6 | 14 | 7 | NBR | VC2SLA1SS320-NBR |
| 400 | 400 | 395 | 5.6 | 14 | 7 | NBR | VC2SLA1SS400-NBR |
| 500 | 501 | 496 | 5.6 | 14 | 7 | NBR | VC2SLA1SS500-NBR |
| 630 | 651 | 646 | 5.6 | 14 | 7 | NBR | VC2SLA1SS630-NBR |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1SS063-EPDM |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1SS080-EPDM |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1SS100-EPDM |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1SS160-EPDM |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1SS200-EPDM |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | EPDM | VC2SLA1SS250-EPDM |
| 320 | 318 | 313 | 5.6 | 14 | 7 | EPDM | VC2SLA1SS320-EPDM |
| 400 | 400 | 395 | 5.6 | 14 | 7 | EPDM | VC2SLA1SS400-EPDM |
| 500 | 501 | 496 | 5.6 | 14 | 7 | EPDM | VC2SLA1SS500-EPDM |
| 630 | 651 | 646 | 5.6 | 14 | 7 | EPDM | VC2SLA1SS630-EPDM |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1SS063-VMQ |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1SS080-VMQ |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1SS100-VMQ |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1SS160-VMQ |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1SS200-VMQ |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA1SS250-VMQ |
| 320 | 318 | 313 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1SS320-VMQ |
| 400 | 400 | 395 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1SS400-VMQ |
| 500 | 501 | 496 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1SS500-VMQ |
| 630 | 651 | 646 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA1SS630-VMQ |
| Size (DN) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | O-ring material | Order No |
|---|---|---|---|---|---|---|---|
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | FKM | VC2SLA2SS063-FKM |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | FKM | VC2SLA2SS080-FKM |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | FKM | VC2SLA2SS100-FKM |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | FKM | VC2SLA2SS160-FKM |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | FKM | VC2SLA2SS200-FKM |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | FKM | VC2SLA2SS250-FKM |
| 320 | 318 | 313 | 5.6 | 14 | 7 | FKM | VC2SLA2SS320-FKM |
| 400 | 400 | 395 | 5.6 | 14 | 7 | FKM | VC2SLA2SS400-FKM |
| 500 | 501 | 496 | 5.6 | 14 | 7 | FKM | VC2SLA2SS500-FKM |
| 630 | 651 | 646 | 5.6 | 14 | 7 | FKM | VC2SLA2SS630-FKM |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | CR | VC2SLA2SS063-CR |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | CR | VC2SLA2SS080-CR |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | CR | VC2SLA2SS100-CR |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | CR | VC2SLA2SS160-CR |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | CR | VC2SLA2SS200-CR |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | CR | VC2SLA2SS250-CR |
| 320 | 318 | 313 | 5.6 | 14 | 7 | CR | VC2SLA2SS320-CR |
| 400 | 400 | 395 | 5.6 | 14 | 7 | CR | VC2SLA2SS400-CR |
| 500 | 501 | 496 | 5.6 | 14 | 7 | CR | VC2SLA2SS500-CR |
| 630 | 651 | 646 | 5.6 | 14 | 7 | CR | VC2SLA2SS630-CR |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | NBR | VC2SLA2SS063-NBR |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | NBR | VC2SLA2SS080-NBR |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | NBR | VC2SLA2SS100-NBR |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | NBR | VC2SLA2SS160-NBR |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | NBR | VC2SLA2SS200-NBR |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | NBR | VC2SLA2SS250-NBR |
| 320 | 318 | 313 | 5.6 | 14 | 7 | NBR | VC2SLA2SS320-NBR |
| 400 | 400 | 395 | 5.6 | 14 | 7 | NBR | VC2SLA2SS400-NBR |
| 500 | 501 | 496 | 5.6 | 14 | 7 | NBR | VC2SLA2SS500-NBR |
| 630 | 651 | 646 | 5.6 | 14 | 7 | NBR | VC2SLA2SS630-NBR |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | EPDM | VC2SLA2SS063-EPDM |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | EPDM | VC2SLA2SS080-EPDM |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | EPDM | VC2SLA2SS100-EPDM |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | EPDM | VC2SLA2SS160-EPDM |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | EPDM | VC2SLA2SS200-EPDM |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | EPDM | VC2SLA2SS250-EPDM |
| 320 | 318 | 313 | 5.6 | 14 | 7 | EPDM | VC2SLA2SS320-EPDM |
| 400 | 400 | 395 | 5.6 | 14 | 7 | EPDM | VC2SLA2SS400-EPDM |
| 500 | 501 | 496 | 5.6 | 14 | 7 | EPDM | VC2SLA2SS500-EPDM |
| 630 | 651 | 646 | 5.6 | 14 | 7 | EPDM | VC2SLA2SS630-EPDM |
| 63 | 70 | 68 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA2SS063-VMQ |
| 80 | 83 | 81 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA2SS080-VMQ |
| 100 | 102 | 100 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA2SS100-VMQ |
| 160 | 153 | 151 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA2SS160-VMQ |
| 200 | 213 | 211 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA2SS200-VMQ |
| 250 | 261 | 259 | 3.9 | 8 | 5.33 | VMQ (SILICON) | VC2SLA2SS250-VMQ |
| 320 | 318 | 313 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA2SS320-VMQ |
| 400 | 400 | 395 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA2SS400-VMQ |
| 500 | 501 | 496 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA2SS500-VMQ |
| 630 | 651 | 646 | 5.6 | 14 | 7 | VMQ (SILICON) | VC2SLA2SS630-VMQ |
