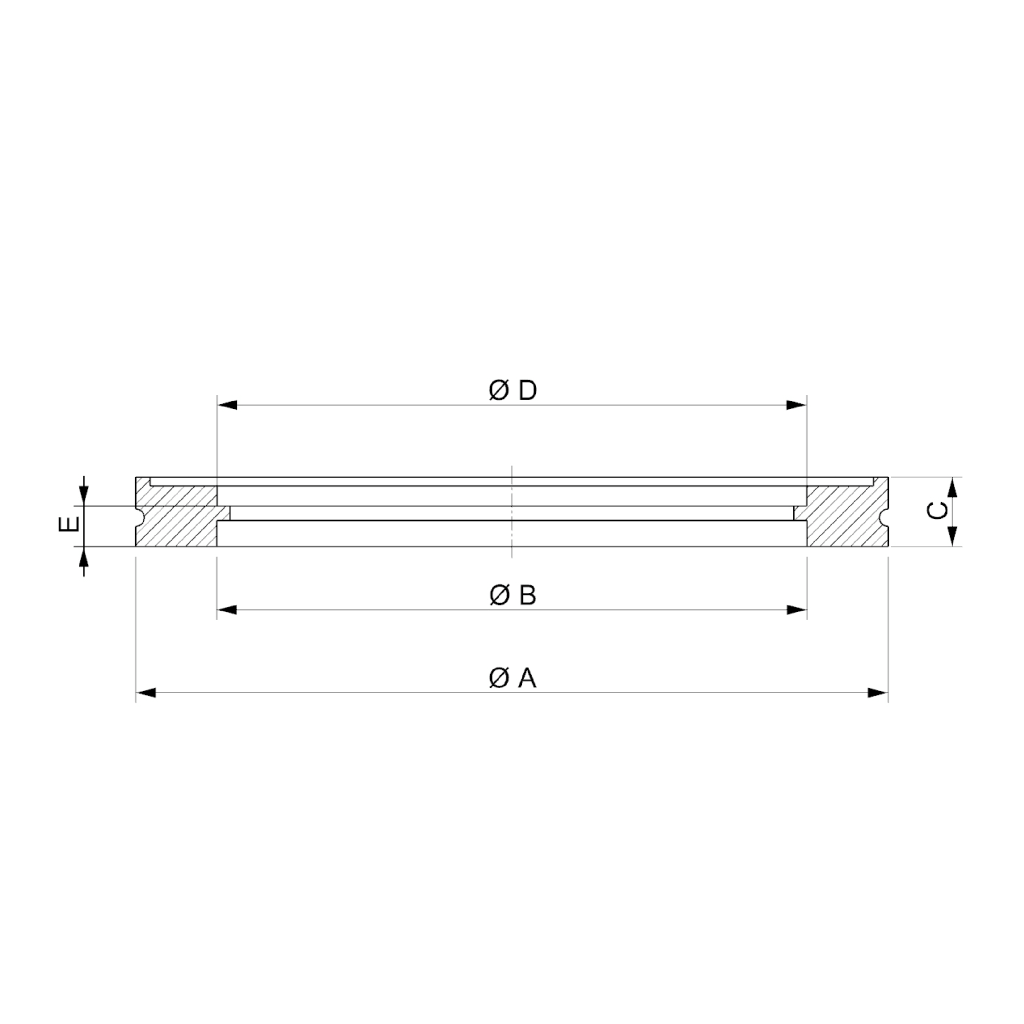

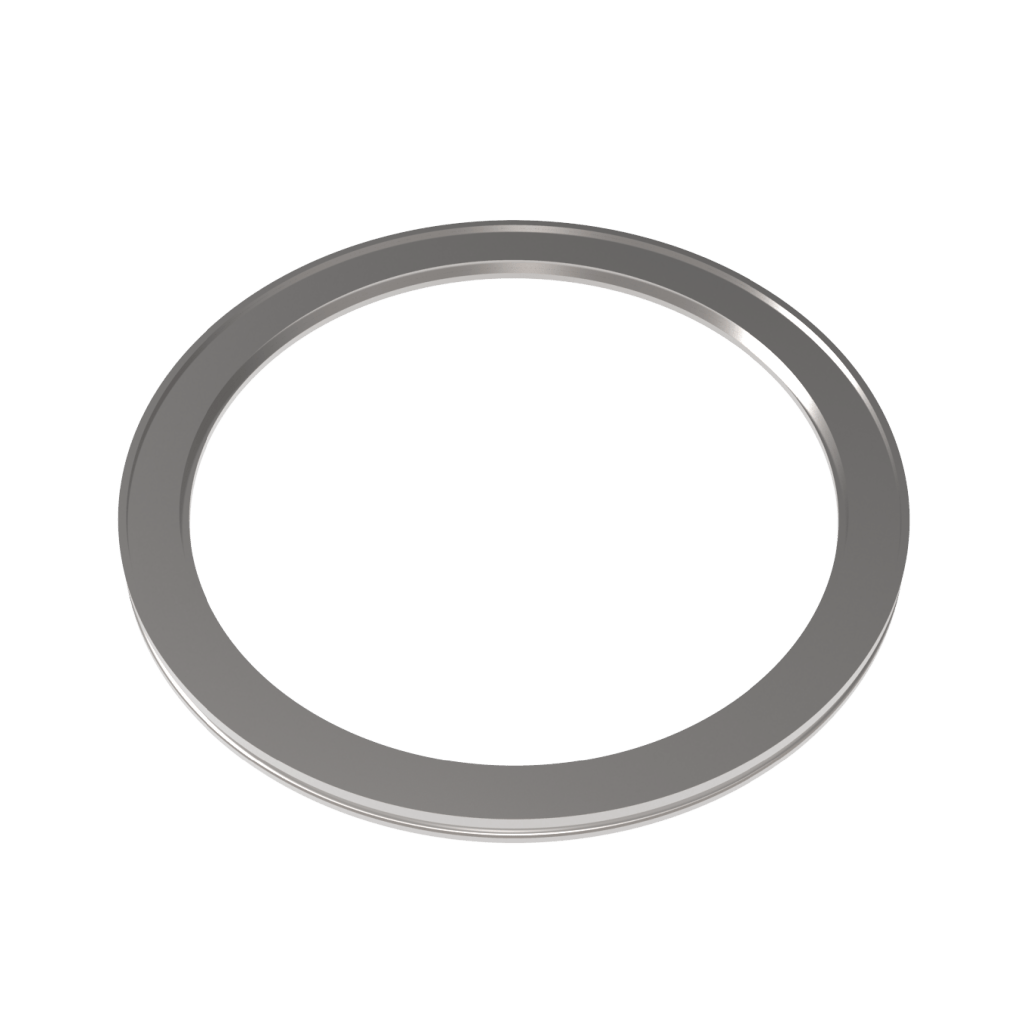

| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Order No |
|---|---|---|---|---|---|---|---|
| 63 | 63.5x1.65 | 95 | 70 | 12 | 63.8 | 7 | VC2FLD1SS063-63 |
| 63 | 70x2 | 95 | 70 | 12 | 70.3 | 7 | VC2FLD1SS063-70 |
| 63 | 76.1x3 | 95 | 70 | 12 | 76.4 | 6 | VC2FLD1SS063-76 |
| 63 | 76.1x3 | 95 | 70 | 12 | 76.4 | 8 | VC2FLD1SS063-76-S |
| 80 | 76.1x3 | 110 | 83 | 12 | 76.4 | 7 | VC2FLD1SS080-76 |
| 80 | 88.9x3 | 110 | 83 | 12 | 89.2 | 6 | VC2FLD1SS080-88 |
| 100 | 101.6x2.1 | 130 | 102 | 12 | 101.9 | 7 | VC2FLD1SS100-101 |
| 100 | 104x2 | 130 | 102 | 12 | 104.3 | 7 | VC2FLD1SS100-104 |
| 100 | 108x3 | 130 | 102 | 12 | 108.3 | 6 | VC2FLD1SS100-108 |
| 100 | 108x3 | 130 | 102 | 12 | 108.3 | 8 | VC2FLD1SS100-108-S |
| 100 | 114.3x2 | 130 | 102 | 12 | 114.6 | 6 | VC2FLD1SS100-114 |
| 160 | 152.4x2.4 | 180 | 153 | 12 | 152.7 | 7 | VC2FLD1SS160-152 |
| 160 | 159x3 | 180 | 153 | 12 | 159.3 | 6 | VC2FLD1SS160-159 |
| 160 | 159x3 | 180 | 153 | 12 | 159.3 | 8 | VC2FLD1SS160-159-S |
| 200 | 203.2x2.4 | 240 | 213 | 12 | 203.6 | 7 | VC2FLD1SS200-203 |
| 200 | 219x3 | 240 | 213 | 12 | 219.4 | 6 | VC2FLD1SS200-219 |
| 200 | 219x3 | 240 | 213 | 12 | 219.4 | 8 | VC2FLD1SS200-219-S |
| 250 | 254x2 | 290 | 261 | 12 | 254.4 | 7 | VC2FLD1SS250-254 |
| 250 | 273x3 | 290 | 261 | 12 | 273.4 | 6 | VC2FLD1SS250-273 |
| 250 | 273x3 | 290 | 261 | 12 | 273.4 | 8 | VC2FLD1SS250-273-S |
| 320 | 324x3 | 370 | 318 | 17 | 324.4 | 8 | VC2FLD1SS320-324 |
| 320 | 324x3 | 370 | 318 | 17 | 324.4 | 10 | VC2FLD1SS320-324-S |
| 400 | 406x3 | 450 | 400 | 17 | 406.5 | 8 | VC2FLD1SS400-406 |
| 500 | 508x4 | 550 | 501 | 17 | 508.5 | 8 | VC2FLD1SS500-508 |
| 630 | 660x5 | 690 | 651 | 22 | 660.5 | 12 | VC2FLD1SS630-660 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Order No |
|---|---|---|---|---|---|---|---|
| 63 | 63.5x1.65 | 95 | 70 | 12 | 63.8 | 7 | VC2FLD2SS063-63 |
| 63 | 70x2 | 95 | 70 | 12 | 70.3 | 7 | VC2FLD2SS063-70 |
| 63 | 76.1x3 | 95 | 70 | 12 | 76.4 | 6 | VC2FLD2SS063-76 |
| 63 | 76.1x3 | 95 | 70 | 12 | 76.4 | 8 | VC2FLD2SS063-76-S |
| 80 | 76.1x3 | 110 | 83 | 12 | 76.4 | 7 | VC2FLD2SS080-76 |
| 80 | 88.9x3 | 110 | 83 | 12 | 89.2 | 6 | VC2FLD2SS080-88 |
| 100 | 101.6x2.1 | 130 | 102 | 12 | 101.9 | 7 | VC2FLD2SS100-101 |
| 100 | 104x2 | 130 | 102 | 12 | 104.3 | 7 | VC2FLD2SS100-104 |
| 100 | 108x3 | 130 | 102 | 12 | 108.3 | 6 | VC2FLD2SS100-108 |
| 100 | 108x3 | 130 | 102 | 12 | 108.3 | 8 | VC2FLD2SS100-108-S |
| 100 | 114.3x2 | 130 | 102 | 12 | 114.6 | 6 | VC2FLD2SS100-114 |
| 160 | 152.4x2.4 | 180 | 153 | 12 | 152.7 | 7 | VC2FLD2SS160-152 |
| 160 | 159x3 | 180 | 153 | 12 | 159.3 | 6 | VC2FLD2SS160-159 |
| 160 | 159x3 | 180 | 153 | 12 | 159.3 | 8 | VC2FLD2SS160-159-S |
| 200 | 203.2x2.4 | 240 | 213 | 12 | 203.6 | 7 | VC2FLD2SS200-203 |
| 200 | 219x3 | 240 | 213 | 12 | 219.4 | 6 | VC2FLD2SS200-219 |
| 200 | 219x3 | 240 | 213 | 12 | 219.4 | 8 | VC2FLD2SS200-219-S |
| 250 | 254x2 | 290 | 261 | 12 | 254.4 | 7 | VC2FLD2SS250-254 |
| 250 | 273x3 | 290 | 261 | 12 | 273.4 | 6 | VC2FLD2SS250-273 |
| 250 | 273x3 | 290 | 261 | 12 | 273.4 | 8 | VC2FLD2SS250-273-S |
| 320 | 324x3 | 370 | 318 | 17 | 324.4 | 8 | VC2FLD2SS320-324 |
| 320 | 324x3 | 370 | 318 | 17 | 324.4 | 10 | VC2FLD2SS320-324-S |
| 400 | 406x3 | 450 | 400 | 17 | 406.5 | 8 | VC2FLD2SS400-406 |
| 500 | 508x4 | 550 | 501 | 17 | 508.5 | 8 | VC2FLD2SS500-508 |
| 630 | 660x5 | 690 | 651 | 22 | 660.5 | 12 | VC2FLD2SS630-660 |
