Tell us what your vacuum system needs — we’ll prepare the right solution.

Request a quotation from Anadolu Vacuum for standard vacuum components, custom-engineered parts, UHV chambers, flanges, fittings, and complete vacuum solutions. Share your technical requirements, drawings, quantities, or project details, and our team will evaluate your request with precision, speed, and engineering-focused support.

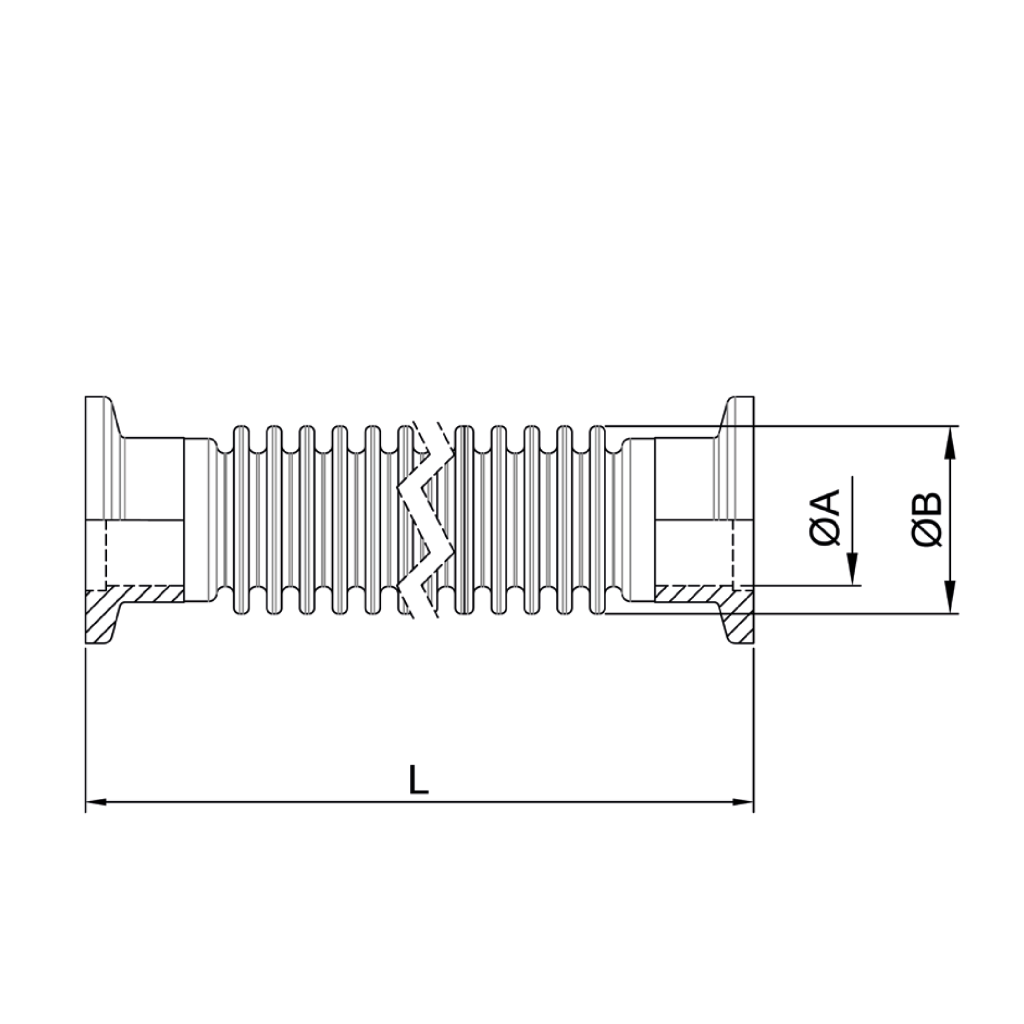

ISO-KF Flexible Hose
ISO-KF Flexible Hose
Selected Product
ISO-KF Flexible Hose
View Product Page
Available Variants
Stainless Steel 304 / 1.4301
Size (DN) L (mm) A (mm) B (mm) Bending radius movement (mm) One-Time Bending Radius / Frequent Movement (mm) Order No
10 250 10 16 17 100 VC1HSA1SS010-250
10 500 10 16 17 100 VC1HSA1SS010-500
10 750 10 16 17 100 VC1HSA1SS010-750
10 1000 10 16 17 100 VC1HSA1SS010-1000
10 1500 10 16 17 100 VC1HSA1SS010-1500
16 250 16 23 26 140 VC1HSA1SS016-250
16 500 16 23 26 140 VC1HSA1SS016-500
16 750 16 23 26 140 VC1HSA1SS016-750
16 1000 16 23 26 140 VC1HSA1SS016-1000
16 1500 16 23 26 140 VC1HSA1SS016-1500
25 250 24 33 38 180 VC1HSA1SS025-250
25 500 24 33 38 180 VC1HSA1SS025-500
25 750 24 33 38 180 VC1HSA1SS025-750
25 1000 24 33 38 180 VC1HSA1SS025-1000
25 1500 24 33 38 180 VC1HSA1SS025-1500
40 250 40.5 52 59 240 VC1HSA1SS040-250
40 500 40.5 52 59 240 VC1HSA1SS040-500
40 750 40.5 52 59 240 VC1HSA1SS040-750
40 1000 40.5 52 59 240 VC1HSA1SS040-1000
40 1500 40.5 52 59 240 VC1HSA1SS040-1500
50 250 50 63 72 280 VC1HSA1SS050-250
50 500 50 63 72 280 VC1HSA1SS050-500
50 750 50 63 72 280 VC1HSA1SS050-750
50 1000 50 63 72 280 VC1HSA1SS050-1000
50 1500 50 63 72 280 VC1HSA1SS050-1500
Stainless Steel 316L / 1.4404
Size (DN) L (mm) A (mm) B (mm) Bending radius movement (mm) One-Time Bending Radius / Frequent Movement (mm) Order No
10 250 10 16 17 100 VC1HSA2SS010-250
10 500 10 16 17 100 VC1HSA2SS010-500
10 750 10 16 17 100 VC1HSA2SS010-750
10 1000 10 16 17 100 VC1HSA2SS010-1000
10 1500 10 16 17 100 VC1HSA2SS010-1500
16 250 16 23 26 140 VC1HSA2SS016-250
16 500 16 23 26 140 VC1HSA2SS016-500
16 750 16 23 26 140 VC1HSA2SS016-750
16 1000 16 23 26 140 VC1HSA2SS016-1000
16 1500 16 23 26 140 VC1HSA2SS016-1500
25 250 24 33 38 180 VC1HSA2SS025-250
25 500 24 33 38 180 VC1HSA2SS025-500
25 750 24 33 38 180 VC1HSA2SS025-750
25 1000 24 33 38 180 VC1HSA2SS025-1000
25 1500 24 33 38 180 VC1HSA2SS025-1500
40 250 40.5 52 59 240 VC1HSA2SS040-250
40 500 40.5 52 59 240 VC1HSA2SS040-500
40 750 40.5 52 59 240 VC1HSA2SS040-750
40 1000 40.5 52 59 240 VC1HSA2SS040-1000
40 1500 40.5 52 59 240 VC1HSA2SS040-1500
50 250 50 63 72 280 VC1HSA2SS050-250
50 500 50 63 72 280 VC1HSA2SS050-500
50 750 50 63 72 280 VC1HSA2SS050-750
50 1000 50 63 72 280 VC1HSA2SS050-1000
50 1500 50 63 72 280 VC1HSA2SS050-1500
