Tell us what your vacuum system needs — we’ll prepare the right solution.

Request a quotation from Anadolu Vacuum for standard vacuum components, custom-engineered parts, UHV chambers, flanges, fittings, and complete vacuum solutions. Share your technical requirements, drawings, quantities, or project details, and our team will evaluate your request with precision, speed, and engineering-focused support.

ISO-KF Short Half Flange
ISO-KF Short Half Flange
Selected Product
ISO-KF Short Half Flange
View Product Page
Available Variants
Aluminium EN AW-6082 / 3.2315

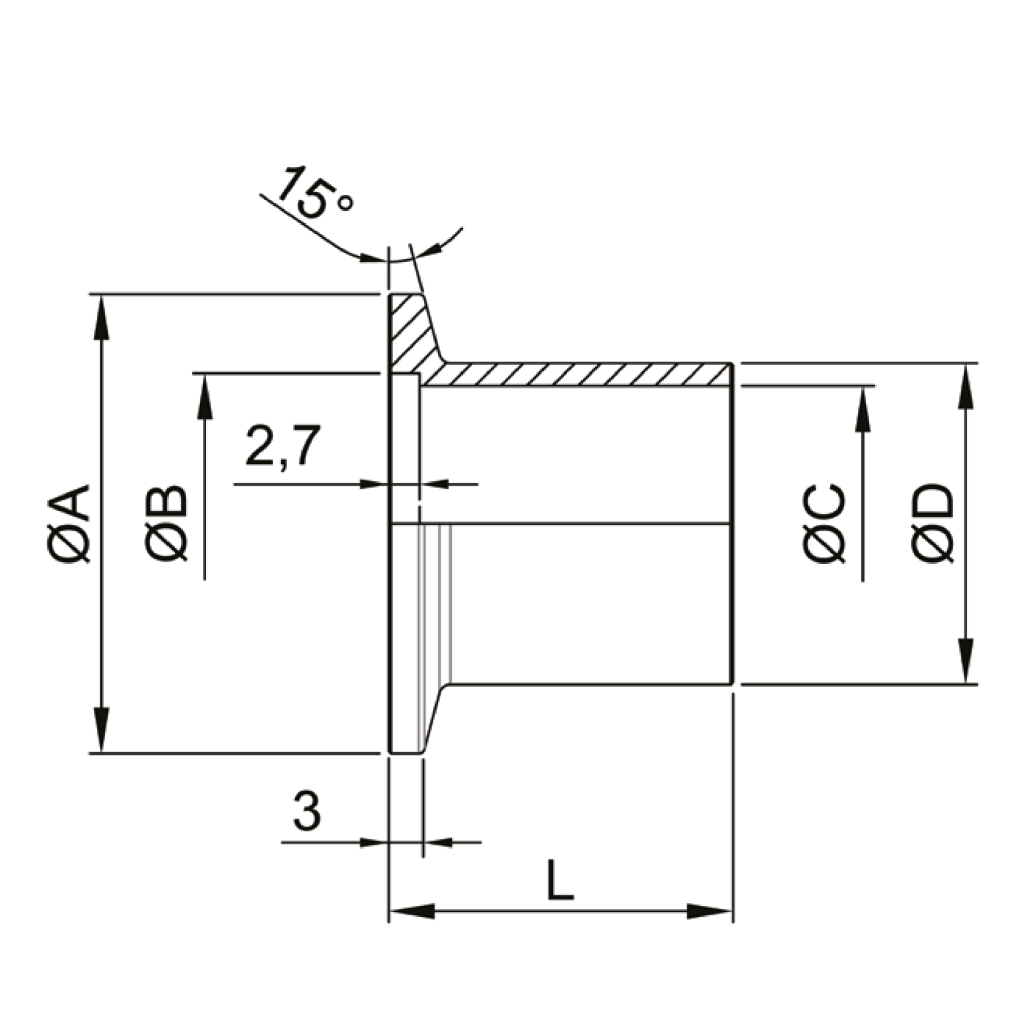

Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
10 14X2 30 12.2 10 14 10 VC1FLA1AL010-14-10
10 14X2 30 12.2 10 14 20 VC1FLA1AL010-14-20
10 14X2 30 12.2 10 14 30 VC1FLA1AL010-14-30
16 20X2 30 17.2 16 20 10 VC1FLA1AL016-20-10
16 20X2 30 17.2 16 20 20 VC1FLA1AL016-20-20
16 20X2 30 17.2 16 20 30 VC1FLA1AL016-20-30
20 25X2 40 22.2 21 25 10 VC1FLA1AL020-25-10
20 25X2 40 22.2 21 25 20 VC1FLA1AL020-25-20
20 25X2 40 22.2 21 25 30 VC1FLA1AL020-25-30
25 28X2 40 26.2 24 28 10 VC1FLA1AL025-28-10
25 28X2 40 26.2 24 28 20 VC1FLA1AL025-28-20
25 28X2 40 26.2 24 28 30 VC1FLA1AL025-28-30
32 38X2 55 34.2 34 38 10 VC1FLA1AL032-38-10
32 38X2 55 34.2 34 38 20 VC1FLA1AL032-38-20
32 38X2 55 34.2 34 38 30 VC1FLA1AL032-38-30
40 44.5X2 55 41.2 40.5 44.5 10 VC1FLA1AL040-44-10
40 44.5X2 55 41.2 40.5 44.5 20 VC1FLA1AL040-44-20
40 44.5X2 55 41.2 40.5 44.5 30 VC1FLA1AL040-44-30
50 57X3.2 75 52.2 50.6 57 10 VC1FLA1AL050-57-10
50 57X3.2 75 52.2 50.6 57 20 VC1FLA1AL050-57-20
50 57X3.2 75 52.2 50.6 57 30 VC1FLA1AL050-57-30
Stainless Steel 304 / 1.4301
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
10 14X2 30 12.2 10 14 10 VC1FLA1SS010-14-10
10 14X2 30 12.2 10 14 20 VC1FLA1SS010-14-20
10 14X2 30 12.2 10 14 30 VC1FLA1SS010-14-30
16 20X2 30 17.2 16 20 10 VC1FLA1SS016-20-10
16 20X2 30 17.2 16 20 20 VC1FLA1SS016-20-20
16 20X2 30 17.2 16 20 30 VC1FLA1SS016-20-30
20 25X2 40 22.2 21 25 10 VC1FLA1SS020-25-10
20 25X2 40 22.2 21 25 20 VC1FLA1SS020-25-20
20 25X2 40 22.2 21 25 30 VC1FLA1SS020-25-30
25 28X2 40 26.2 24 28 10 VC1FLA1SS025-28-10
25 28X2 40 26.2 24 28 20 VC1FLA1SS025-28-20
25 28X2 40 26.2 24 28 30 VC1FLA1SS025-28-30
32 38X2 55 34.2 34 38 10 VC1FLA1SS032-38-10
32 38X2 55 34.2 34 38 20 VC1FLA1SS032-38-20
32 38X2 55 34.2 34 38 30 VC1FLA1SS032-38-30
40 44.5X2 55 41.2 40.5 44.5 10 VC1FLA1SS040-44-10
40 44.5X2 55 41.2 40.5 44.5 20 VC1FLA1SS040-44-20
40 44.5X2 55 41.2 40.5 44.5 30 VC1FLA1SS040-44-30
50 57X3.2 75 52.2 50.6 57 10 VC1FLA1SS050-57-10
50 57X3.2 75 52.2 50.6 57 20 VC1FLA1SS050-57-20
50 57X3.2 75 52.2 50.6 57 30 VC1FLA1SS050-57-30
Stainless Steel 316L / 1.4404
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
10 14X2 30 12.2 10 14 10 VC1FLA2SS010-14-10
10 14X2 30 12.2 10 14 20 VC1FLA2SS010-14-20
10 14X2 30 12.2 10 14 30 VC1FLA2SS010-14-30
16 20X2 30 17.2 16 20 10 VC1FLA2SS016-20-10
16 20X2 30 17.2 16 20 20 VC1FLA2SS016-20-20
16 20X2 30 17.2 16 20 30 VC1FLA2SS016-20-30
20 25X2 40 22.2 21 25 10 VC1FLA2SS020-25-10
20 25X2 40 22.2 21 25 20 VC1FLA2SS020-25-20
20 25X2 40 22.2 21 25 30 VC1FLA2SS020-25-30
25 28X2 40 26.2 24 28 10 VC1FLA2SS025-28-10
25 28X2 40 26.2 24 28 20 VC1FLA2SS025-28-20
25 28X2 40 26.2 24 28 30 VC1FLA2SS025-28-30
32 38X2 55 34.2 34 38 10 VC1FLA2SS032-38-10
32 38X2 55 34.2 34 38 20 VC1FLA2SS032-38-20
32 38X2 55 34.2 34 38 30 VC1FLA2SS032-38-30
40 44.5X2 55 41.2 40.5 44.5 10 VC1FLA2SS040-44-10
40 44.5X2 55 41.2 40.5 44.5 20 VC1FLA2SS040-44-20
40 44.5X2 55 41.2 40.5 44.5 30 VC1FLA2SS040-44-30
50 57X3.2 75 52.2 50.6 57 10 VC1FLA2SS050-57-10
50 57X3.2 75 52.2 50.6 57 20 VC1FLA2SS050-57-20
50 57X3.2 75 52.2 50.6 57 30 VC1FLA2SS050-57-30
