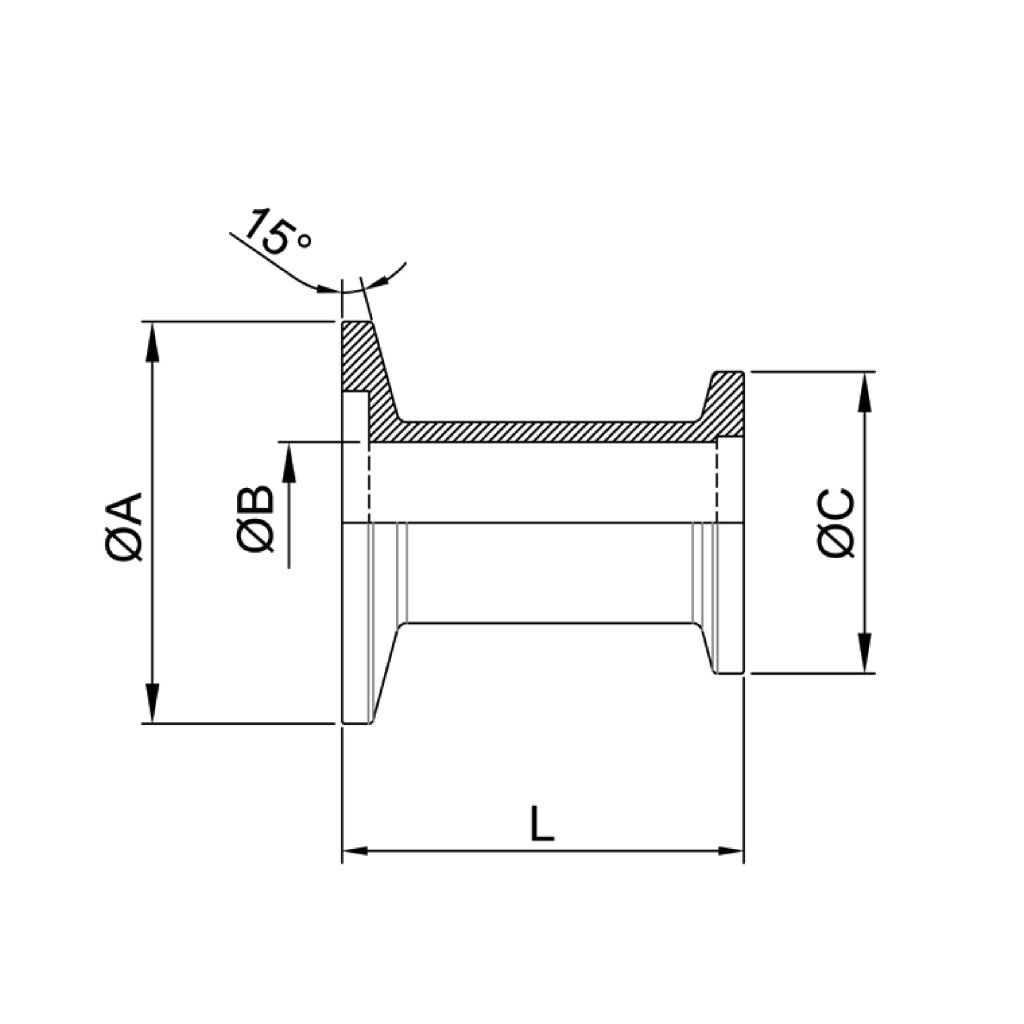

| Flange Size (DN) | Reducer Flange Size (DN) | A (mm) | B (mm) | C (mm) | L (mm) | Order No |
|---|---|---|---|---|---|---|
| 25 | 10 | 40 | 10 | 30 | 28 | VC1FTA1AL025-010-28 |
| 25 | 10 | 40 | 10 | 30 | 40 | VC1FTA1AL025-010-40 |
| 25 | 16 | 40 | 16 | 30 | 28 | VC1FTA1AL025-016-28 |
| 25 | 16 | 40 | 16 | 30 | 40 | VC1FTA1AL025-016-40 |
| 40 | 16 | 55 | 16 | 30 | 28 | VC1FTA1AL040-016-28 |
| 40 | 16 | 55 | 16 | 30 | 40 | VC1FTA1AL040-016-40 |
| 40 | 25 | 55 | 24 | 40 | 28 | VC1FTA1AL040-025-28 |
| 40 | 25 | 55 | 24 | 40 | 40 | VC1FTA1AL040-025-40 |
| 50 | 16 | 75 | 16 | 30 | 28 | VC1FTA1AL050-016-28 |
| 50 | 16 | 75 | 16 | 30 | 40 | VC1FTA1AL050-016-40 |
| 50 | 25 | 75 | 24 | 40 | 28 | VC1FTA1AL050-025-28 |
| 50 | 25 | 75 | 24 | 40 | 40 | VC1FTA1AL050-025-40 |
| 50 | 40 | 75 | 40 | 55 | 28 | VC1FTA1AL050-040-28 |
| 50 | 40 | 75 | 40 | 55 | 40 | VC1FTA1AL050-040-40 |
| Flange Size (DN) | Reducer Flange Size (DN) | A (mm) | B (mm) | C (mm) | L (mm) | Order No |
|---|---|---|---|---|---|---|
| 25 | 10 | 40 | 10 | 30 | 28 | VC1FTA1SS025-010-28 |
| 25 | 10 | 40 | 10 | 30 | 40 | VC1FTA1SS025-010-40 |
| 25 | 16 | 40 | 16 | 30 | 28 | VC1FTA1SS025-016-28 |
| 25 | 16 | 40 | 16 | 30 | 40 | VC1FTA1SS025-016-40 |
| 40 | 16 | 55 | 16 | 30 | 28 | VC1FTA1SS040-016-28 |
| 40 | 16 | 55 | 16 | 30 | 40 | VC1FTA1SS040-016-40 |
| 40 | 25 | 55 | 24 | 40 | 28 | VC1FTA1SS040-025-28 |
| 40 | 25 | 55 | 24 | 40 | 40 | VC1FTA1SS040-025-40 |
| 50 | 16 | 75 | 16 | 30 | 28 | VC1FTA1SS050-016-28 |
| 50 | 16 | 75 | 16 | 30 | 40 | VC1FTA1SS050-016-40 |
| 50 | 25 | 75 | 24 | 40 | 28 | VC1FTA1SS050-025-28 |
| 50 | 25 | 75 | 24 | 40 | 40 | VC1FTA1SS050-025-40 |
| 50 | 40 | 75 | 40 | 55 | 28 | VC1FTA1SS050-040-28 |
| 50 | 40 | 75 | 40 | 55 | 40 | VC1FTA1SS050-040-40 |
| Flange Size (DN) | Reducer Flange Size (DN) | A (mm) | B (mm) | C (mm) | L (mm) | Order No |
|---|---|---|---|---|---|---|
| 25 | 10 | 40 | 10 | 30 | 28 | VC1FTA2SS025-010-28 |
| 25 | 10 | 40 | 10 | 30 | 40 | VC1FTA2SS025-010-40 |
| 25 | 16 | 40 | 16 | 30 | 28 | VC1FTA2SS025-016-28 |
| 25 | 16 | 40 | 16 | 30 | 40 | VC1FTA2SS025-016-40 |
| 40 | 16 | 55 | 16 | 30 | 28 | VC1FTA2SS040-016-28 |
| 40 | 16 | 55 | 16 | 30 | 40 | VC1FTA2SS040-016-40 |
| 40 | 25 | 55 | 24 | 40 | 28 | VC1FTA2SS040-025-28 |
| 40 | 25 | 55 | 24 | 40 | 40 | VC1FTA2SS040-025-40 |
| 50 | 16 | 75 | 16 | 30 | 28 | VC1FTA2SS050-016-28 |
| 50 | 16 | 75 | 16 | 30 | 40 | VC1FTA2SS050-016-40 |
| 50 | 25 | 75 | 24 | 40 | 28 | VC1FTA2SS050-025-28 |
| 50 | 25 | 75 | 24 | 40 | 40 | VC1FTA2SS050-025-40 |
| 50 | 40 | 75 | 40 | 55 | 28 | VC1FTA2SS050-040-28 |
| 50 | 40 | 75 | 40 | 55 | 40 | VC1FTA2SS050-040-40 |
