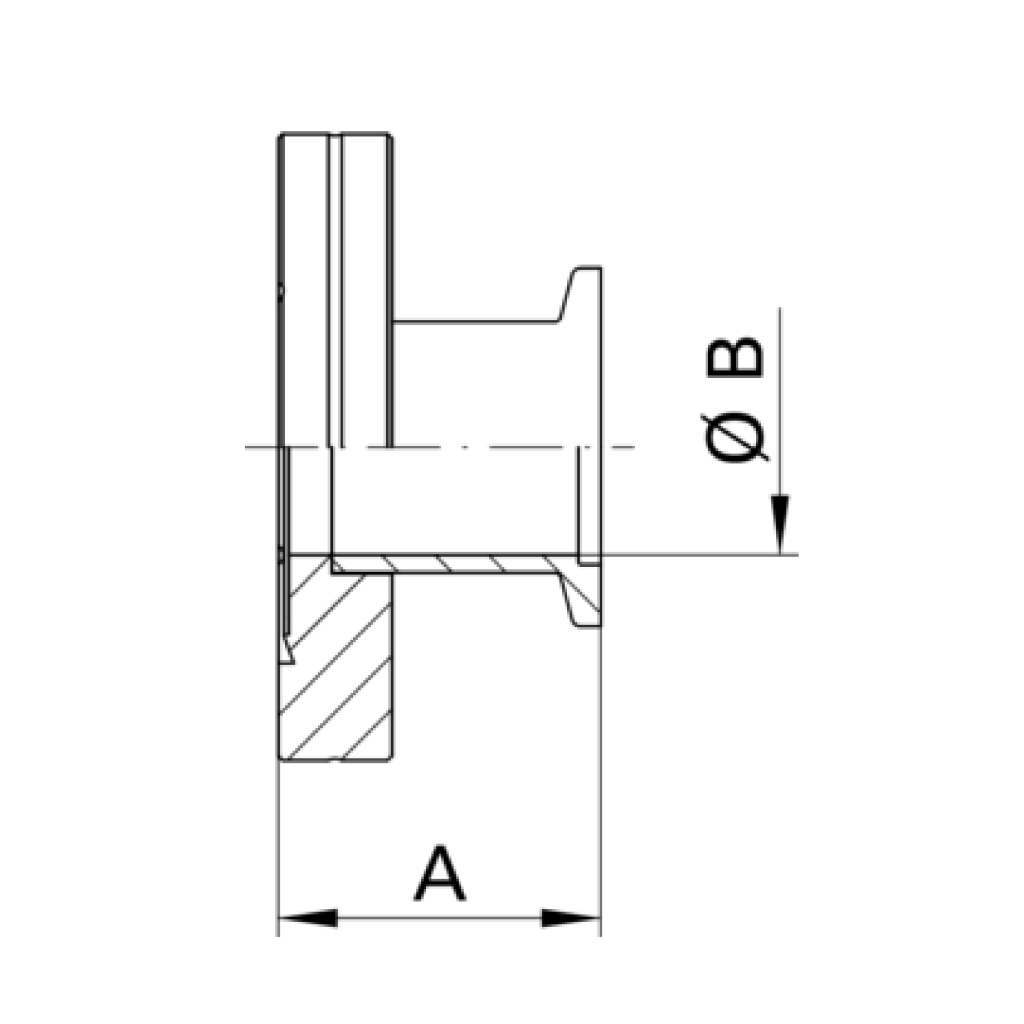

| Nominal Diameter Reduced (DN-KF) | Size (DN-CF) | A (mm) | B (mm) | Order No |
|---|---|---|---|---|
| 16 | 36 | 16 | 16 | VC1ADK1SS016-016-36 |
| 16 | 36 | 16 | 25 | VC1ADK1SS016-025-36 |
| 16 | 36 | 16 | 40 | VC1ADK1SS016-040-36 |
| 40 | 36 | 16 | 16 | VC1ADK1SS040-016-36 |
| 40 | 36 | 24 | 25 | VC1ADK1SS040-025-36 |
| 40 | 50 | 40.5 | 40 | VC1ADK1SS040-040-50 |
| 63 | 50 | 40.5 | 40 | VC1ADK1SS063-040-50 |
| 100 | 50 | 40.5 | 40 | VC1ADK1SS100-040-50 |
| Nominal Diameter Reduced (DN-KF) | Size (DN-CF) | A (mm) | B (mm) | Order No |
|---|---|---|---|---|
| 16 | 36 | 16 | 16 | VC1ADK2SS016-016-36 |
| 16 | 36 | 16 | 25 | VC1ADK2SS016-025-36 |
| 16 | 36 | 16 | 40 | VC1ADK2SS016-040-36 |
| 40 | 36 | 16 | 16 | VC1ADK2SS040-016-36 |
| 40 | 36 | 24 | 25 | VC1ADK2SS040-025-36 |
| 40 | 50 | 40.5 | 40 | VC1ADK2SS040-040-50 |
| 63 | 50 | 40.5 | 40 | VC1ADK2SS063-040-50 |
| 100 | 50 | 40.5 | 40 | VC1ADK2SS100-040-50 |
