| Field | Data |
|---|---|

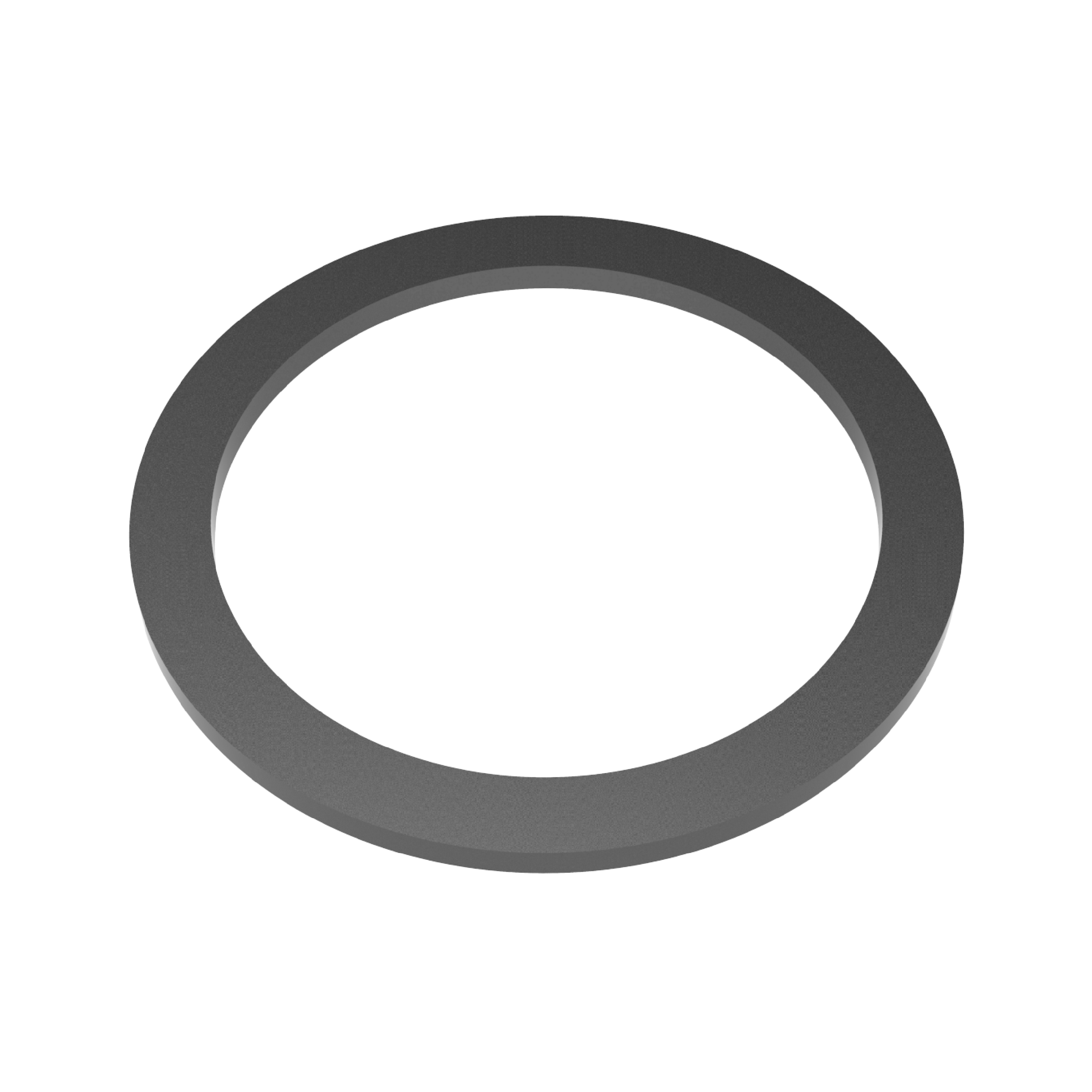

| Product Name | CF Elastomer Gasket |
| System | CF |
| Product Type | Elastomer Gasket |
| Gasket Profile | Flat cross-section |
| Reusability | Reusable |
| Application Type | Non-critical, non-UHV applications |
| Special Use Note | Especially suitable for applications requiring recurrent reassembly |
| Material | FKM |
| Pressure Range | 1 × 10⁻⁸ hPa to ambient pressure |
| Temperature Range | Catalog summary lists -15 to 150 °C; FKM section lists -15 to 200 °C |
| Available Sizes (DN) | 16, 25, 40, 50, 63, 100, 160, 200, 250 |

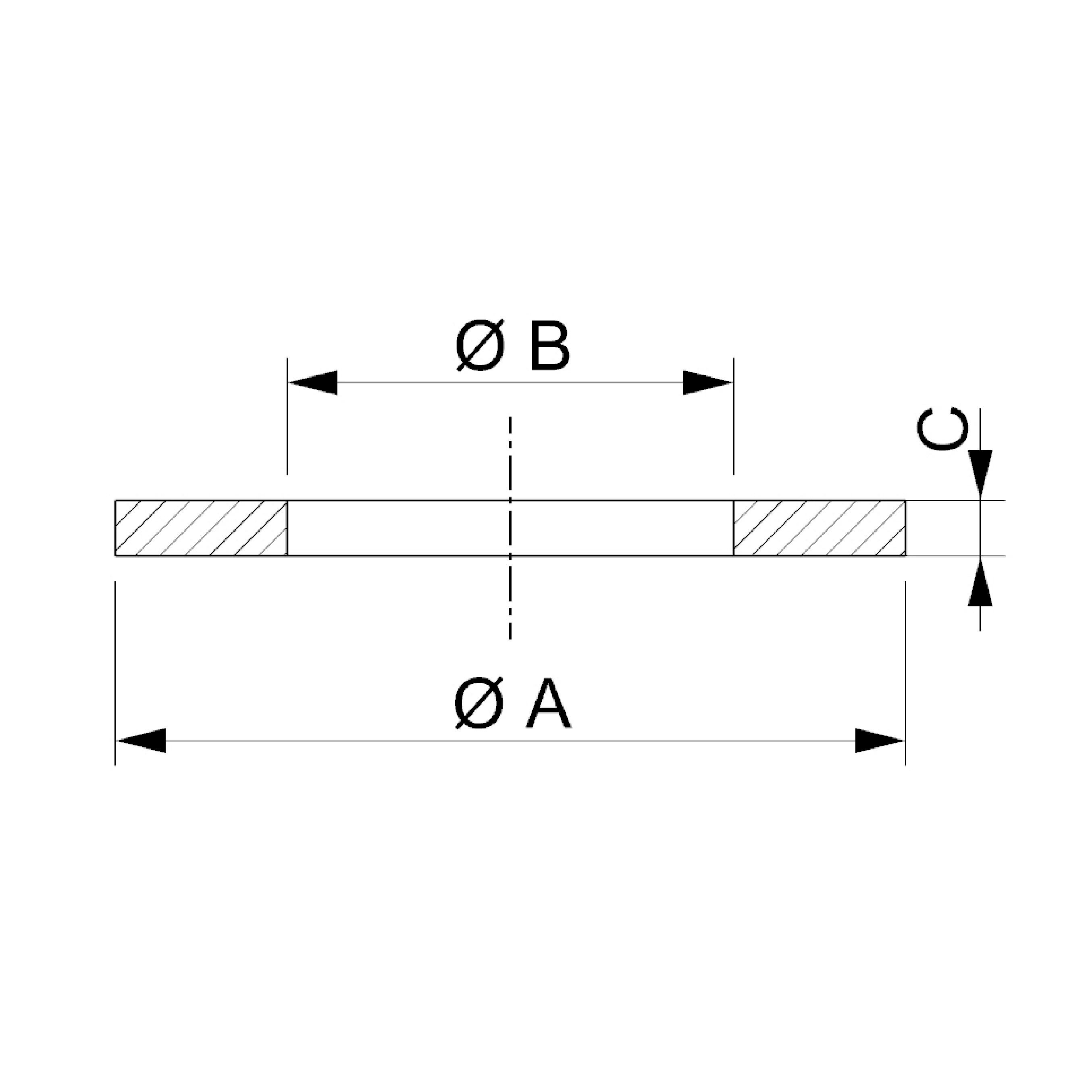

| Main Dimensions | A, B, C |
