| Field | Data |
|---|---|
| Product Name | CF Spacer Flange with Bore Holes |
| System | CF |
| Product Type | Spacer Flange with Bore Holes |
| Pressure Range | 1 × 10⁻¹² mbar to ambient pressure |
| Custom Lengths | Available upon request |
| Bake-Out Range | Up to 500 °C |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Available Sizes (DN) | 16, 40, 63, 100, 160 |

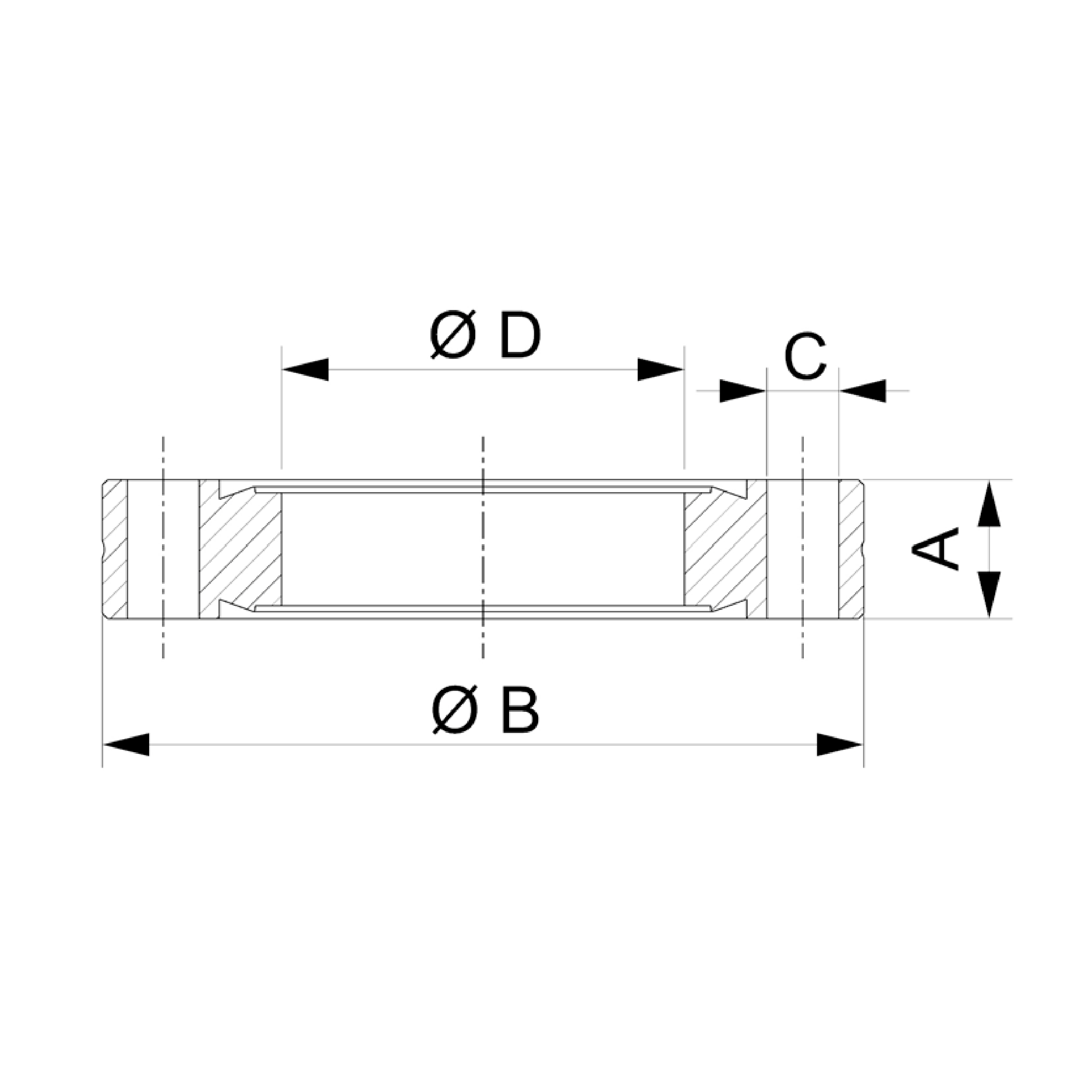

| Main Dimensions | A, B, C, D |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
