| Field | Data |
|---|---|

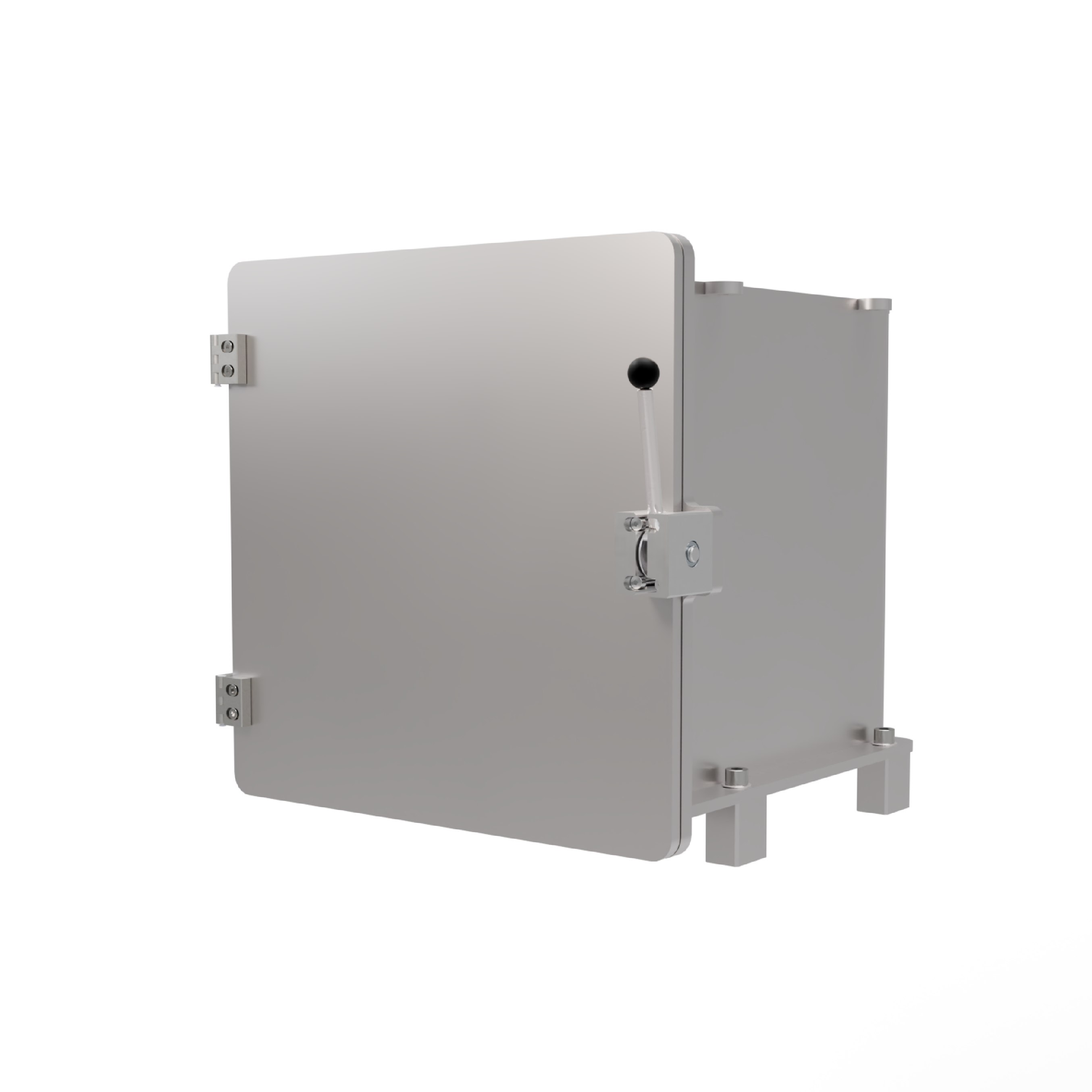

| Product Name | High Vacuum Chamber, Cubical |
| Product Type | High Vacuum Chamber |
| Chamber Shape | Cubical |
| Material | Stainless Steel 304 / 1.4301 |
| Chamber Construction | Cubical chamber body |
| Door Design | Door with hinges, locking mechanism and FKM seal |
| Surface Finish | Inside and outside glass bead blasted |
| Mounting Features | Chamber with foot-plates and ring bolts |
| Feet | Available separately |
| Chamber Ports | Available |
| Quality Control | Helium leak test performed for quality assurance |
| Ultimate Pressure / Vacuum Level | 1 × 10⁻⁷ hPa |
| Operating Temperature Range | -15 to 150 °C |
| Tightness | < 1 × 10⁻⁹ Pa m³/s |
| Material Temperature Range | -196 to 300 °C |
