| Field | Data |
|---|---|
| Product Name | High Vacuum Chamber, Horizontal |
| Product Type | High Vacuum Chamber |
| Chamber Orientation | Horizontal |
| Chamber Shape | Cylindrical |
| Material | Stainless Steel 304 / 1.4301 |

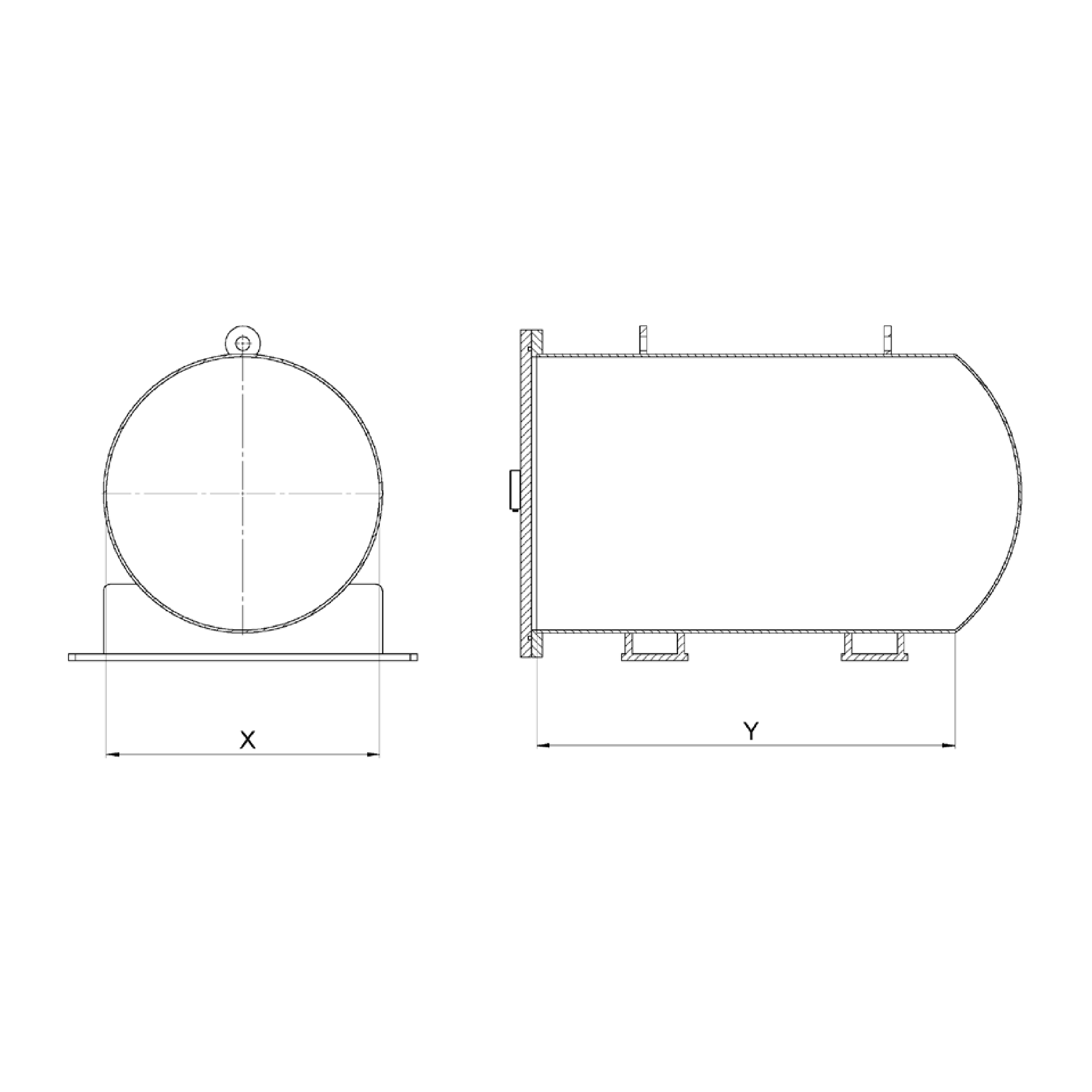

| Chamber Construction | Cylindrical, horizontal chamber body; back side welded dished end |
| Door Design | Stainless steel door with hinges, quick clamps and FKM-door seal |
| Surface Finish | Inside and outside glass bead blasted |
| Mounting Features | Chamber with foot-plates and ring bolts |
| Feet | Available separately |
| Chamber Ports | Available |
| Quality Control | Helium leak test performed for quality assurance |
| Ultimate Pressure / Vacuum Level | 1 × 10⁻⁷ hPa |
| Operating Temperature Range | -15 to 150 °C |
| Tightness | < 1 × 10⁻⁹ Pa m³/s |
| Material Temperature Range | -196 to 300 °C |
