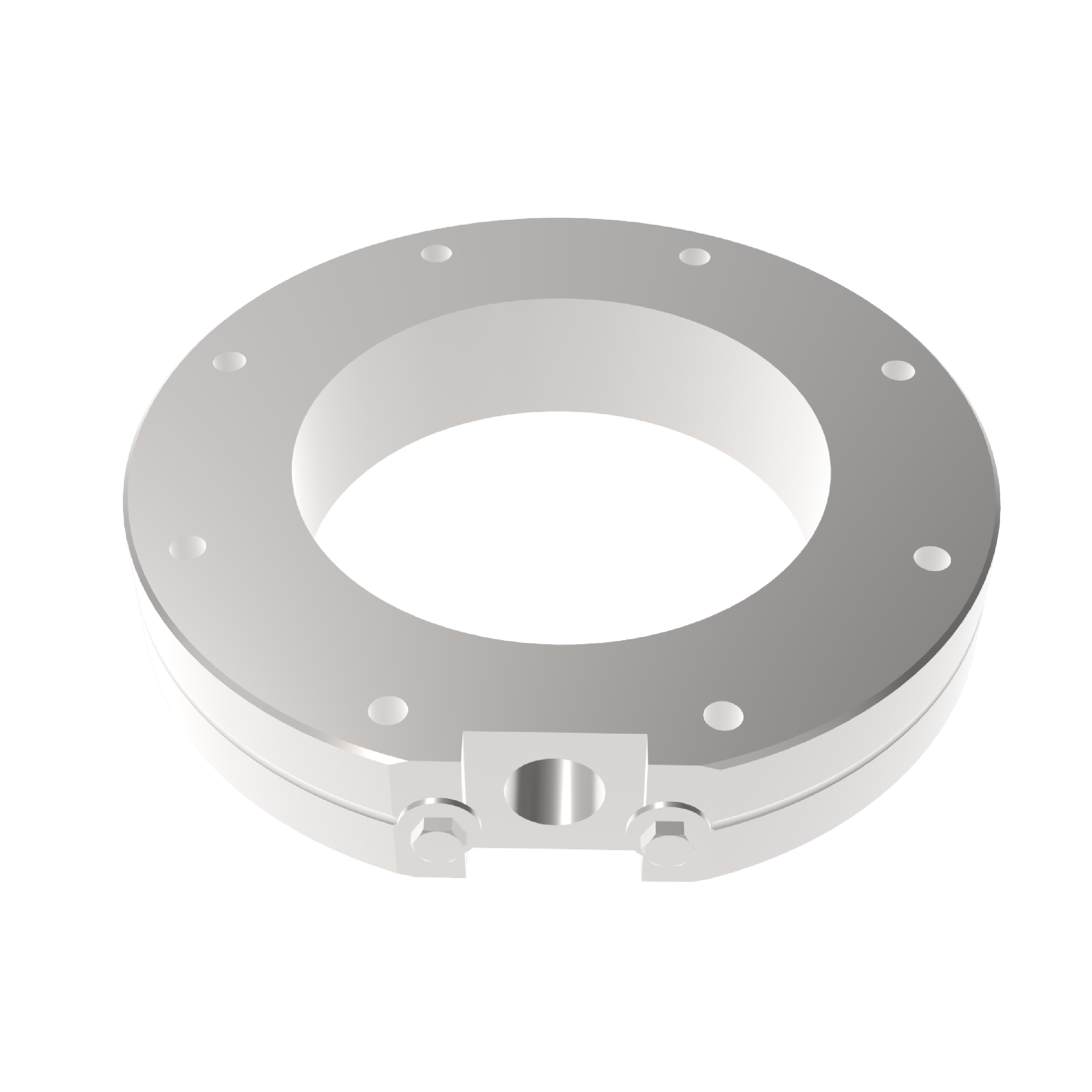

ISO-F Measurement Flange

Description

The ISO-F Measurement Flange is listed on page 103 of the catalog as a flange suitable for application with elastomer seal. The visible catalog text shows a pressure range of 1 × 10⁻⁸ mbar to 1.5 bar, lists the materials as Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404, and notes “Temperature range: Consider O-ring temperature ranges.” The available extract for this page is truncated, so only the clearly visible product information below can be extracted with confidence.

Field Data
Product Name ISO-F Measurement Flange
System ISO-F
Product Type Measurement Flange
Seal Compatibility Suitable for application with elastomer seal
Pressure Range 1 × 10⁻⁸ mbar to 1.5 bar
Materials Listed Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Temperature Note Consider O-ring temperature ranges
Size (DN) A (mm) B (mm) C Order No
63 35 130 4 x M8 VC3FLC1AL063
80 35 145 8 x M8 VC3FLC1AL080
100 35 165 8 x M8 VC3FLC1AL100

Size (DN) A (mm) B (mm) C
63 35 130 4 x M8
80 35 145 8 x M8
100 35 165 8 x M8

Download Datasheet from here
