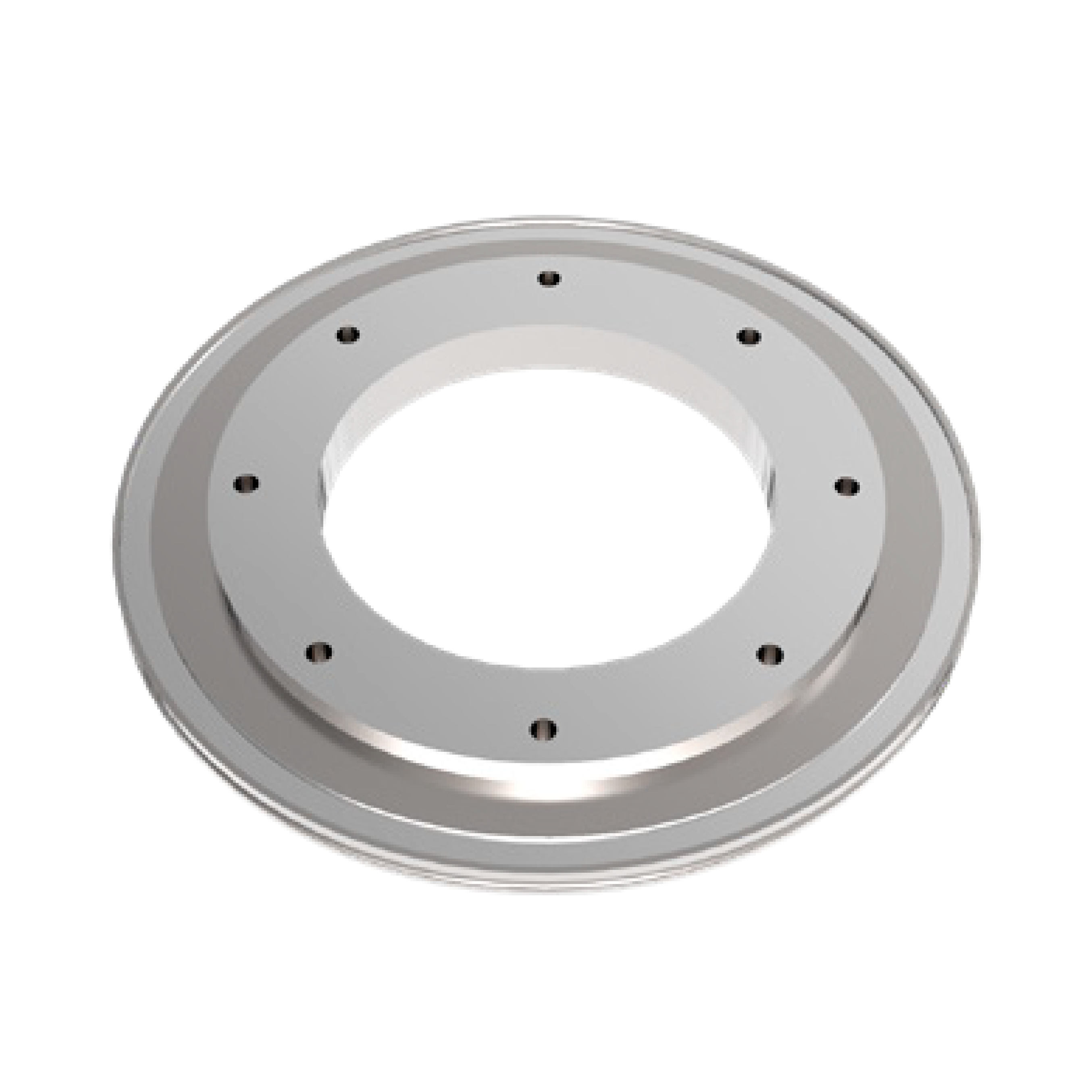

ISO-K to ISO-F Adapter Flange

ISO-K to ISO-F Adapter Flange

Categories , ,

Description

The ISO-K to ISO-F Adapter Flange is designed to connect ISO-K flange sizes to ISO-F reduced nominal diameters in vacuum systems where two different flange standards must be joined reliably. The catalog lists this product with a pressure range of 1 × 10⁻⁸ mbar to 500 mbar over pressure for elastomer seal and 1 × 10⁻⁹ mbar to 500 mbar over pressure for metal seal. It is available in Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404.

Request a Quote
Field Data
Product Name ISO-K to ISO-F Adapter Flange
System ISO-K to ISO-F
Product Type Adapter Flange
Function Connects ISO-K flange sizes to ISO-F reduced nominal diameters
Pressure Range - Elastomer Seal 1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Metal Seal 1 × 10⁻⁹ mbar to 500 mbar over pressure
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Sizes (DN) 160, 200, 250
Available Reduced Nominal Diameters 63, 100, 160

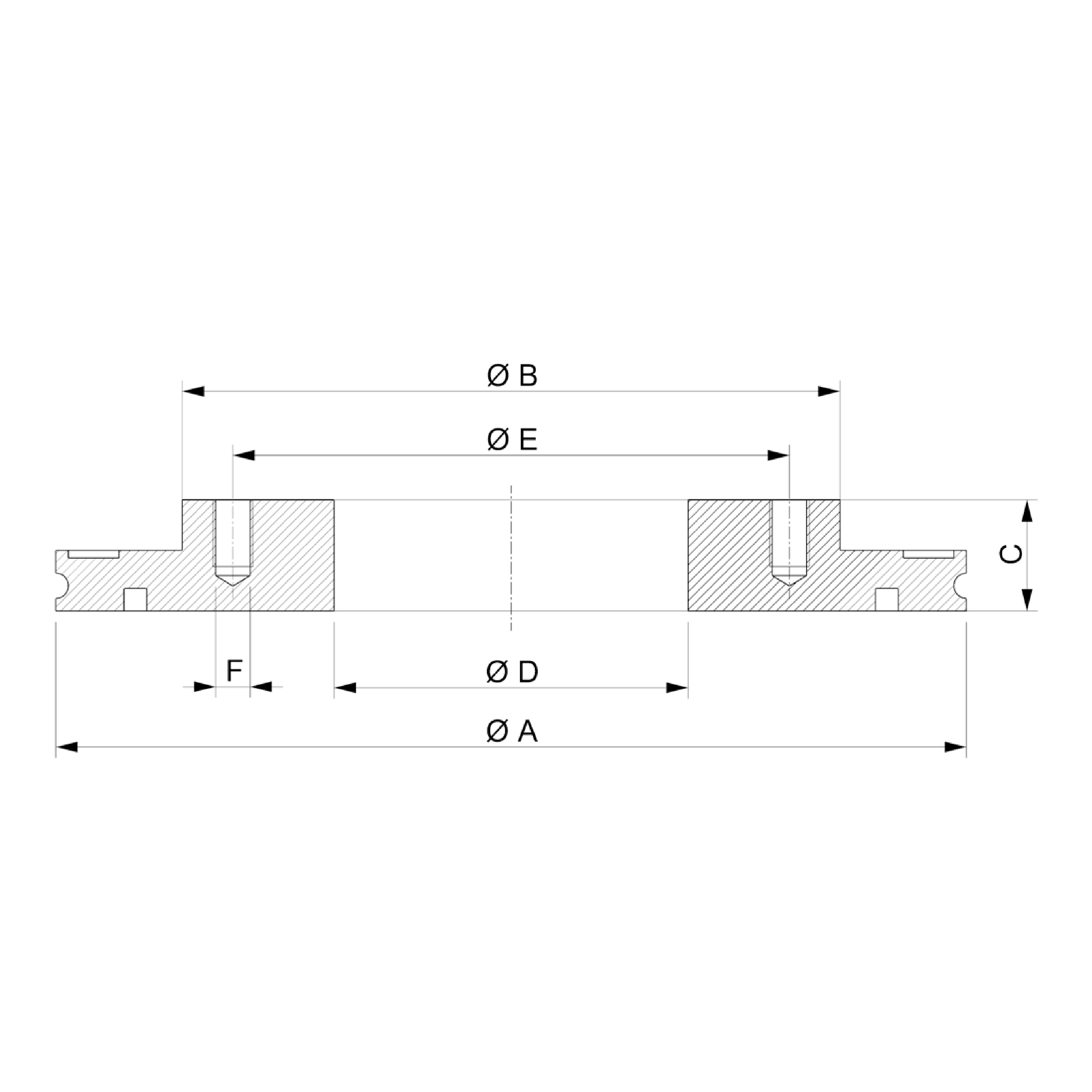

Main Dimensions A, B, C, D, E, F
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Size (DN) Nominal Diameter Reduced A (mm) B (mm) C (mm) D (mm) E (mm) F Order No
160 63 180 130 22 70 110 M8 VC2FLF1SS160-063
160 100 180 165 22 102 145 M8 VC2FLF1SS160-100
200 100 240 165 20 102 145 M8 VC2FLF1SS200-100
200 160 240 225 26 153 200 M10 VC2FLF1SS200-160
250 160 290 225 22 153 200 M10 VC2FLF1SS250-160
Stainless Steel 316L / 1.4404
Size (DN) Nominal Diameter Reduced A (mm) B (mm) C (mm) D (mm) E (mm) F Order No
160 63 180 130 22 70 110 M8 VC2FLF2SS160-063
160 100 180 165 22 102 145 M8 VC2FLF2SS160-100
200 100 240 165 20 102 145 M8 VC2FLF2SS200-100
200 160 240 225 26 153 200 M10 VC2FLF2SS200-160
250 160 290 225 22 153 200 M10 VC2FLF2SS250-160

Stainless Steel 304 / 1.4301
Size (DN) Nominal Diameter Reduced A (mm) B (mm) C (mm) D (mm) E (mm) F
160 63 180 130 22 70 110 M8
160 100 180 165 22 102 145 M8
200 100 240 165 20 102 145 M8
200 160 240 225 26 153 200 M10
250 160 290 225 22 153 200 M10
Stainless Steel 316L / 1.4404
Size (DN) Nominal Diameter Reduced A (mm) B (mm) C (mm) D (mm) E (mm) F
160 63 180 130 22 70 110 M8
160 100 180 165 22 102 145 M8
200 100 240 165 20 102 145 M8
200 160 240 225 26 153 200 M10
250 160 290 225 22 153 200 M10
