| Field | Data |
|---|---|

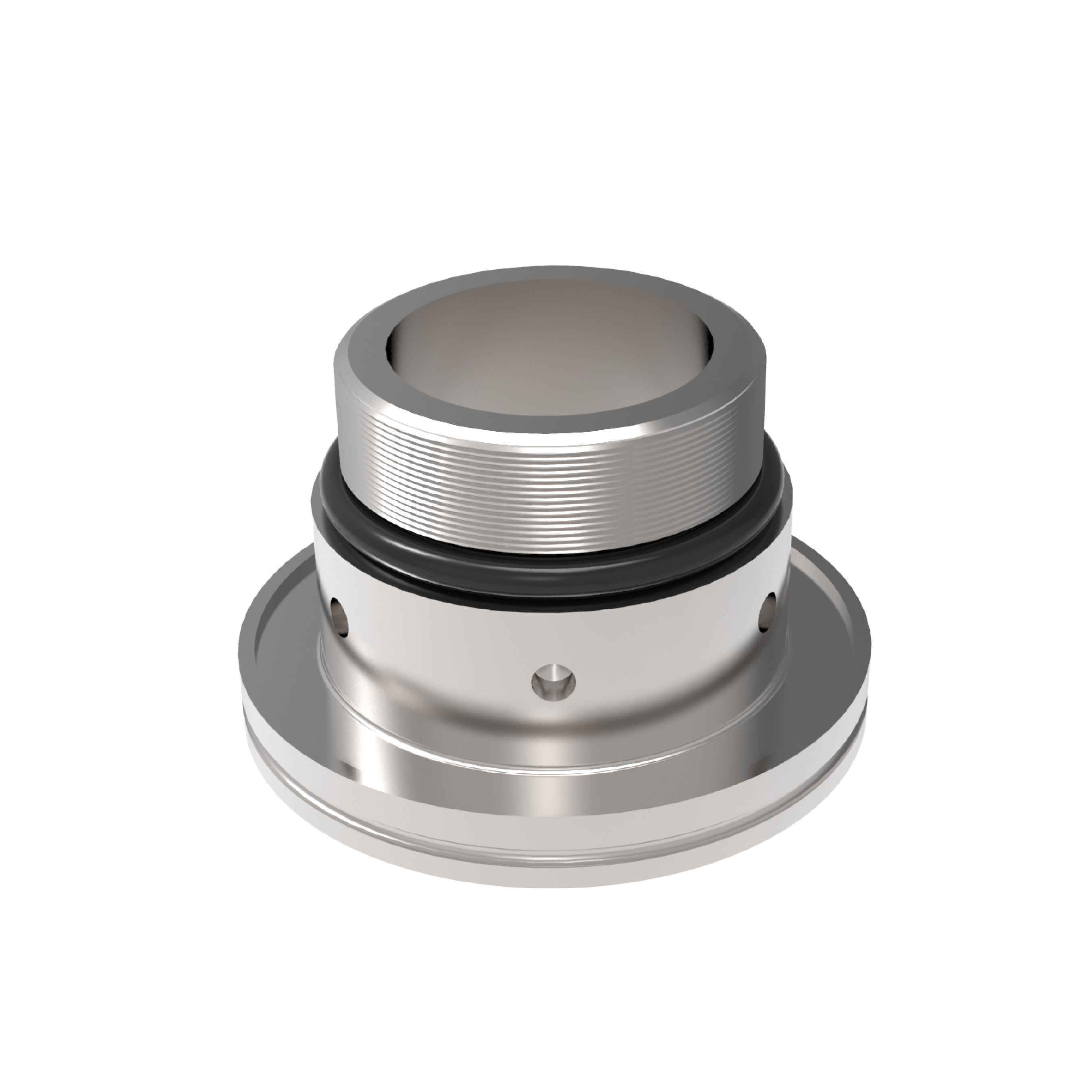

| Product Name | ISO-K Flange With Pipe Thread and FKM Seal, Male |
| System | ISO-K |
| Product Type | Flange With Pipe Thread and FKM Seal, Male |
| Connection Type | Male pipe thread |
| Seal Type | FKM seal |
| O-Ring Material | FKM |
| O-Ring Temperature Range | -15 to 150 °C |
| Catalog Note | Consider O-ring temperature ranges |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Available Flange Sizes (DN) | 63, 100 |
| Available Pipe Threads | G2", G3" |
| Main Dimensions | A, B, C, D, E, F |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
