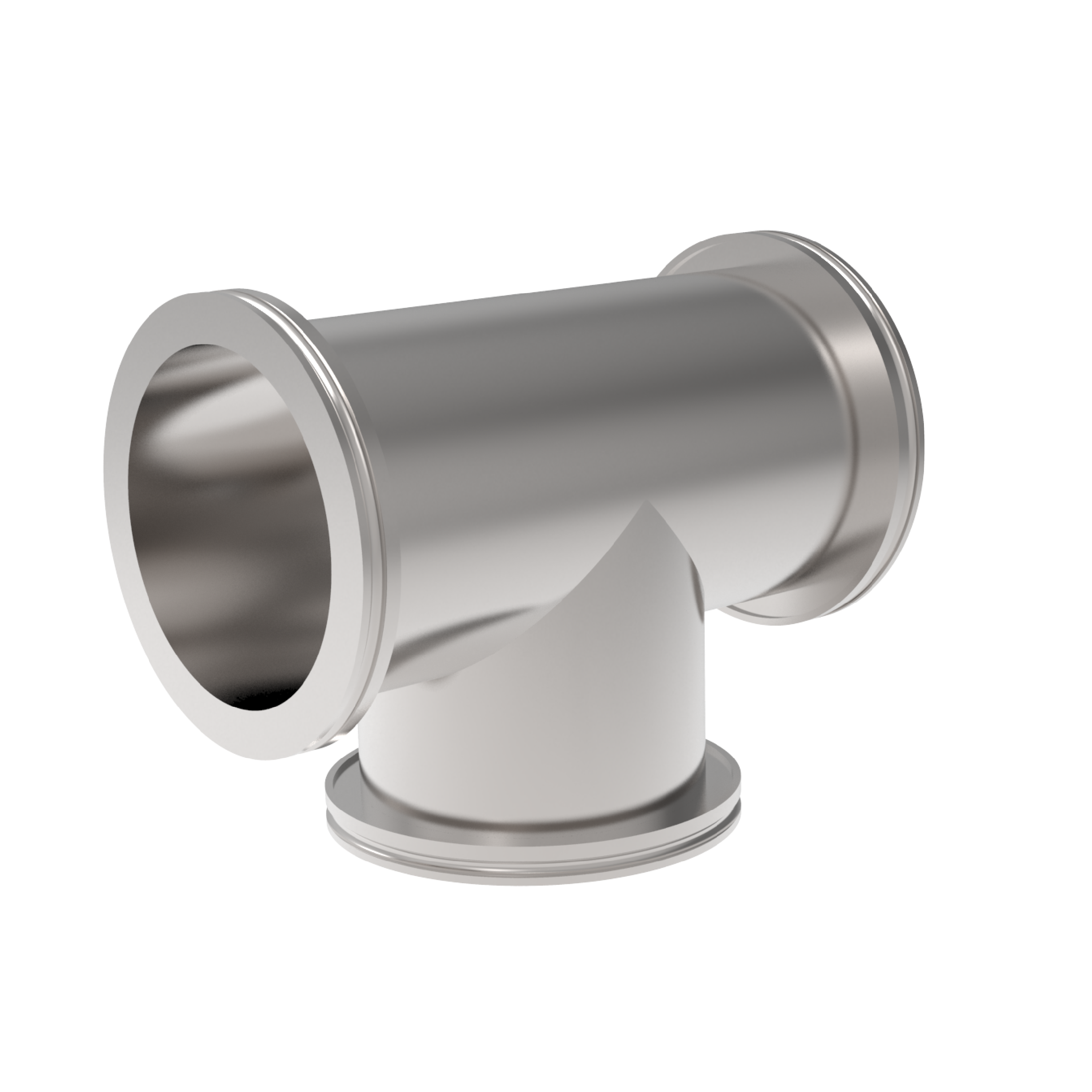

ISO-K Tee
ISO-K Tee - Image 2

ISO-K Tee

Categories ,

Description

The ISO-K Tee is designed for ISO-K vacuum systems that require a tee configuration for line branching while maintaining reliable vacuum performance. The catalog lists this product in Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404, with a pressure range of 1 × 10⁻⁸ mbar to 500 mbar over pressure for elastomer seal and 1 × 10⁻⁹ mbar to 500 mbar over pressure for metal seal. It is available in sizes from DN63 to DN250.

Request a Quote
Field Data
Product Name ISO-K Tee
System ISO-K
Product Type Tee
Function Tee connection for vacuum line branching
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Pressure Range - Elastomer Seal 1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Metal Seal 1 × 10⁻⁹ mbar to 500 mbar over pressure
Available Flange Sizes (DN) 63, 100, 160, 200, 250

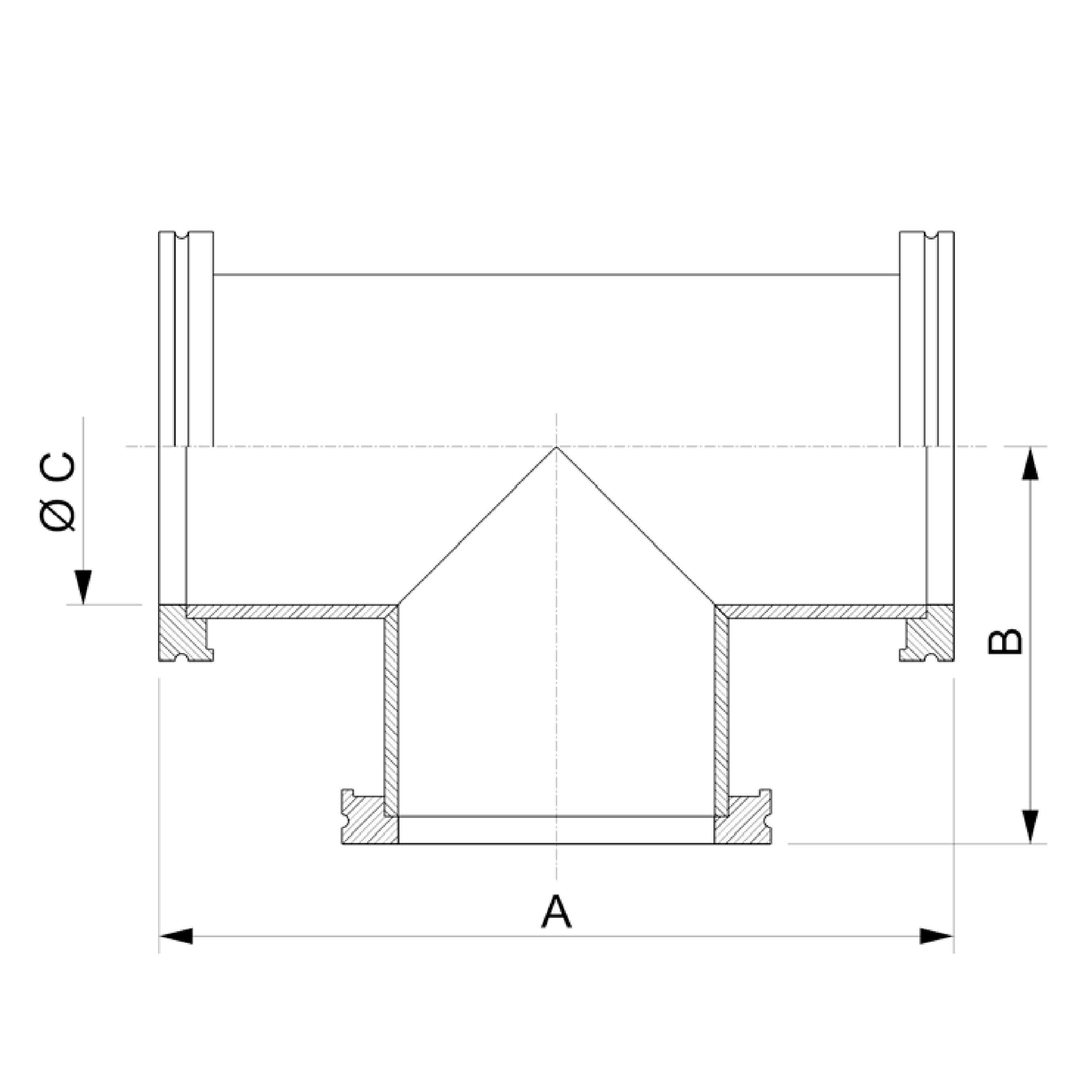

Main Dimensions A, B, C
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm) Order No
63 176 88 70 VC2FTC1SS063-176
100 216 108 102 VC2FTC1SS100-216
160 276 138 153 VC2FTC1SS160-276
200 356 178 213 VC2FTC1SS200-356
250 416 208 261 VC2FTC1SS250-416
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm) Order No
63 176 88 70 VC2FTC2SS063-176
100 216 108 102 VC2FTC2SS100-216
160 276 138 153 VC2FTC2SS160-276
200 356 178 213 VC2FTC2SS200-356
250 416 208 261 VC2FTC2SS250-416

Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm)
63 176 88 70
100 216 108 102
160 276 138 153
200 356 178 213
250 416 208 261
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm)
63 176 88 70
100 216 108 102
160 276 138 153
200 356 178 213
250 416 208 261



Download Datasheet from here

Request CAD Model
