| Product Name |

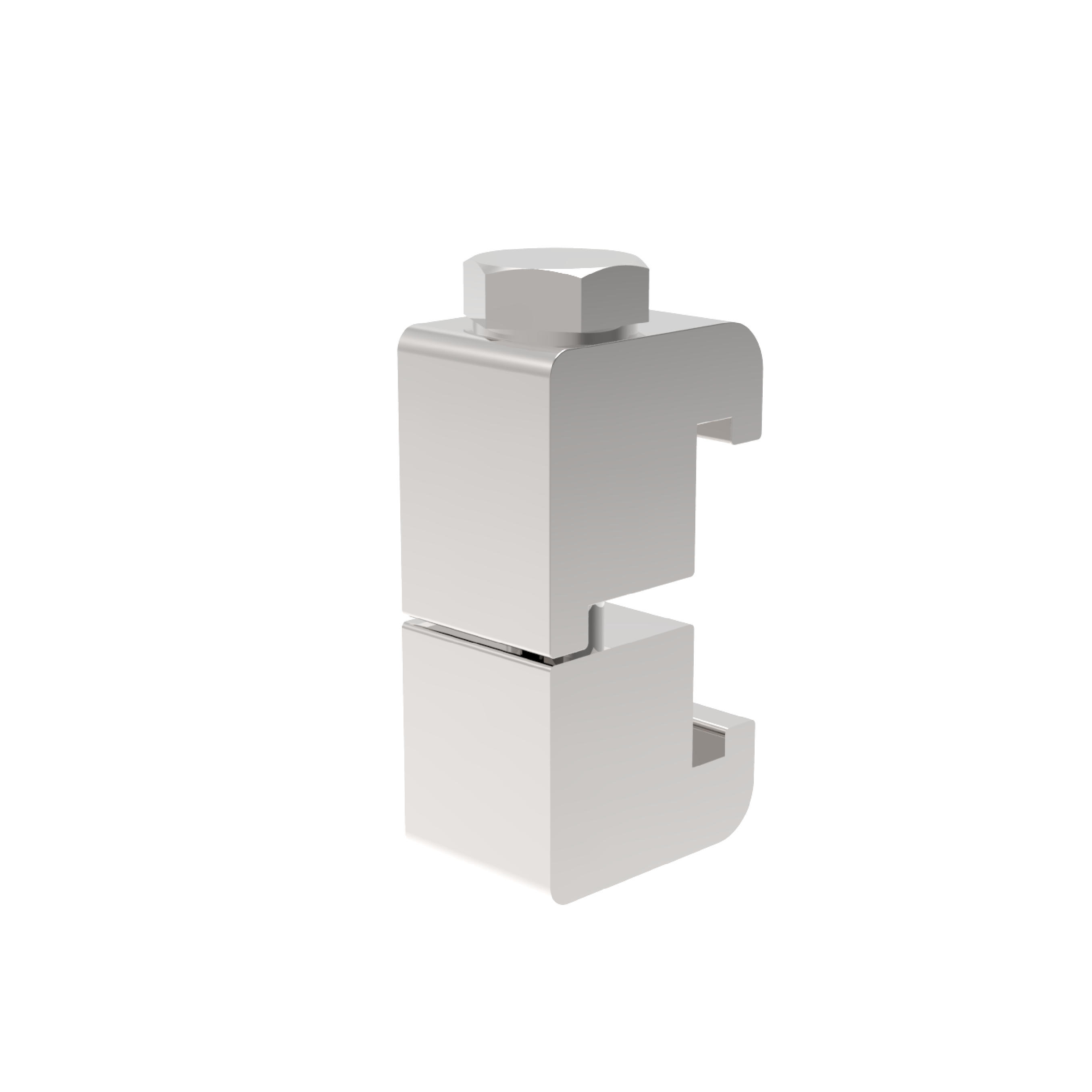

ISO-K Double Claw Clamp |
| System |
ISO-K |
| Product Type |
Double Claw Clamp |
| Seal Compatibility |
Suitable for use with elastomer seals |
| Bolt Material |
A2-70 stainless steel |
| Usage Restriction |
Do not use in turbo pump assembly |
| Max Torque DN63–250 |
16 Nm |
| Max Torque DN320–630 |
26 Nm |
| Pressure Range - Elastomer Seal |
10⁻⁷ mbar to 2.5 bar |
| Material Versions |
Aluminium EN AW-6082 T6 / 3.2315, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Available Size Ranges (DN) |
63-100, 63-250, 160-250, 320-500, 630 |

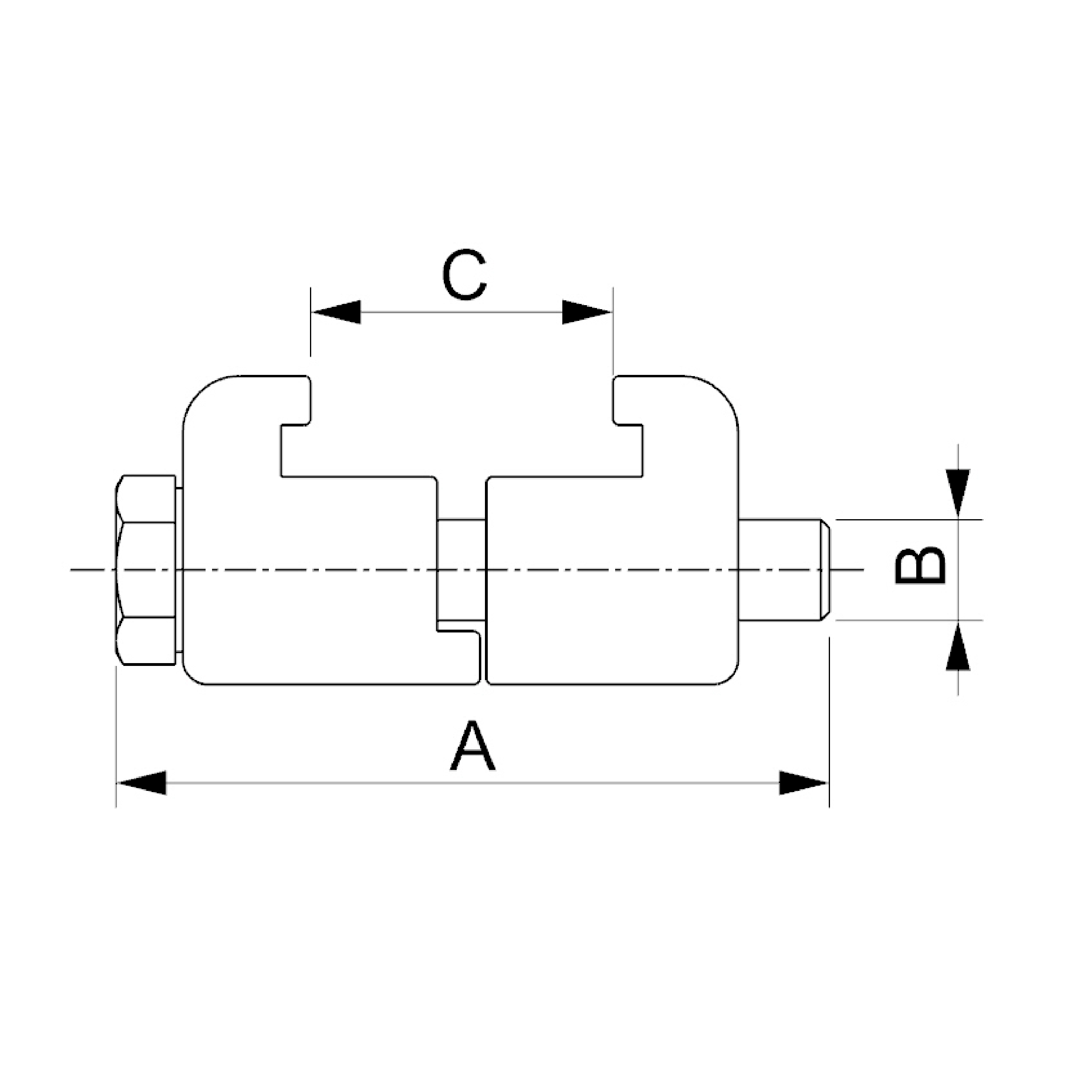

| Main Dimensions |
A, B, C |
| Temperature Range - Aluminium EN AW-6082 T6 / 3.2315 |
-196 to 150 °C |
| Temperature Range - Stainless Steel 304 / 1.4301 |
-196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 |
-196 to 350 °C |
