| Field | Data |
|---|---|

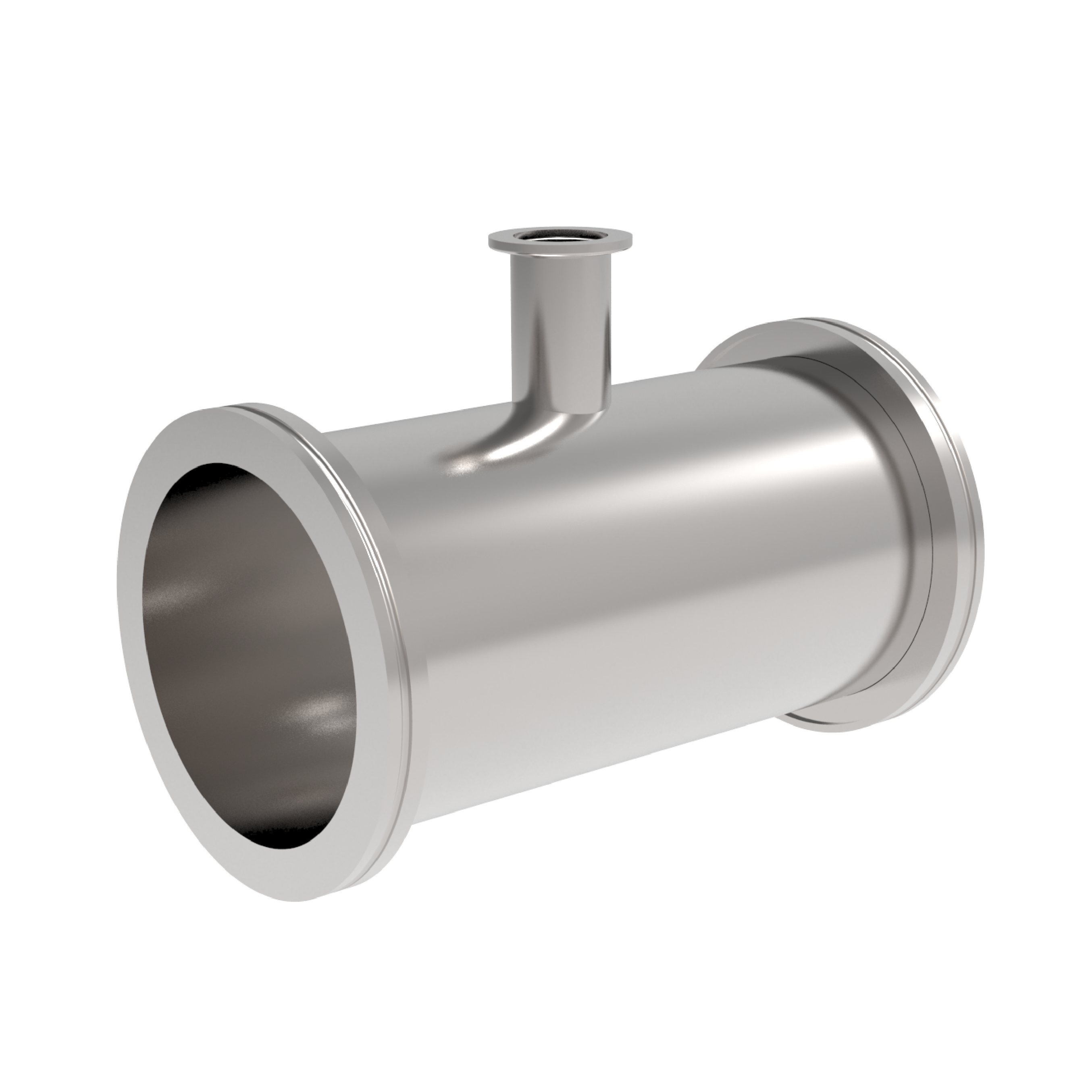

| Product Name | ISO-K to KF Reducer Tee |
| System | ISO-K to ISO-KF |
| Product Type | Reducer Tee |
| Function | Connects ISO-K flange sizes to ISO-KF reducer flange sizes in a tee configuration |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Pressure Range - Elastomer Seal | 1 × 10⁻⁸ mbar to 500 mbar over pressure |
| Pressure Range - Metal Seal | 1 × 10⁻⁹ mbar to 500 mbar over pressure |
| Available Flange Sizes (DN) | 63, 100, 160 |
| Available Reducer Flange Sizes (DN) | 25, 40 |
| Main Dimensions | A, B, C, D |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
