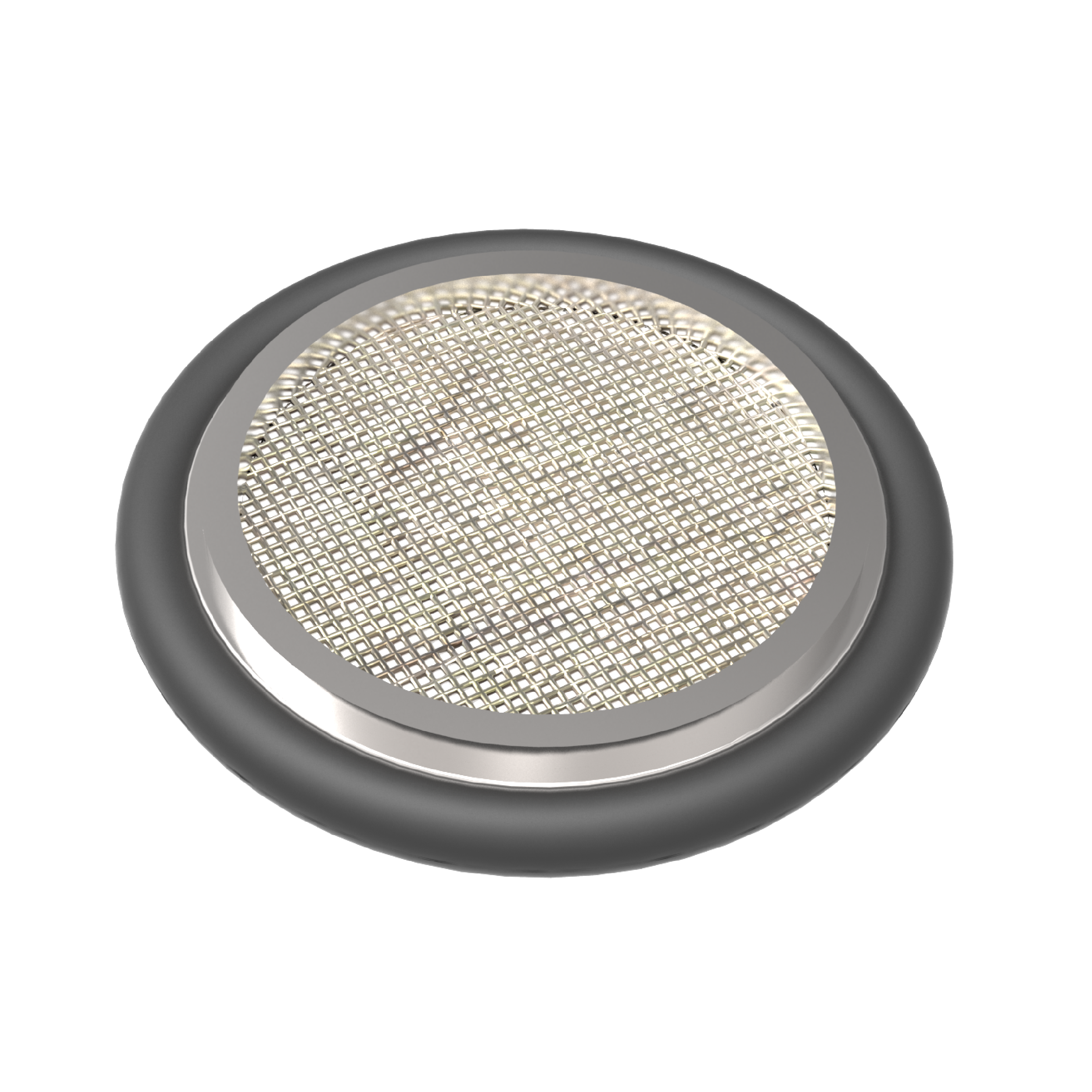

ISO-K Seal Inner Centered With Mesh Screen

Field	Data
Product Name	ISO-K Seal Inner Centered With Mesh Screen
System	ISO-K
Product Type	Seal Inner Centered With Mesh Screen
Function	Inner centered seal with integrated mesh screen
Wire Thickness Note	Approximately 0.3 mm
Mesh Note	Approximately 1 mm
O-Ring Note	Consider O-ring temperature ranges
O-Ring Options	Various types of O-ring are available
Seal Materials Listed	Aluminium EN AW-6082 T6, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Variant O-Ring Material Shown	FKM
Available Sizes (DN)	63, 80, 100, 160
Main Dimensions	A, B, C, D, E, Mesh, Wire thickness
Temperature Range - Stainless Steel 304 / 1.4301	-196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404	-196 to 350 °C
Catalog Note	The dimension table on this page lists mesh values by size and shows wire thickness as 0.2 mm in the variants

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Mesh (mm)	Wire thickness (mm)	O-ring material	Order No
63	70	60	3.9	5.33	8	0.5	0.2	FKM	VC2SLC1SS063-FKM
80	83	73	3.9	5.33	8	0.6	0.2	FKM	VC2SLC1SS080-FKM
100	102	92	3.9	5.33	8	0.8	0.2	FKM	VC2SLC1SS100-FKM
160	153	143	3.9	5.33	8	1.2	0.2	FKM	VC2SLC1SS160-FKM

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Mesh (mm)	Wire thickness (mm)	O-ring material	Order No
63	70	60	3.9	5.33	8	0.5	0.2	FKM	VC2SLC2SS063-FKM
80	83	73	3.9	5.33	8	0.6	0.2	FKM	VC2SLC2SS080-FKM
100	102	92	3.9	5.33	8	0.8	0.2	FKM	VC2SLC2SS100-FKM
160	153	143	3.9	5.33	8	1.2	0.2	FKM	VC2SLC2SS160-FKM
