ISO-K Seal Inner Centered With Support
ISO-K Seal Inner Centered With Support - Image 2

ISO-K Seal Inner Centered With Support

Categories ,

Description

The ISO-K Seal Inner Centered With Support is designed for ISO-K vacuum systems where an inner centered seal with support ring is required. The catalog notes that users should consider O-ring temperature ranges and that various types of O-ring seals are available. The listed inner ring materials are Aluminium EN AW-6082 T6 / 3.2315, Stainless Steel 304 / 1.4301, and Stainless Steel 316L / 1.4404. The product is available with FKM, CR, NBR, EPDM, and VMQ (SILICON) O-ring materials across a wide size range from DN63 to DN630.

Request a Quote
Field Data
Product Name ISO-K Seal Inner Centered With Support
System ISO-K
Product Type Seal Inner Centered With Support
Function Inner centered seal with support ring
O-Ring Note Consider O-ring temperature ranges
O-Ring Options Various types of O-ring seals are available
Inner Ring Material Versions Aluminium EN AW-6082 T6 / 3.2315, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available O-Ring Materials FKM, CR, NBR, EPDM, VMQ (SILICON)
Available Sizes (DN) 63, 80, 100, 160, 200, 250, 320, 400, 500, 630

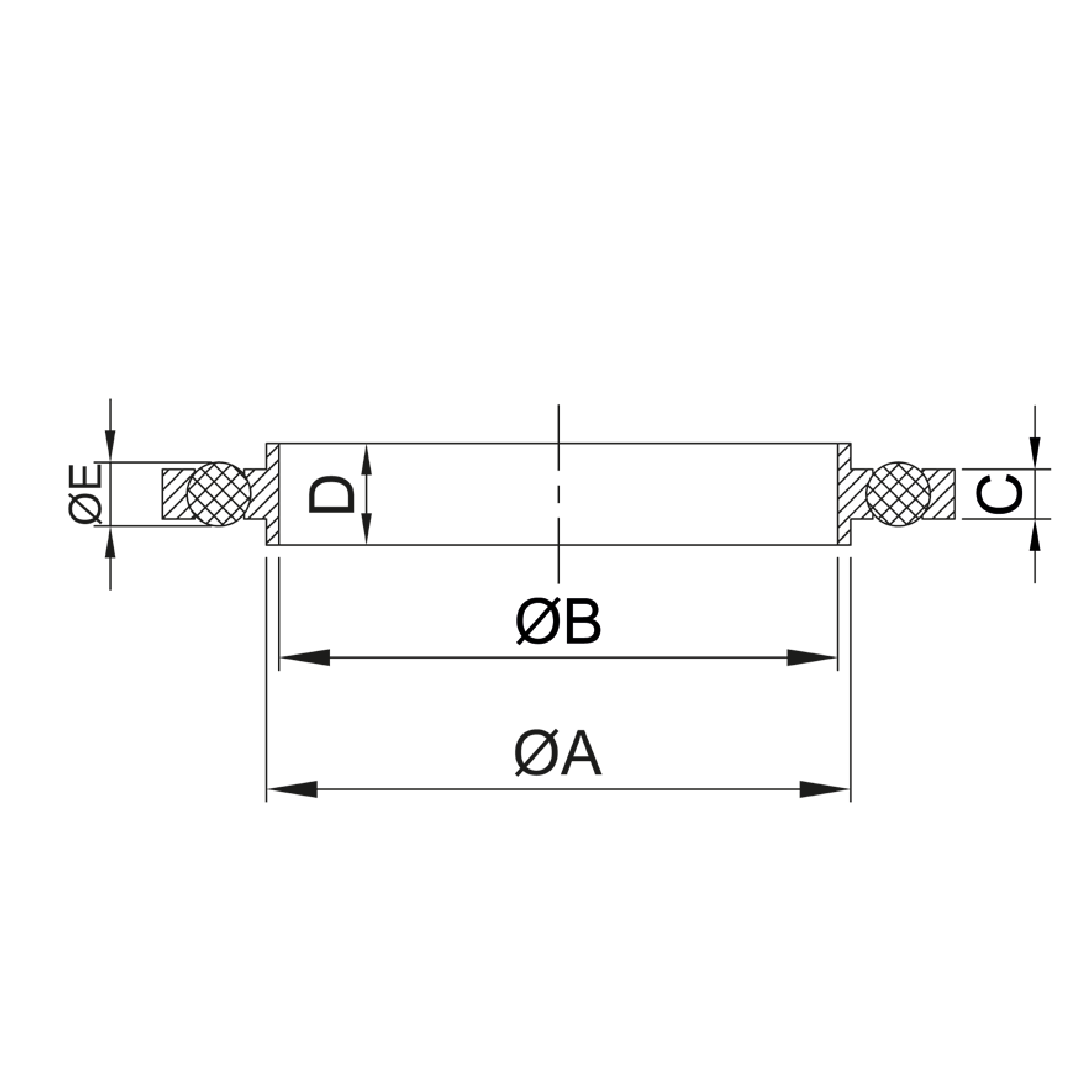

Main Dimensions A, B, C, D, E
Temperature Range - Aluminium EN AW-6082 T6 / 3.2315 -196 to 150 °C
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Aluminium EN AW-6082 T6 / 3.2315
Size (DN) A (mm) B (mm) C (mm) D (mm) E (mm) O-ring material Order No
63 70 68 3.9 8 5.33 FKM VC2SLB1AL063-FKM
80 83 81 3.9 8 5.33 FKM VC2SLB1AL080-FKM
100 102 100 3.9 8 5.33 FKM VC2SLB1AL100-FKM
160 153 151 3.9 8 5.33 FKM VC2SLB1AL160-FKM
200 213 211 3.9 8 5.33 FKM VC2SLB1AL200-FKM
250 261 259 3.9 8 5.33 FKM VC2SLB1AL250-FKM
320 318 313 5.6 14 7 FKM VC2SLB1AL320-FKM
400 400 395 5.6 14 7 FKM VC2SLB1AL400-FKM
500 501 496 5.6 14 7 FKM VC2SLB1AL500-FKM
630 651 646 5.6 14 7 FKM VC2SLB1AL630-FKM
63 70 68 3.9 8 5.33 CR VC2SLB1AL063-CR
80 83 81 3.9 8 5.33 CR VC2SLB1AL080-CR
100 102 100 3.9 8 5.33 CR VC2SLB1AL100-CR
160 153 151 3.9 8 5.33 CR VC2SLB1AL160-CR
200 213 211 3.9 8 5.33 CR VC2SLB1AL200-CR
250 261 259 3.9 8 5.33 CR VC2SLB1AL250-CR
320 318 313 5.6 14 7 CR VC2SLB1AL320-CR
400 400 395 5.6 14 7 CR VC2SLB1AL400-CR
500 501 496 5.6 14 7 CR VC2SLB1AL500-CR
630 651 646 5.6 14 7 CR VC2SLB1AL630-CR
63 70 68 3.9 8 5.33 NBR VC2SLB1AL063-NBR
80 83 81 3.9 8 5.33 NBR VC2SLB1AL080-NBR
100 102 100 3.9 8 5.33 NBR VC2SLB1AL100-NBR
160 153 151 3.9 8 5.33 NBR VC2SLB1AL160-NBR
200 213 211 3.9 8 5.33 NBR VC2SLB1AL200-NBR
250 261 259 3.9 8 5.33 NBR VC2SLB1AL250-NBR
320 318 313 5.6 14 7 NBR VC2SLB1AL320-NBR
400 400 395 5.6 14 7 NBR VC2SLB1AL400-NBR
500 501 496 5.6 14 7 NBR VC2SLB1AL500-NBR
630 651 646 5.6 14 7 NBR VC2SLB1AL630-NBR
63 70 68 3.9 8 5.33 EPDM VC2SLB1AL063-EPDM
80 83 81 3.9 8 5.33 EPDM VC2SLB1AL080-EPDM
100 102 100 3.9 8 5.33 EPDM VC2SLB1AL100-EPDM
160 153 151 3.9 8 5.33 EPDM VC2SLB1AL160-EPDM
200 213 211 3.9 8 5.33 EPDM VC2SLB1AL200-EPDM
250 261 259 3.9 8 5.33 EPDM VC2SLB1AL250-EPDM
320 318 313 5.6 14 7 EPDM VC2SLB1AL320-EPDM
400 400 395 5.6 14 7 EPDM VC2SLB1AL400-EPDM
500 501 496 5.6 14 7 EPDM VC2SLB1AL500-EPDM
630 651 646 5.6 14 7 EPDM VC2SLB1AL630-EPDM
63 70 68 3.9 8 5.33 VMQ (SILICON) VC2SLB1AL063-VMQ
80 83 81 3.9 8 5.33 VMQ (SILICON) VC2SLB1AL080-VMQ
100 102 100 3.9 8 5.33 VMQ (SILICON) VC2SLB1AL100-VMQ
160 153 151 3.9 8 5.33 VMQ (SILICON) VC2SLB1AL160-VMQ
200 213 211 3.9 8 5.33 VMQ (SILICON) VC2SLB1AL200-VMQ
250 261 259 3.9 8 5.33 VMQ (SILICON) VC2SLB1AL250-VMQ
320 318 313 5.6 14 7 VMQ (SILICON) VC2SLB1AL320-VMQ
400 400 395 5.6 14 7 VMQ (SILICON) VC2SLB1AL400-VMQ
500 501 496 5.6 14 7 VMQ (SILICON) VC2SLB1AL500-VMQ
630 651 646 5.6 14 7 VMQ (SILICON) VC2SLB1AL630-VMQ
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) C (mm) D (mm) E (mm) O-ring material Order No
63 70 68 3.9 8 5.33 FKM VC2SLB1SS063-FKM
80 83 81 3.9 8 5.33 FKM VC2SLB1SS080-FKM
100 102 100 3.9 8 5.33 FKM VC2SLB1SS100-FKM
160 153 151 3.9 8 5.33 FKM VC2SLB1SS160-FKM
200 213 211 3.9 8 5.33 FKM VC2SLB1SS200-FKM
250 261 259 3.9 8 5.33 FKM VC2SLB1SS250-FKM
320 318 313 5.6 14 7 FKM VC2SLB1SS320-FKM
400 400 395 5.6 14 7 FKM VC2SLB1SS400-FKM
500 501 496 5.6 14 7 FKM VC2SLB1SS500-FKM
630 651 646 5.6 14 7 FKM VC2SLB1SS630-FKM
63 70 68 3.9 8 5.33 CR VC2SLB1SS063-CR
80 83 81 3.9 8 5.33 CR VC2SLB1SS080-CR
100 102 100 3.9 8 5.33 CR VC2SLB1SS100-CR
160 153 151 3.9 8 5.33 CR VC2SLB1SS160-CR
200 213 211 3.9 8 5.33 CR VC2SLB1SS200-CR
250 261 259 3.9 8 5.33 CR VC2SLB1SS250-CR
320 318 313 5.6 14 7 CR VC2SLB1SS320-CR
400 400 395 5.6 14 7 CR VC2SLB1SS400-CR
500 501 496 5.6 14 7 CR VC2SLB1SS500-CR
630 651 646 5.6 14 7 CR VC2SLB1SS630-CR
63 70 68 3.9 8 5.33 NBR VC2SLB1SS063-NBR
80 83 81 3.9 8 5.33 NBR VC2SLB1SS080-NBR
100 102 100 3.9 8 5.33 NBR VC2SLB1SS100-NBR
160 153 151 3.9 8 5.33 NBR VC2SLB1SS160-NBR
200 213 211 3.9 8 5.33 NBR VC2SLB1SS200-NBR
250 261 259 3.9 8 5.33 NBR VC2SLB1SS250-NBR
320 318 313 5.6 14 7 NBR VC2SLB1SS320-NBR
400 400 395 5.6 14 7 NBR VC2SLB1SS400-NBR
500 501 496 5.6 14 7 NBR VC2SLB1SS500-NBR
630 651 646 5.6 14 7 NBR VC2SLB1SS630-NBR
63 70 68 3.9 8 5.33 EPDM VC2SLB1SS063-EPDM
80 83 81 3.9 8 5.33 EPDM VC2SLB1SS080-EPDM
100 102 100 3.9 8 5.33 EPDM VC2SLB1SS100-EPDM
160 153 151 3.9 8 5.33 EPDM VC2SLB1SS160-EPDM
200 213 211 3.9 8 5.33 EPDM VC2SLB1SS200-EPDM
250 261 259 3.9 8 5.33 EPDM VC2SLB1SS250-EPDM
320 318 313 5.6 14 7 EPDM VC2SLB1SS320-EPDM
400 400 395 5.6 14 7 EPDM VC2SLB1SS400-EPDM
500 501 496 5.6 14 7 EPDM VC2SLB1SS500-EPDM
630 651 646 5.6 14 7 EPDM VC2SLB1SS630-EPDM
63 70 68 3.9 8 5.33 VMQ (SILICON) VC2SLB1SS063-VMQ
80 83 81 3.9 8 5.33 VMQ (SILICON) VC2SLB1SS080-VMQ
100 102 100 3.9 8 5.33 VMQ (SILICON) VC2SLB1SS100-VMQ
160 153 151 3.9 8 5.33 VMQ (SILICON) VC2SLB1SS160-VMQ
200 213 211 3.9 8 5.33 VMQ (SILICON) VC2SLB1SS200-VMQ
250 261 259 3.9 8 5.33 VMQ (SILICON) VC2SLB1SS250-VMQ
320 318 313 5.6 14 7 VMQ (SILICON) VC2SLB1SS320-VMQ
400 400 395 5.6 14 7 VMQ (SILICON) VC2SLB1SS400-VMQ
500 501 496 5.6 14 7 VMQ (SILICON) VC2SLB1SS500-VMQ
630 651 646 5.6 14 7 VMQ (SILICON) VC2SLB1SS630-VMQ
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) C (mm) D (mm) E (mm) O-ring material Order No
63 70 68 3.9 8 5.33 FKM VC2SLB2SS063-FKM
80 83 81 3.9 8 5.33 FKM VC2SLB2SS080-FKM
100 102 100 3.9 8 5.33 FKM VC2SLB2SS100-FKM
160 153 151 3.9 8 5.33 FKM VC2SLB2SS160-FKM
200 213 211 3.9 8 5.33 FKM VC2SLB2SS200-FKM
250 261 259 3.9 8 5.33 FKM VC2SLB2SS250-FKM
320 318 313 5.6 14 7 FKM VC2SLB2SS320-FKM
400 400 395 5.6 14 7 FKM VC2SLB2SS400-FKM
500 501 496 5.6 14 7 FKM VC2SLB2SS500-FKM
630 651 646 5.6 14 7 FKM VC2SLB2SS630-FKM
63 70 68 3.9 8 5.33 CR VC2SLB2SS063-CR
80 83 81 3.9 8 5.33 CR VC2SLB2SS080-CR
100 102 100 3.9 8 5.33 CR VC2SLB2SS100-CR
160 153 151 3.9 8 5.33 CR VC2SLB2SS160-CR
200 213 211 3.9 8 5.33 CR VC2SLB2SS200-CR
250 261 259 3.9 8 5.33 CR VC2SLB2SS250-CR
320 318 313 5.6 14 7 CR VC2SLB2SS320-CR
400 400 395 5.6 14 7 CR VC2SLB2SS400-CR
500 501 496 5.6 14 7 CR VC2SLB2SS500-CR
630 651 646 5.6 14 7 CR VC2SLB2SS630-CR
63 70 68 3.9 8 5.33 NBR VC2SLB2SS063-NBR
80 83 81 3.9 8 5.33 NBR VC2SLB2SS080-NBR
100 102 100 3.9 8 5.33 NBR VC2SLB2SS100-NBR
160 153 151 3.9 8 5.33 NBR VC2SLB2SS160-NBR
200 213 211 3.9 8 5.33 NBR VC2SLB2SS200-NBR
250 261 259 3.9 8 5.33 NBR VC2SLB2SS250-NBR
320 318 313 5.6 14 7 NBR VC2SLB2SS320-NBR
400 400 395 5.6 14 7 NBR VC2SLB2SS400-NBR
500 501 496 5.6 14 7 NBR VC2SLB2SS500-NBR
630 651 646 5.6 14 7 NBR VC2SLB2SS630-NBR
63 70 68 3.9 8 5.33 EPDM VC2SLB2SS063-EPDM
80 83 81 3.9 8 5.33 EPDM VC2SLB2SS080-EPDM
100 102 100 3.9 8 5.33 EPDM VC2SLB2SS100-EPDM
160 153 151 3.9 8 5.33 EPDM VC2SLB2SS160-EPDM
200 213 211 3.9 8 5.33 EPDM VC2SLB2SS200-EPDM
250 261 259 3.9 8 5.33 EPDM VC2SLB2SS250-EPDM
320 318 313 5.6 14 7 EPDM VC2SLB2SS320-EPDM
400 400 395 5.6 14 7 EPDM VC2SLB2SS400-EPDM
500 501 496 5.6 14 7 EPDM VC2SLB2SS500-EPDM
630 651 646 5.6 14 7 EPDM VC2SLB2SS630-EPDM
63 70 68 3.9 8 5.33 VMQ (SILICON) VC2SLB2SS063-VMQ
80 83 81 3.9 8 5.33 VMQ (SILICON) VC2SLB2SS080-VMQ
100 102 100 3.9 8 5.33 VMQ (SILICON) VC2SLB2SS100-VMQ
160 153 151 3.9 8 5.33 VMQ (SILICON) VC2SLB2SS160-VMQ
200 213 211 3.9 8 5.33 VMQ (SILICON) VC2SLB2SS200-VMQ
250 261 259 3.9 8 5.33 VMQ (SILICON) VC2SLB2SS250-VMQ
320 318 313 5.6 14 7 VMQ (SILICON) VC2SLB2SS320-VMQ
400 400 395 5.6 14 7 VMQ (SILICON) VC2SLB2SS400-VMQ
500 501 496 5.6 14 7 VMQ (SILICON) VC2SLB2SS500-VMQ
630 651 646 5.6 14 7 VMQ (SILICON) VC2SLB2SS630-VMQ

Aluminium EN AW-6082 T6 / 3.2315
Size (DN) A (mm) B (mm) C (mm) D (mm) E (mm)
63 70 68 3.9 8 5.33
80 83 81 3.9 8 5.33
100 102 100 3.9 8 5.33
160 153 151 3.9 8 5.33
200 213 211 3.9 8 5.33
250 261 259 3.9 8 5.33
320 318 313 5.6 14 7
400 400 395 5.6 14 7
500 501 496 5.6 14 7
630 651 646 5.6 14 7
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) C (mm) D (mm) E (mm)
63 70 68 3.9 8 5.33
80 83 81 3.9 8 5.33
100 102 100 3.9 8 5.33
160 153 151 3.9 8 5.33
200 213 211 3.9 8 5.33
250 261 259 3.9 8 5.33
320 318 313 5.6 14 7
400 400 395 5.6 14 7
500 501 496 5.6 14 7
630 651 646 5.6 14 7
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) C (mm) D (mm) E (mm)
63 70 68 3.9 8 5.33
80 83 81 3.9 8 5.33
100 102 100 3.9 8 5.33
160 153 151 3.9 8 5.33
200 213 211 3.9 8 5.33
250 261 259 3.9 8 5.33
320 318 313 5.6 14 7
400 400 395 5.6 14 7
500 501 496 5.6 14 7
630 651 646 5.6 14 7
