ISO-K to KF Straight Adapter

Field	Data
Product Name	ISO-K to KF Straight Adapter
System	ISO-K to ISO-KF
Product Type	Straight Adapter
Function	Connects ISO-K flange sizes to ISO-KF reducer flange sizes
Other Sizes	Other nominal diameters and dimensions on request
Pressure Range - Elastomer Seal	1 × 10⁻⁸ mbar to ambient pressure
Pressure Range - Metal Seal	1 × 10⁻⁹ mbar to ambient pressure
Material Versions	Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available ISO-K Flange Sizes (DN)	63, 100, 160
Available ISO-KF Reducer Flange Sizes (DN)	25, 40, 50, 63

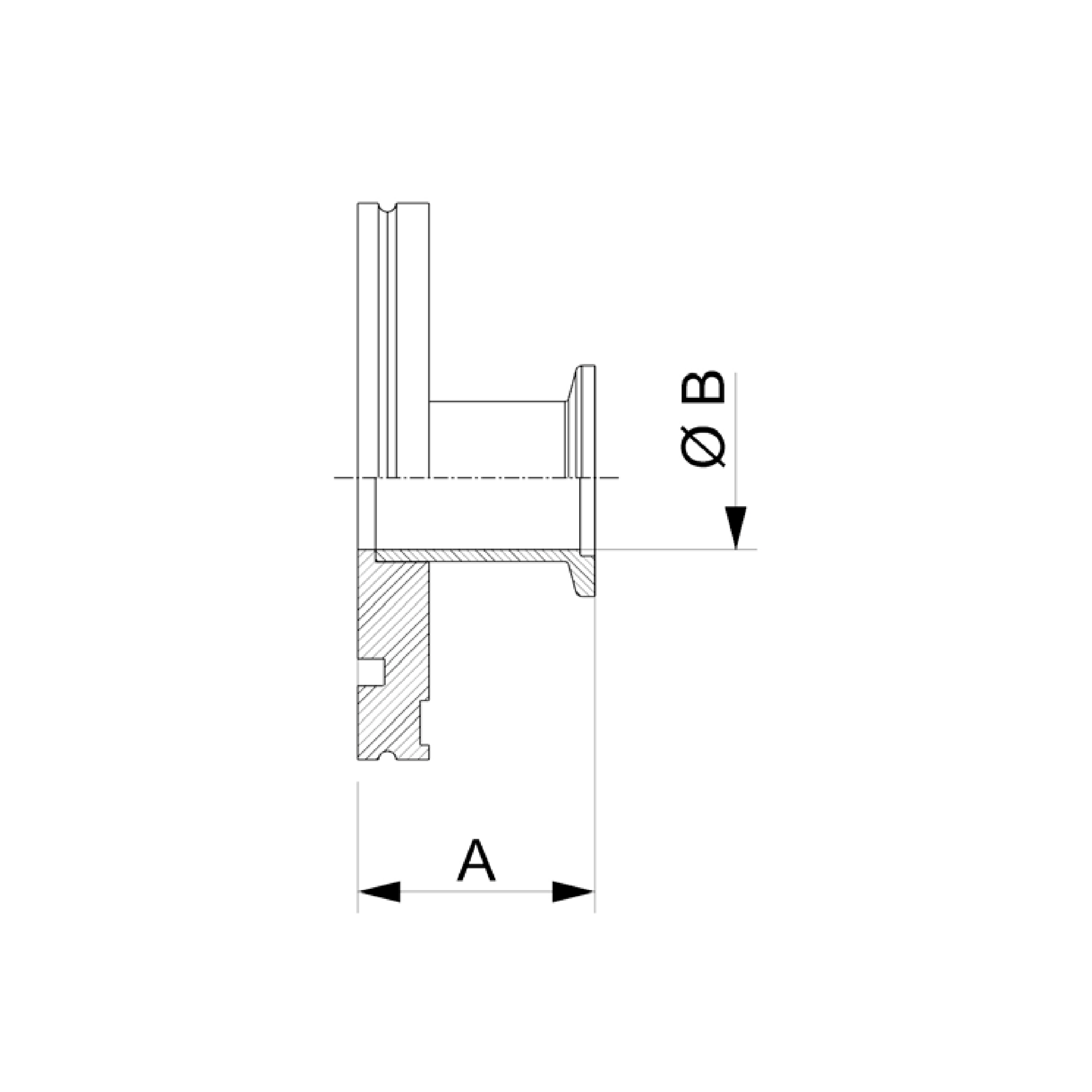

Main Dimensions	A, B
Temperature Range - Stainless Steel 304 / 1.4301	-196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404	-196 to 350 °C

Flange Size (DN)	Reducer Flange Size (DN)	A (mm)	B (mm)	Order No
63	25	40	24	VC2ADD1SS063-025-40
63	40	40	40.5	VC2ADD1SS063-040-40
63	50	40	50.6	VC2ADD1SS063-050-40
100	25	40	24	VC2ADD1SS100-025-40
100	40	40	40.5	VC2ADD1SS100-040-40
100	50	40	50.6	VC2ADD1SS100-050-40
160	40	40	40.5	VC2ADD1SS160-040-40
160	50	40	50.6	VC2ADD1SS160-050-40
160	63	40	70	VC2ADD1SS160-063-40

Flange Size (DN)	Reducer Flange Size (DN)	A (mm)	B (mm)	Order No
63	25	40	24	VC2ADD2SS063-025-40
63	40	40	40.5	VC2ADD2SS063-040-40
63	50	40	50.6	VC2ADD2SS063-050-40
100	25	40	24	VC2ADD2SS100-025-40
100	40	40	40.5	VC2ADD2SS100-040-40
100	50	40	50.6	VC2ADD2SS100-050-40
160	40	40	40.5	VC2ADD2SS160-040-40
160	50	40	50.6	VC2ADD2SS160-050-40
160	63	40	70	VC2ADD2SS160-063-40
