ISO-K Flexible Hose
ISO-K Flexible Hose - Image 2

ISO-K Flexible Hose

Categories ,

Description

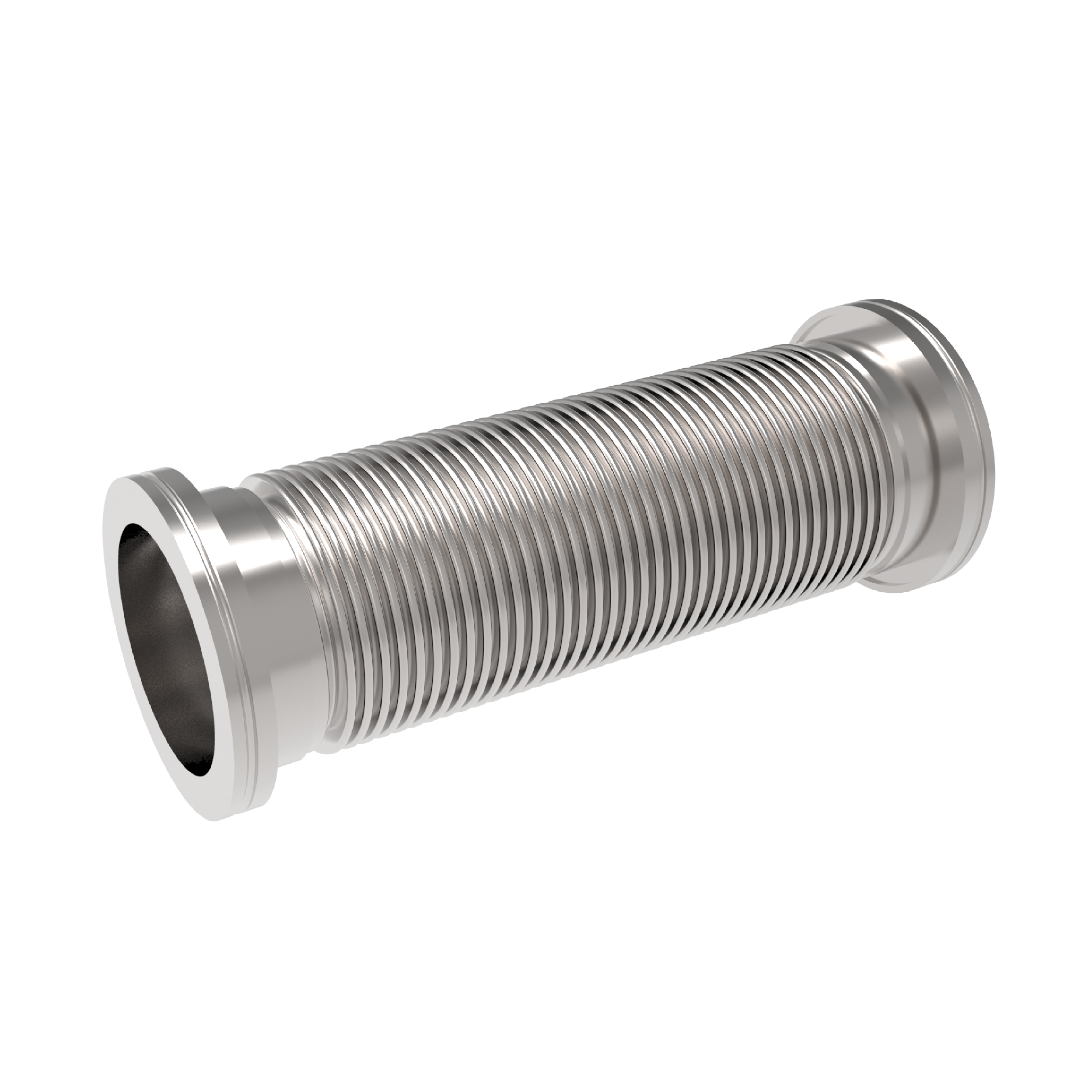

The ISO-K Flexible Hose is designed for ISO-K vacuum systems that require a flexible metal hose connection with reliable vacuum performance and controlled movement. The catalog specifies a flange connection length of 30 mm, custom lengths on request, and a pressure range of 1 × 10⁻⁸ mbar to 500 mbar. It is available in Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404, with standard flange sizes DN63, DN100, and DN160 and multiple length options.

Request a Quote
Field Data
Product Name ISO-K Flexible Hose
System ISO-K
Product Type Flexible Hose
Flange Connection Length 30 mm
Custom Lengths On request
Pressure Range 1 × 10⁻⁸ mbar to 500 mbar
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Flange Sizes (DN) 63, 100, 160
Length Options (A) 250 mm, 500 mm, 750 mm, 1000 mm, 1500 mm

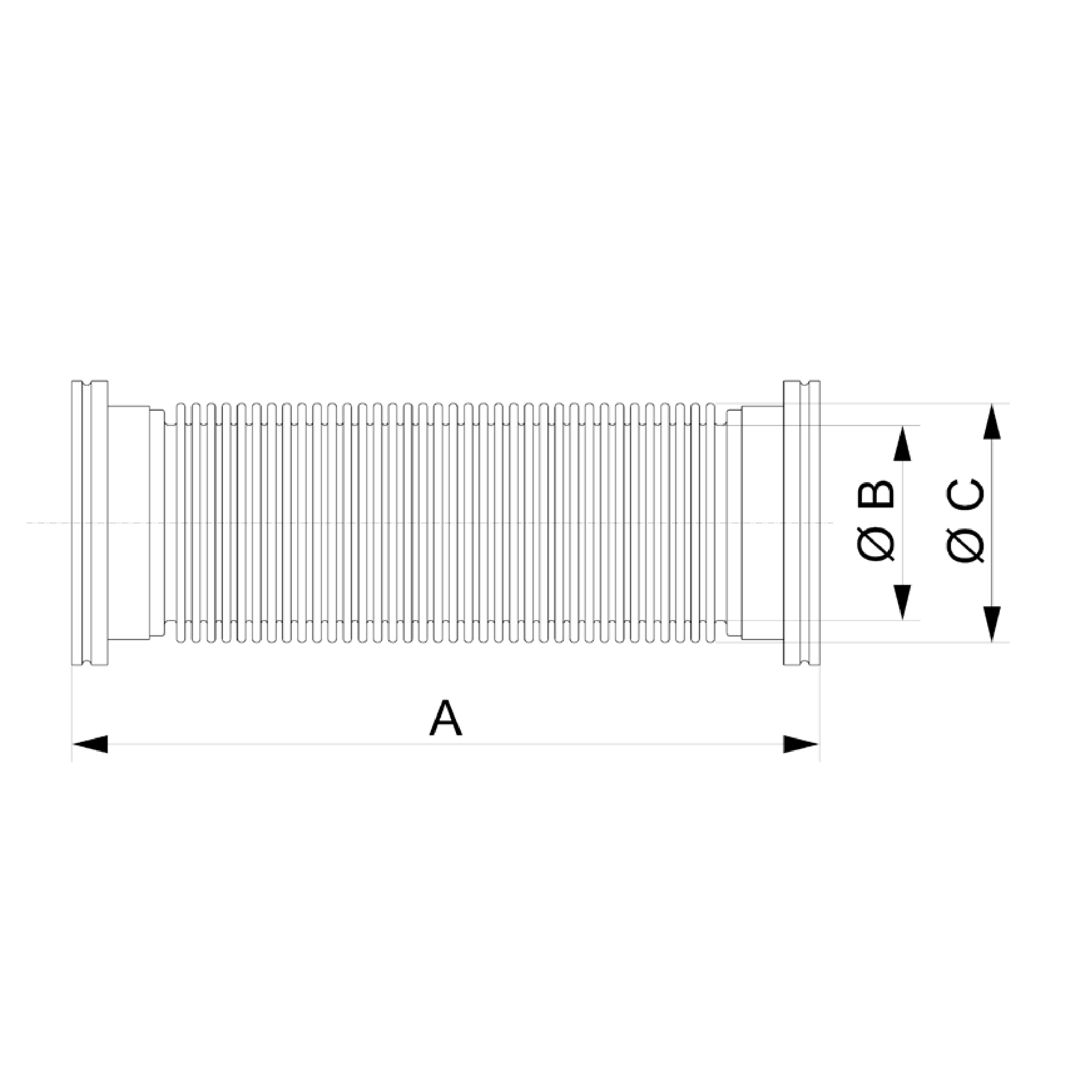

Main Dimensions A, B, C, Bend radius (unique movement), Over pressure max.
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm) Bend radius, unique movement (mm) Over pressure max. (hPa) Order No
63 250 65 80 90 500 VC2HSA1SS063-250
63 500 65 80 90 500 VC2HSA1SS063-500
63 750 65 80 90 500 VC2HSA1SS063-750
63 1000 65 80 90 500 VC2HSA1SS063-1000
63 1500 65 80 90 500 VC2HSA1SS063-1500
100 250 100 119 131 300 VC2HSA1SS100-250
100 500 100 119 131 300 VC2HSA1SS100-500
100 750 100 119 131 300 VC2HSA1SS100-750
100 1000 100 119 131 300 VC2HSA1SS100-1000
100 1500 100 119 131 300 VC2HSA1SS100-1500
160 250 150 173 216 100 VC2HSA1SS160-250
160 500 150 173 216 100 VC2HSA1SS160-500
160 750 150 173 216 100 VC2HSA1SS160-750
160 1000 150 173 216 100 VC2HSA1SS160-1000
160 1500 150 173 216 100 VC2HSA1SS160-1500
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm) Bend radius, unique movement (mm) Over pressure max. (hPa) Order No
63 250 65 80 90 500 VC2HSA2SS063-250
63 500 65 80 90 500 VC2HSA2SS063-500
63 750 65 80 90 500 VC2HSA2SS063-750
63 1000 65 80 90 500 VC2HSA2SS063-1000
63 1500 65 80 90 500 VC2HSA2SS063-1500
100 250 100 119 131 300 VC2HSA2SS100-250
100 500 100 119 131 300 VC2HSA2SS100-500
100 750 100 119 131 300 VC2HSA2SS100-750
100 1000 100 119 131 300 VC2HSA2SS100-1000
100 1500 100 119 131 300 VC2HSA2SS100-1500
160 250 150 173 216 100 VC2HSA2SS160-250
160 500 150 173 216 100 VC2HSA2SS160-500
160 750 150 173 216 100 VC2HSA2SS160-750
160 1000 150 173 216 100 VC2HSA2SS160-1000
160 1500 150 173 216 100 VC2HSA2SS160-1500

Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm) Bend radius, unique movement (mm) Over pressure max. (hPa)
63 250 65 80 90 500
63 500 65 80 90 500
63 750 65 80 90 500
63 1000 65 80 90 500
63 1500 65 80 90 500
100 250 100 119 131 300
100 500 100 119 131 300
100 750 100 119 131 300
100 1000 100 119 131 300
100 1500 100 119 131 300
160 250 150 173 216 100
160 500 150 173 216 100
160 750 150 173 216 100
160 1000 150 173 216 100
160 1500 150 173 216 100
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm) Bend radius, unique movement (mm) Over pressure max. (hPa)
63 250 65 80 90 500
63 500 65 80 90 500
63 750 65 80 90 500
63 1000 65 80 90 500
63 1500 65 80 90 500
100 250 100 119 131 300
100 500 100 119 131 300
100 750 100 119 131 300
100 1000 100 119 131 300
100 1500 100 119 131 300
160 250 150 173 216 100
160 500 150 173 216 100
160 750 150 173 216 100
160 1000 150 173 216 100
160 1500 150 173 216 100

Download Datasheet from here

Request CAD Model
