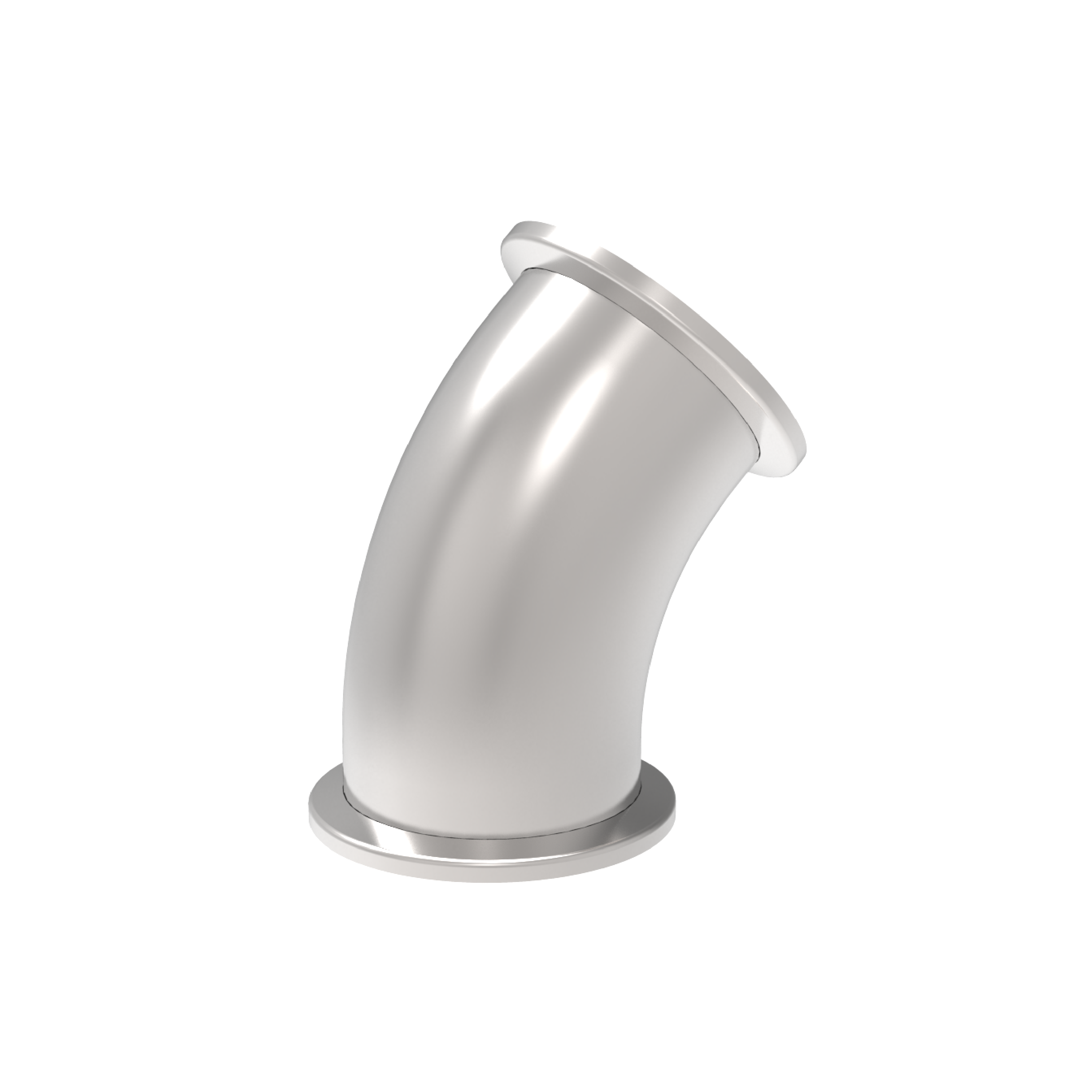

ISO-KF 45 Radius Elbow

Categories ,

Description

Use this ISO-KF 45 degree radius elbow to change the direction of a vacuum line. The 45-degree bend has two KF flanges of the same nominal size.

Choose DN10, DN16, DN25, DN40 or DN50 in stainless steel 304 or 316L.

Request a quote with your required DN, material and quantity.

Request a Quote
Field Data
Product Name ISO-KF 45 Radius Elbow
System ISO-KF
Product Type 45 Radius Elbow
Function 45-degree radius elbow for ISO-KF vacuum line routing
Pressure Range - Elastomer Seal 1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Metal Seal 1 × 10⁻⁹ mbar to 500 mbar over pressure
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Sizes (DN) 10, 16, 25, 40, 50
Main Dimensions A, B
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) Order No
10 30 10 VC1FTI1SS010-45
16 25 16 VC1FTI1SS016-45
25 32 26 VC1FTI1SS025-45
40 40 38 VC1FTI1SS040-45
50 50 50 VC1FTI1SS050-45
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) Order No
10 30 10 VC1FTI2SS010-45
16 25 16 VC1FTI2SS016-45
25 32 26 VC1FTI2SS025-45
40 40 38 VC1FTI2SS040-45
50 50 50 VC1FTI2SS050-45

Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm)
10 30 10
16 25 16
25 32 26
40 40 38
50 50 50
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm)
10 30 10
16 25 16
25 32 26
40 40 38
50 50 50
