ISO-KF Tee

Categories ,

Description

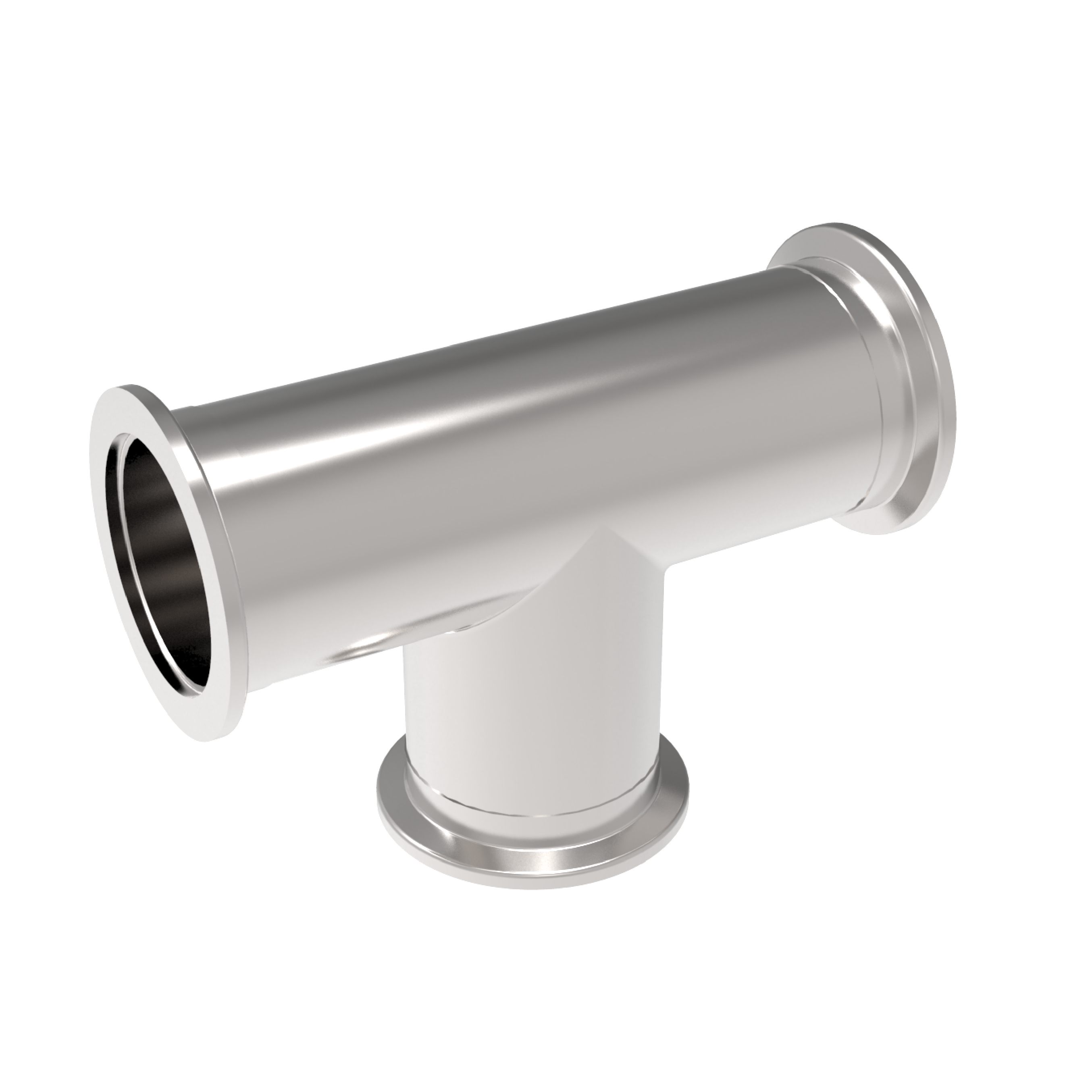

This ISO-KF tee creates a 90° branch in a vacuum line. This equal T-piece has three ports of the same nominal flange size.

Choose stainless steel 304 or 316L in DN10, DN16, DN25, DN40 or DN50. Each version uses tubing with a 1.5 mm wall thickness.

Request a quote with your required DN, material and quantity.

Request a Quote
Field Data
Product Name ISO-KF Tee
System ISO-KF
Product Type Tee
Function Tee fitting for ISO-KF vacuum line branching
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Pressure Range - Stainless Steel 304 / 1.4301, Elastomer Seal 1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Stainless Steel 304 / 1.4301, Metal Seal 1 × 10⁻⁹ mbar to 500 mbar over pressure
Pressure Range - Stainless Steel 316L / 1.4404, Elastomer Seal 1 × 10⁻⁸ mbar to 1.5 bar over pressure
Pressure Range - Stainless Steel 316L / 1.4404, Metal Seal 1 × 10⁻⁹ mbar to 1.5 bar over pressure
Available Sizes (DN) 10, 16, 25, 40, 50
Tube Dimensions (mm) 13x1.5, 19x1.5, 29x1.5, 41x1.5, 53x1.5

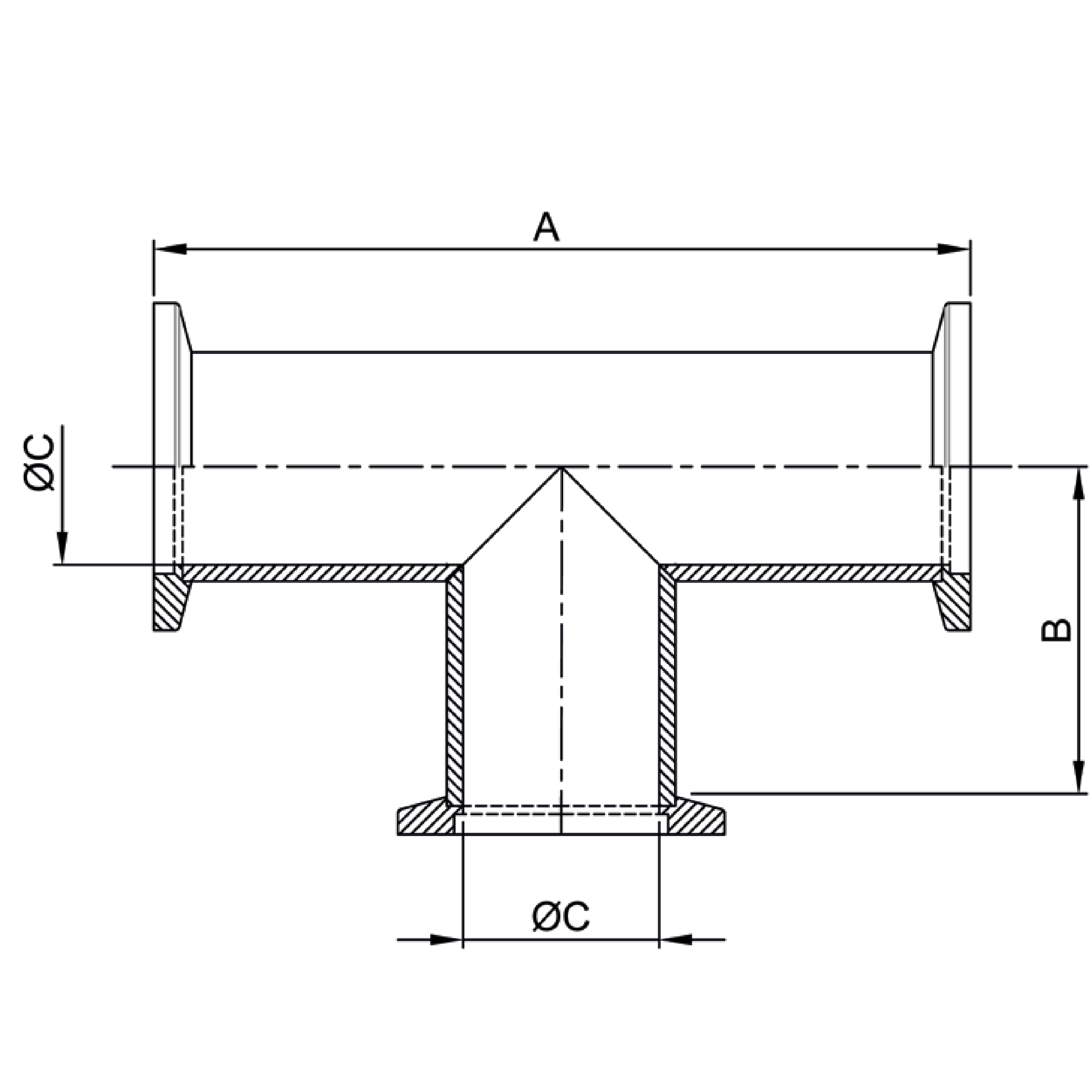

Main Dimensions A, B, C, D
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) Order No
10 13x1.5 60 30 10 13 VC1FTC1SS010
16 19x1.5 77 38.5 16 19 VC1FTC1SS016
25 29x1.5 107 53.5 26 29 VC1FTC1SS025
40 41x1.5 127 63.5 38 41 VC1FTC1SS040
50 53x1.5 148 74 50 53 VC1FTC1SS050
Stainless Steel 316L / 1.4404
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) Order No
10 13x1.5 60 30 10 13 VC1FTC2SS010
16 19x1.5 77 38.5 16 19 VC1FTC2SS016
25 29x1.5 107 53.5 26 29 VC1FTC2SS025
40 41x1.5 127 63.5 38 41 VC1FTC2SS040
50 53x1.5 148 74 50 53 VC1FTC2SS050

Stainless Steel 304 / 1.4301
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm)
10 13x1.5 60 30 10 13
16 19x1.5 77 38.5 16 19
25 29x1.5 107 53.5 26 29
40 41x1.5 127 63.5 38 41
50 53x1.5 148 74 50 53
Stainless Steel 316L / 1.4404
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm)
10 13x1.5 60 30 10 13
16 19x1.5 77 38.5 16 19
25 29x1.5 107 53.5 26 29
40 41x1.5 127 63.5 38 41
50 53x1.5 148 74 50 53
