ISO-KF 90 Radius Elbow
ISO-KF 90 Radius Elbow - Image 2

ISO-KF 90 Radius Elbow

Categories ,

Description

The ISO-KF 90 Radius Elbow is designed for ISO-KF vacuum systems that require a 90-degree directional change with a radius bend for smoother flow transition and compact line routing. Based on the product sheet image, the catalog lists a pressure range of 1 × 10⁻⁸ mbar to 500 mbar over pressure for elastomer seal and 1 × 10⁻⁹ mbar to 500 mbar over pressure for metal seal. It is available in Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404, with standard sizes from DN10 to DN50.

Request a Quote
Field Data
Product Name ISO-KF 90 Radius Elbow
System ISO-KF
Product Type 90 Radius Elbow
Function 90-degree radius elbow for ISO-KF vacuum line routing
Pressure Range - Elastomer Seal 1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Metal Seal 1 × 10⁻⁹ mbar to 500 mbar over pressure
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Sizes (DN) 10, 16, 25, 40, 50

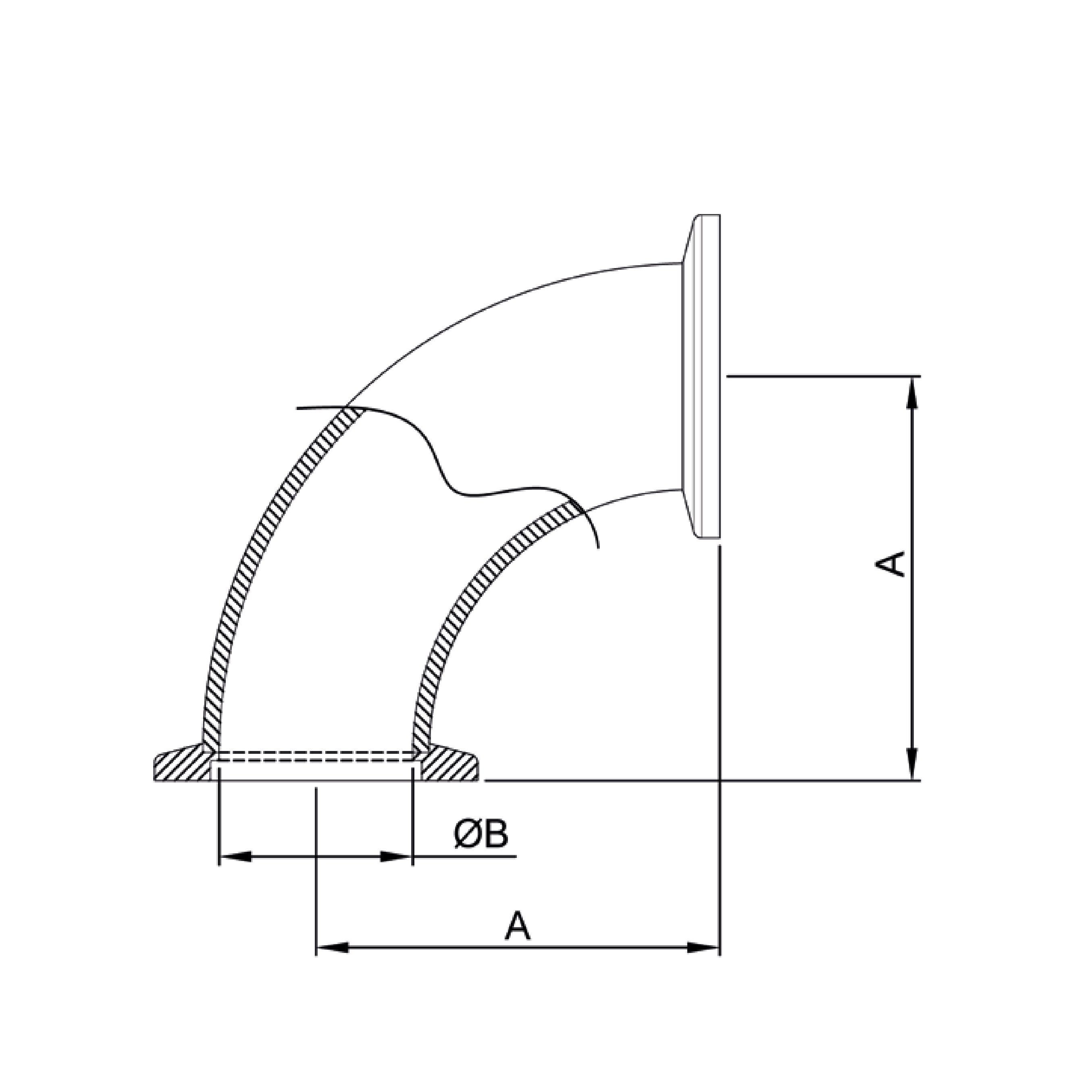

Main Dimensions A, B
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) Order No
10 30 10 VC1FTH1SS010-90
16 38.5 16 VC1FTH1SS016-90
25 53.5 26 VC1FTH1SS025-90
40 63.5 38 VC1FTH1SS040-90
50 74 50 VC1FTH1SS050-90
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) Order No
10 30 10 VC1FTH2SS010-90
16 38.5 16 VC1FTH2SS016-90
25 53.5 26 VC1FTH2SS025-90
40 63.5 38 VC1FTH2SS040-90
50 74 50 VC1FTH2SS050-90

Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm)
10 30 10
16 38.5 16
25 53.5 26
40 63.5 38
50 74 50
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm)
10 30 10
16 38.5 16
25 53.5 26
40 63.5 38
50 74 50

Download Datasheet from here

Request CAD Model
