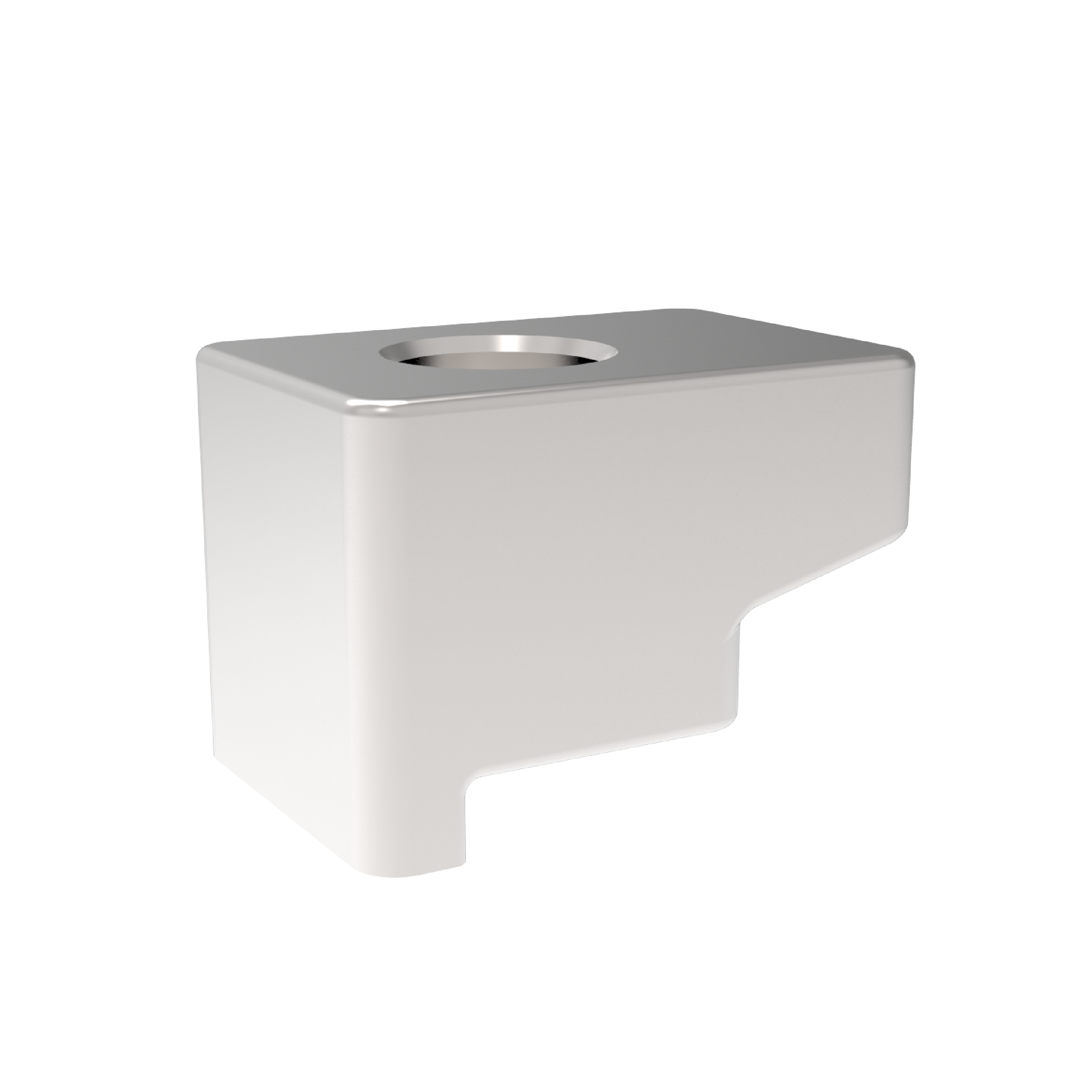

| Field | Data |
|---|---|
| Product Name | ISO-KF Claw (Wall) Clamp |
| System | ISO-KF |
| Product Type | Claw (Wall) Clamp |
| Application | For installing on a base plate with KF centering ring |
| Seal Compatibility | Suitable for use with elastomer seals |
| Function | Single claw clamp for bolting KF flanges to bulkheads |
| Alternative Use | Can be used instead of bulkhead clamps |
| Construction Notes | Spring-loaded lock-washers |
| Versions | Short and long versions available |
| Materials | Aluminium EN AW-6082 / 3.2315, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Hardware | Bolt: A2-70 stainless steel, hexagon head, M6 × 20 mm |
| Pressure Range | 10⁻⁷ mbar to 2.5 bar |
| Max Torque | 8 Nm |
| Mounting Requirement | 4 × 90° tapped holes |
| Thread Requirement | M6 |
| Minimum Thread Depth | 6 mm |
| Temperature Range - Aluminium | -196 to 200 °C |
| Temperature Range - Stainless Steel 304 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L | -196 to 350 °C |

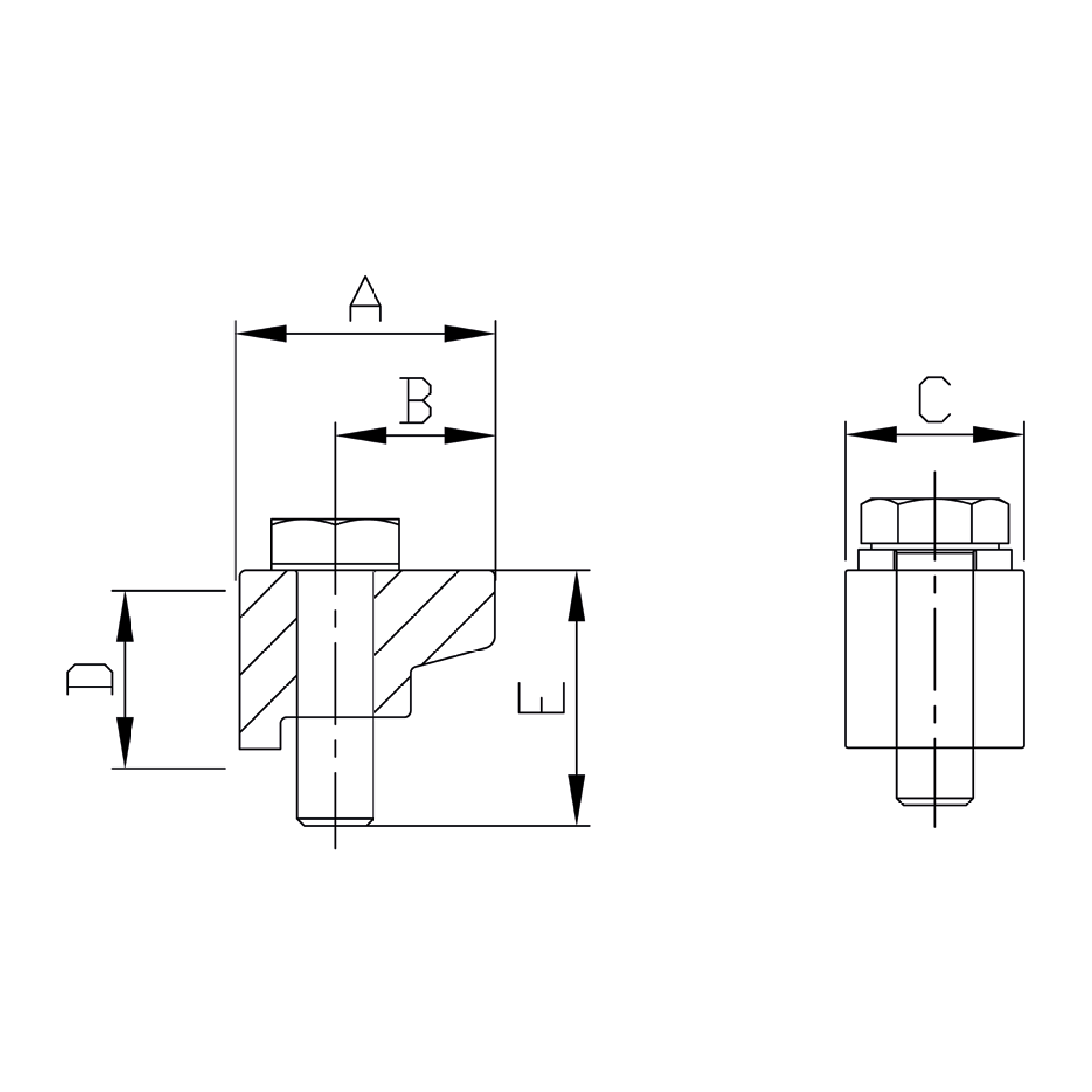

| Main Dimensions | A, B, C, D, E |
