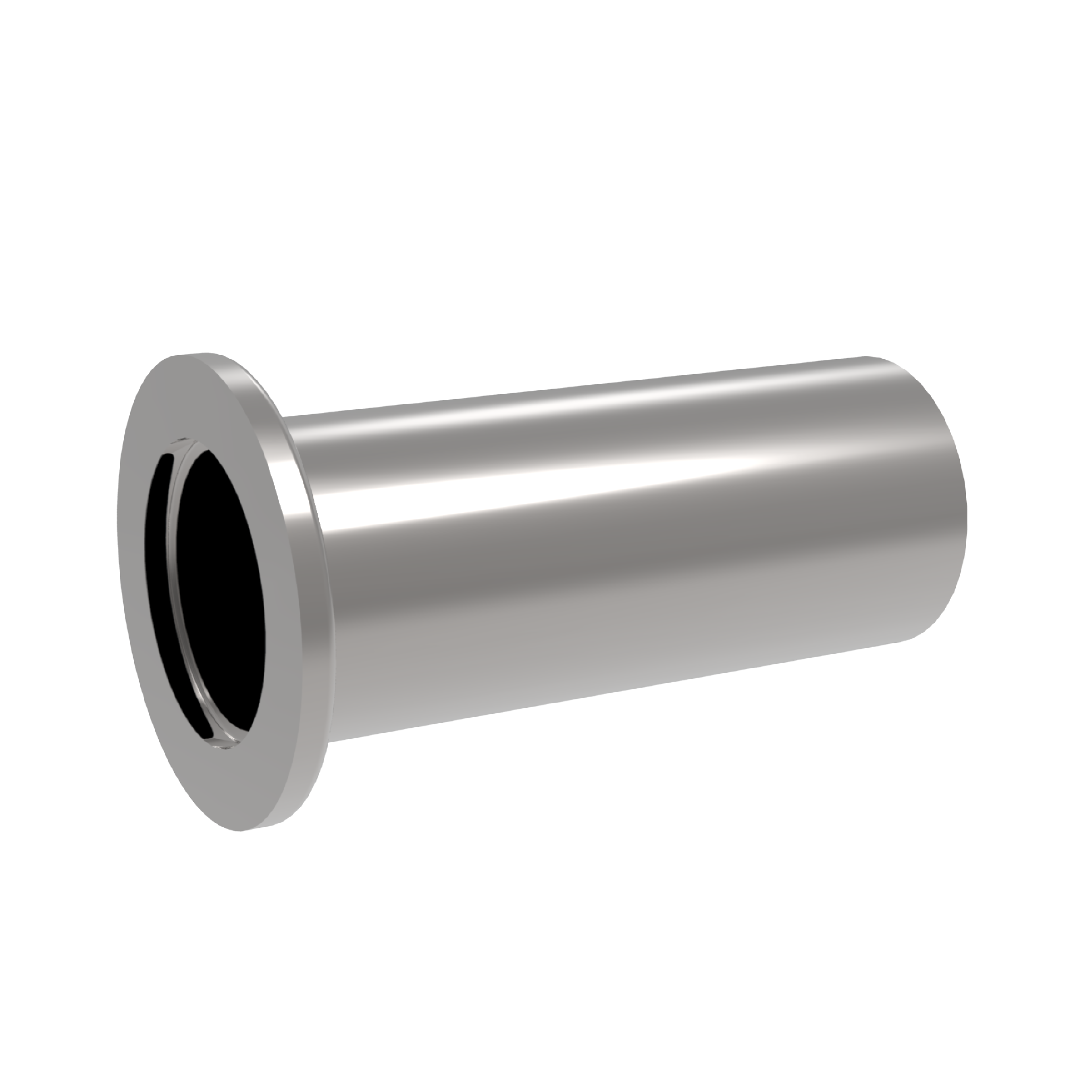

ISO-KF Long Half Flange
ISO-KF Long Half Flange - Image 2

ISO-KF Long Half Flange

SKU vc1flb1ss016-20-60 Categories ,

Description

The ISO-KF Long Half Flange is designed for ISO-KF vacuum systems where an extended half flange connection is required for stable and reliable vacuum line integration. The catalog lists a pressure range of 1 × 10⁻⁸ mbar to 1.5 bar for elastomer seal and 1 × 10⁻⁹ mbar to 1.5 bar for metal seal for Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404, and it also notes that custom lengths are available upon request. It is available in Aluminium EN AW-6082 / 3.2315, Stainless Steel 304 / 1.4301, and Stainless Steel 316L / 1.4404.

Request a Quote
Field Data
Product Name ISO-KF Long Half Flange
System ISO-KF
Product Type Long Half Flange
Function Long half flange for ISO-KF vacuum connections
Pressure Range - Elastomer Seal 1 × 10⁻⁸ mbar to 1.5 bar
Pressure Range - Metal Seal 1 × 10⁻⁹ mbar to 1.5 bar
Metal Seal Note Listed for Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404
Custom Lengths Available upon request
Material Versions Aluminium EN AW-6082 / 3.2315, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Sizes (DN) 10, 16, 20, 25, 32, 40, 50

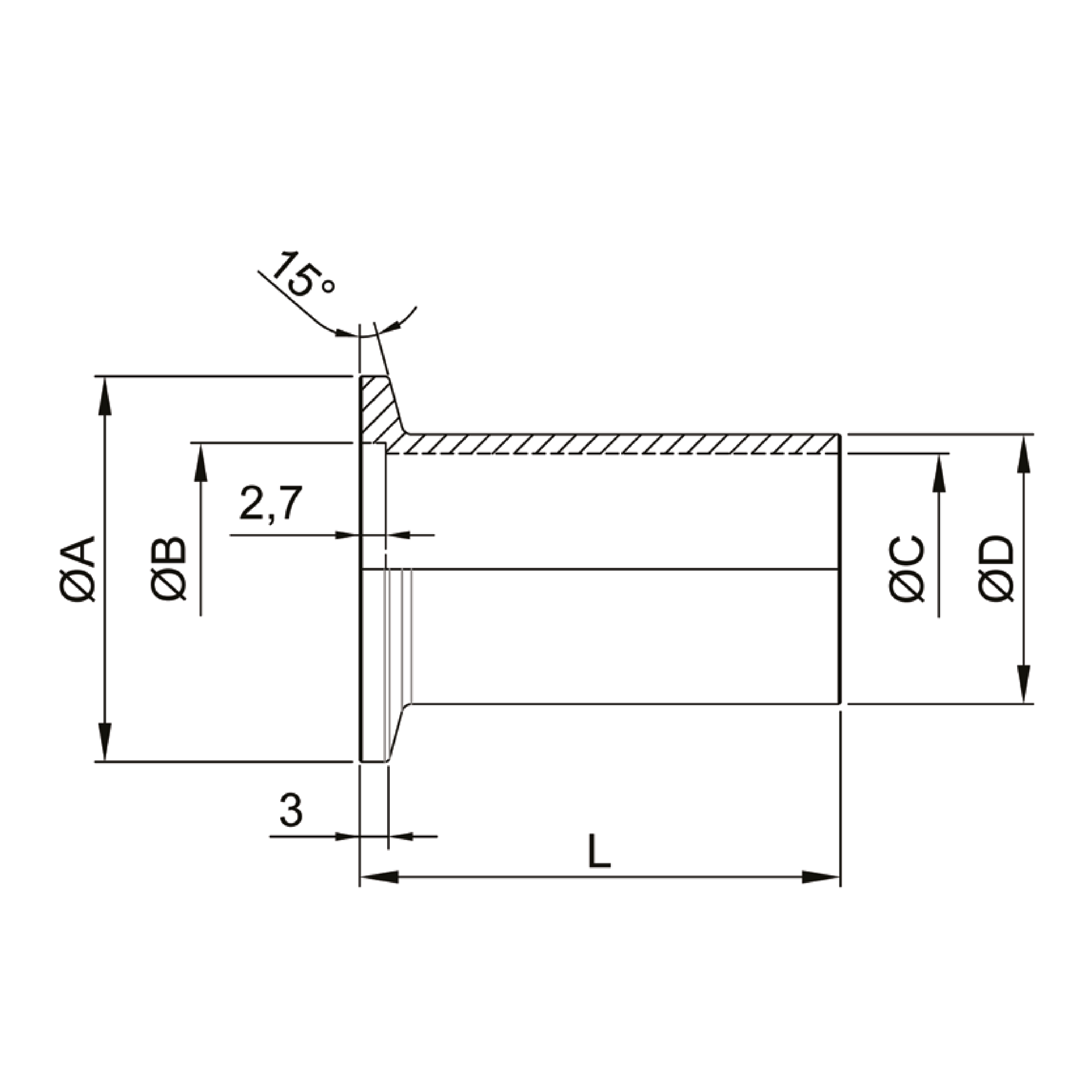

Main Dimensions Tube Dimension, A, B, C, D, L
Temperature Range - Aluminium EN AW-6082 / 3.2315 -196 to 150 °C
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Aluminium EN AW-6082 / 3.2315
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
10 14X2 30 12.2 10 14 40 VC1FLB1AL010-14-40
10 14X2 30 12.2 10 14 50 VC1FLB1AL010-14-50
10 14X2 30 12.2 10 14 60 VC1FLB1AL010-14-60
16 20X2 30 17.2 16 20 40 VC1FLB1AL016-20-40
16 20X2 30 17.2 16 20 50 VC1FLB1AL016-20-50
16 20X2 30 17.2 16 20 60 VC1FLB1AL016-20-60
20 25X2 40 22.2 20 25 40 VC1FLB1AL020-25-40
20 25X2 40 22.2 20 25 50 VC1FLB1AL020-25-50
20 25X2 40 22.2 20 25 60 VC1FLB1AL020-25-60
25 28X2 40 26.2 24 28 40 VC1FLB1AL025-28-40
25 28X2 40 26.2 24 28 50 VC1FLB1AL025-28-50
25 28X2 40 26.2 24 28 60 VC1FLB1AL025-28-60
32 38X2 55 34.2 34 38 40 VC1FLB1AL032-38-40
32 38X2 55 34.2 34 38 50 VC1FLB1AL032-38-50
32 38X2 55 34.2 34 38 60 VC1FLB1AL032-38-60
40 44.5X2 55 41.2 40.5 44.5 40 VC1FLB1AL040-44-40
40 44.5X2 55 41.2 40.5 44.5 50 VC1FLB1AL040-44-50
40 44.5X2 55 41.2 40.5 44.5 60 VC1FLB1AL040-44-60
50 57X3.2 75 52.2 50 57 40 VC1FLB1AL050-57-40
50 57X3.2 75 52.2 50 57 50 VC1FLB1AL050-57-50
50 57X3.2 75 52.2 50 57 60 VC1FLB1AL050-57-60
Stainless Steel 304 / 1.4301
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
10 14X2 30 12.2 10 14 40 VC1FLB1SS010-14-40
10 14X2 30 12.2 10 14 50 VC1FLB1SS010-14-50
10 14X2 30 12.2 10 14 60 VC1FLB1SS010-14-60
16 20X2 30 17.2 16 20 40 VC1FLB1SS016-20-40
16 20X2 30 17.2 16 20 50 VC1FLB1SS016-20-50
16 20X2 30 17.2 16 20 60 VC1FLB1SS016-20-60
20 25X2 40 22.2 20 25 40 VC1FLB1SS020-25-40
20 25X2 40 22.2 20 25 50 VC1FLB1SS020-25-50
20 25X2 40 22.2 20 25 60 VC1FLB1SS020-25-60
25 28X2 40 26.2 24 28 40 VC1FLB1SS025-28-40
25 28X2 40 26.2 24 28 50 VC1FLB1SS025-28-50
25 28X2 40 26.2 24 28 60 VC1FLB1SS025-28-60
32 38X2 55 34.2 34 38 40 VC1FLB1SS032-38-40
32 38X2 55 34.2 34 38 50 VC1FLB1SS032-38-50
32 38X2 55 34.2 34 38 60 VC1FLB1SS032-38-60
40 44.5X2 55 41.2 40.5 44.5 40 VC1FLB1SS040-44-40
40 44.5X2 55 41.2 40.5 44.5 50 VC1FLB1SS040-44-50
40 44.5X2 55 41.2 40.5 44.5 60 VC1FLB1SS040-44-60
50 57X3.2 75 52.2 50 57 40 VC1FLB1SS050-57-40
50 57X3.2 75 52.2 50 57 50 VC1FLB1SS050-57-50
50 57X3.2 75 52.2 50 57 60 VC1FLB1SS050-57-60
Stainless Steel 316L / 1.4404
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
10 14X2 30 12.2 10 14 40 VC1FLB2SS010-14-40
10 14X2 30 12.2 10 14 50 VC1FLB2SS010-14-50
10 14X2 30 12.2 10 14 60 VC1FLB2SS010-14-60
16 20X2 30 17.2 16 20 40 VC1FLB2SS016-20-40
16 20X2 30 17.2 16 20 50 VC1FLB2SS016-20-50
16 20X2 30 17.2 16 20 60 VC1FLB2SS016-20-60
20 25X2 40 22.2 20 25 40 VC1FLB2SS020-25-40
20 25X2 40 22.2 20 25 50 VC1FLB2SS020-25-50
20 25X2 40 22.2 20 25 60 VC1FLB2SS020-25-60
25 28X2 40 26.2 24 28 40 VC1FLB2SS025-28-40
25 28X2 40 26.2 24 28 50 VC1FLB2SS025-28-50
25 28X2 40 26.2 24 28 60 VC1FLB2SS025-28-60
32 38X2 55 34.2 34 38 40 VC1FLB2SS032-38-40
32 38X2 55 34.2 34 38 50 VC1FLB2SS032-38-50
32 38X2 55 34.2 34 38 60 VC1FLB2SS032-38-60
40 44.5X2 55 41.2 40.5 44.5 40 VC1FLB2SS040-44-40
40 44.5X2 55 41.2 40.5 44.5 50 VC1FLB2SS040-44-50
40 44.5X2 55 41.2 40.5 44.5 60 VC1FLB2SS040-44-60
50 57X3.2 75 52.2 50 57 40 VC1FLB2SS050-57-40
50 57X3.2 75 52.2 50 57 50 VC1FLB2SS050-57-50
50 57X3.2 75 52.2 50 57 60 VC1FLB2SS050-57-60

Aluminium EN AW-6082 / 3.2315

Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm)
10 14X2 30 12.2 10 14 40
10 14X2 30 12.2 10 14 50
10 14X2 30 12.2 10 14 60
16 20X2 30 17.2 16 20 40
16 20X2 30 17.2 16 20 50
16 20X2 30 17.2 16 20 60
20 25X2 40 22.2 20 25 40
20 25X2 40 22.2 20 25 50
20 25X2 40 22.2 20 25 60
25 28X2 40 26.2 24 28 40
25 28X2 40 26.2 24 28 50
25 28X2 40 26.2 24 28 60
32 38X2 55 34.2 34 38 40
32 38X2 55 34.2 34 38 50
32 38X2 55 34.2 34 38 60
40 44.5X2 55 41.2 40.5 44.5 40
40 44.5X2 55 41.2 40.5 44.5 50
40 44.5X2 55 41.2 40.5 44.5 60
50 57X3.2 75 52.2 50 57 40
50 57X3.2 75 52.2 50 57 50
50 57X3.2 75 52.2 50 57 60
Stainless Steel 304 / 1.4301
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm)
10 14X2 30 12.2 10 14 40
10 14X2 30 12.2 10 14 50
10 14X2 30 12.2 10 14 60
16 20X2 30 17.2 16 20 40
16 20X2 30 17.2 16 20 50
16 20X2 30 17.2 16 20 60
20 25X2 40 22.2 20 25 40
20 25X2 40 22.2 20 25 50
20 25X2 40 22.2 20 25 60
25 28X2 40 26.2 24 28 40
25 28X2 40 26.2 24 28 50
25 28X2 40 26.2 24 28 60
32 38X2 55 34.2 34 38 40
32 38X2 55 34.2 34 38 50
32 38X2 55 34.2 34 38 60
40 44.5X2 55 41.2 40.5 44.5 40
40 44.5X2 55 41.2 40.5 44.5 50
40 44.5X2 55 41.2 40.5 44.5 60
50 57X3.2 75 52.2 50 57 40
50 57X3.2 75 52.2 50 57 50
50 57X3.2 75 52.2 50 57 60
Stainless Steel 316L / 1.4404
Size (DN) Tube Dimension (mm) A (mm) B (mm) C (mm) D (mm) L (mm)
10 14X2 30 12.2 10 14 40
10 14X2 30 12.2 10 14 50
10 14X2 30 12.2 10 14 60
16 20X2 30 17.2 16 20 40
16 20X2 30 17.2 16 20 50
16 20X2 30 17.2 16 20 60
20 25X2 40 22.2 20 25 40
20 25X2 40 22.2 20 25 50
20 25X2 40 22.2 20 25 60
25 28X2 40 26.2 24 28 40
25 28X2 40 26.2 24 28 50
25 28X2 40 26.2 24 28 60
32 38X2 55 34.2 34 38 40
32 38X2 55 34.2 34 38 50
32 38X2 55 34.2 34 38 60
40 44.5X2 55 41.2 40.5 44.5 40
40 44.5X2 55 41.2 40.5 44.5 50
40 44.5X2 55 41.2 40.5 44.5 60
50 57X3.2 75 52.2 50 57 40
50 57X3.2 75 52.2 50 57 50
50 57X3.2 75 52.2 50 57 60
