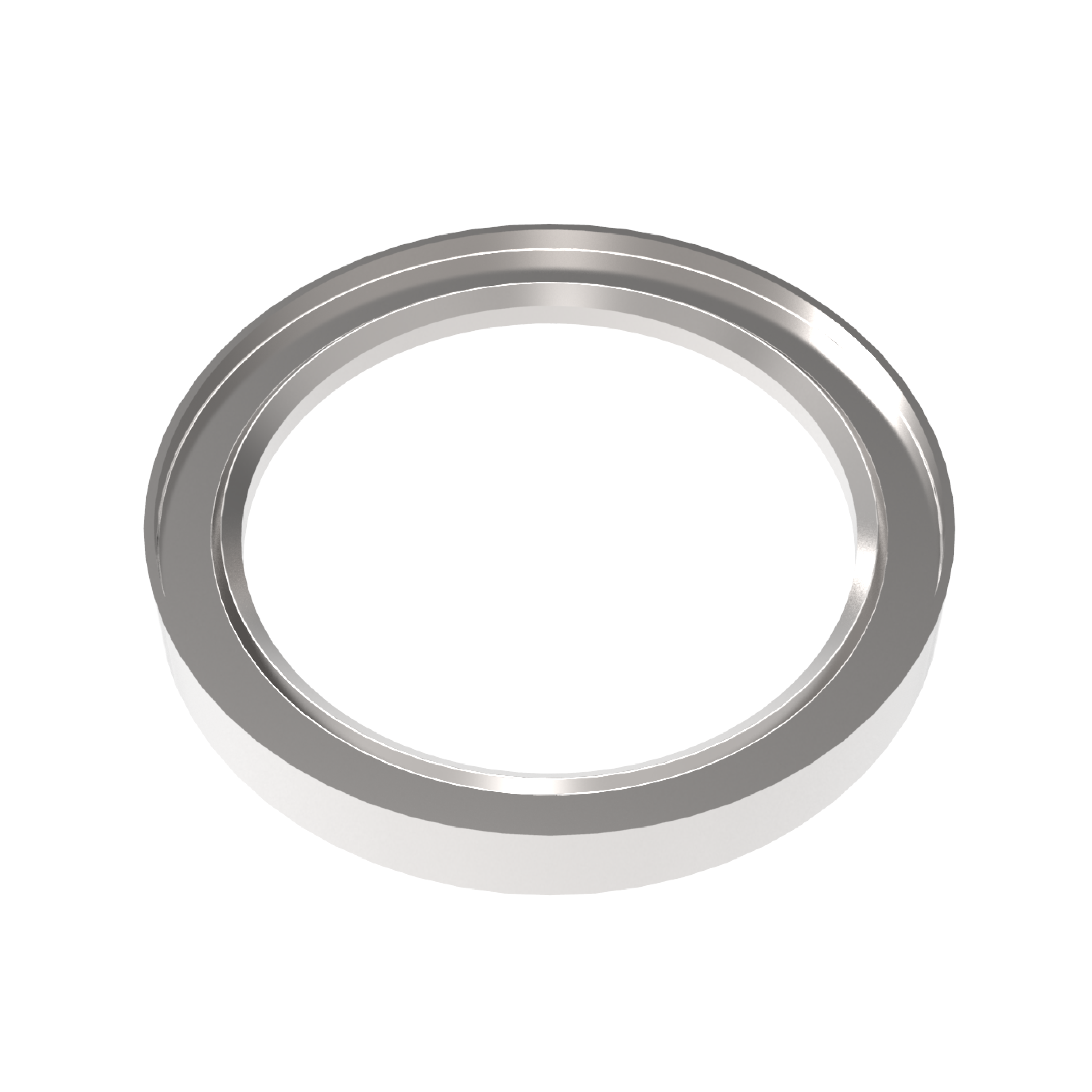

ISO-KF Edge Seal Outer Centered
ISO-KF Edge Seal Outer Centered - Image 2

ISO-KF Edge Seal Outer Centered

Categories ,

Description

The ISO-KF Edge Seal Outer Centered is a metal edge seal designed for ISO-KF vacuum connections where no gas permeation is required. It is suitable for cryo, radiation-tolerant, and nuclear applications, is clean room application compatible, and is intended for stainless steel flanges. The catalog specifies that it is used with an ISO-KF clamp for metal seals and is for single use only. This product is available in Aluminium EN AW-1050 and Copper for the standard size groups 10/16, 20/25, 32/40, and 50.

Request a Quote
Field Data
Product Name ISO-KF Edge Seal Outer Centered
System ISO-KF
Product Type Edge Seal Outer Centered
Sealing Type Metal seal
Centering Type Outer centered
Gas Permeation No gas permeation
Application Notes Cryo, radiation tolerant and nuclear application
Clean Room Compatibility Clean room application compatible
Flange Compatibility For stainless steel flanges
Fastener ISO-KF Clamp for metal seals
Reusability For single use only
Material Versions Aluminium EN AW-1050, Copper
Available Sizes (DN) 10/16, 20/25, 32/40, 50
Main Dimensions A, B, J
Temperature Range - Aluminium EN AW-1050 -196 to 150 °C
Temperature Range - Copper -196 to 200 °C
Aluminium EN AW-1050
Size (DN) A (mm) B (mm) J (mm) Order No
10/16 30 20 23 VC1SLF2AL016
20/25 40 32 33 VC1SLF2AL025
32/40 55 45 48 VC1SLF2AL040
50 75 65 68 VC1SLF2AL050
Copper
Size (DN) A (mm) B (mm) J (mm) Order No
10/16 30 20 23 VC1SLF1CU016
20/25 40 32 33 VC1SLF1CU025
32/40 55 45 48 VC1SLF1CU040
50 75 65 68 VC1SLF1CU050

Aluminium EN AW-1050
Size (DN) A (mm) B (mm) J (mm)
10/16 30 20 23
20/25 40 32 33
32/40 55 45 48
50 75 65 68
Copper
Size (DN) A (mm) B (mm) J (mm)
10/16 30 20 23
20/25 40 32 33
32/40 55 45 48
50 75 65 68

Download Datasheet from here
