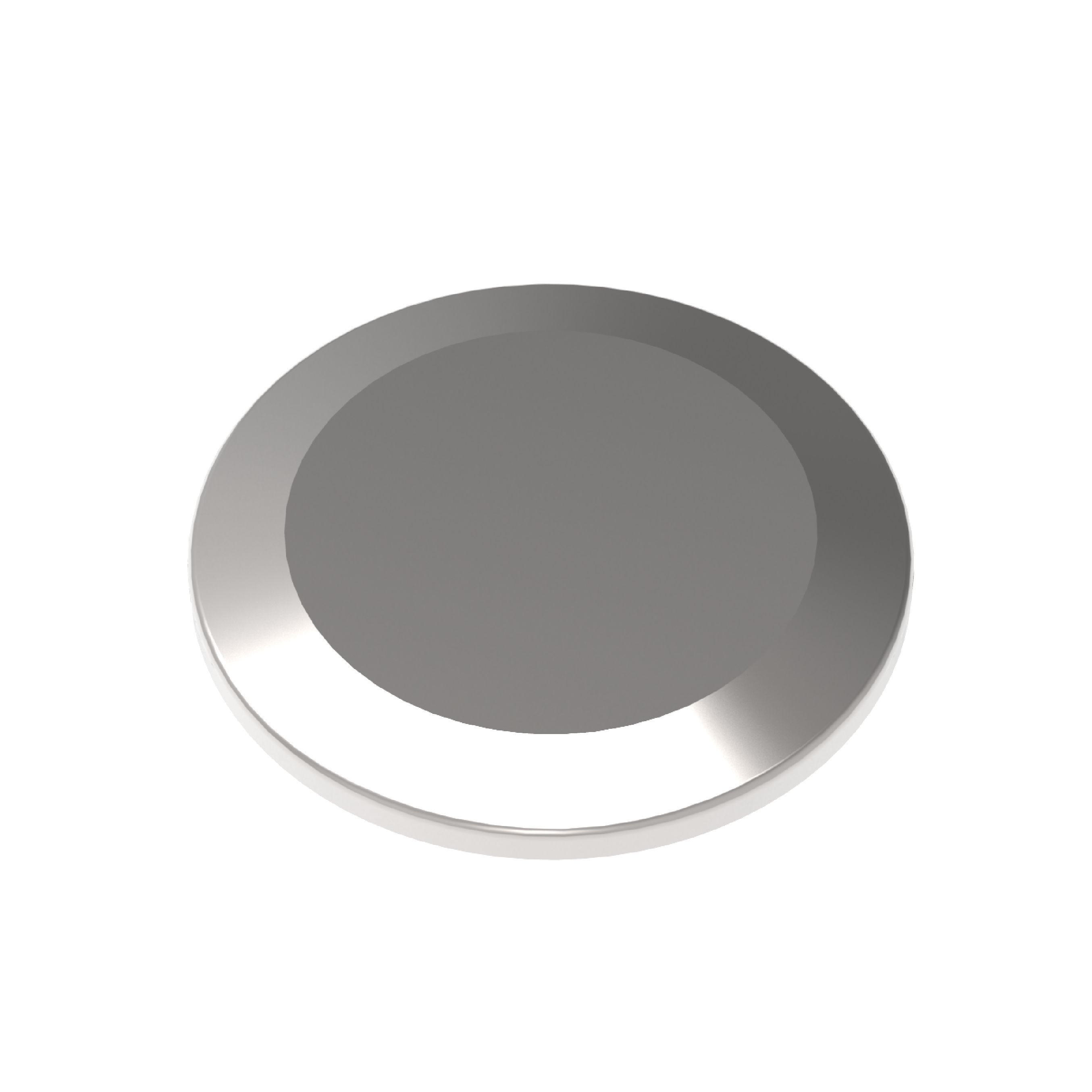

ISO-KF Blanking Flange

Categories ,

Description

The ISO-KF Blanking Flange closes unused ports in KF vacuum systems. Use this KF blank flange with a matching centering ring, seal and clamp.

Choose DN10–DN50 in aluminium 6082, stainless steel 304 or 316L. This blind flange provides a removable closure for compatible vacuum connections.

Request a quote with your required size, material and quantity.

Request a Quote
Field Data
Product Name ISO-KF Blanking Flange
System ISO-KF
Product Type Blanking Flange
Function Blanking flange for closing ISO-KF vacuum ports
Pressure Range - Elastomer Seal 1 × 10⁻⁸ mbar to 1.5 bar
Pressure Range - Metal Seal 1 × 10⁻⁹ mbar to 1.5 bar
Material Versions Aluminium EN AW-6082 / 3.2315, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Sizes (DN) 10, 16, 20, 25, 32, 40, 50

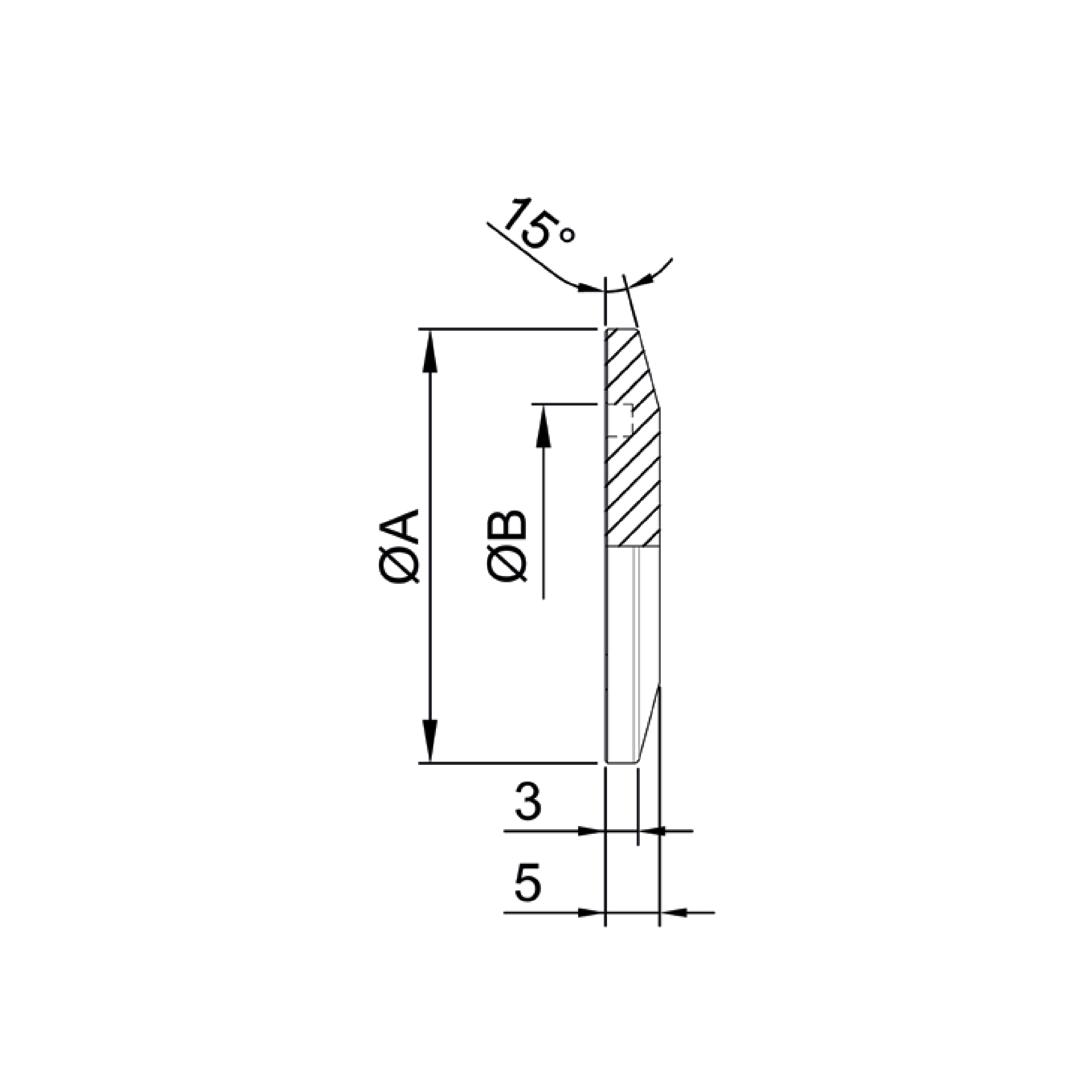

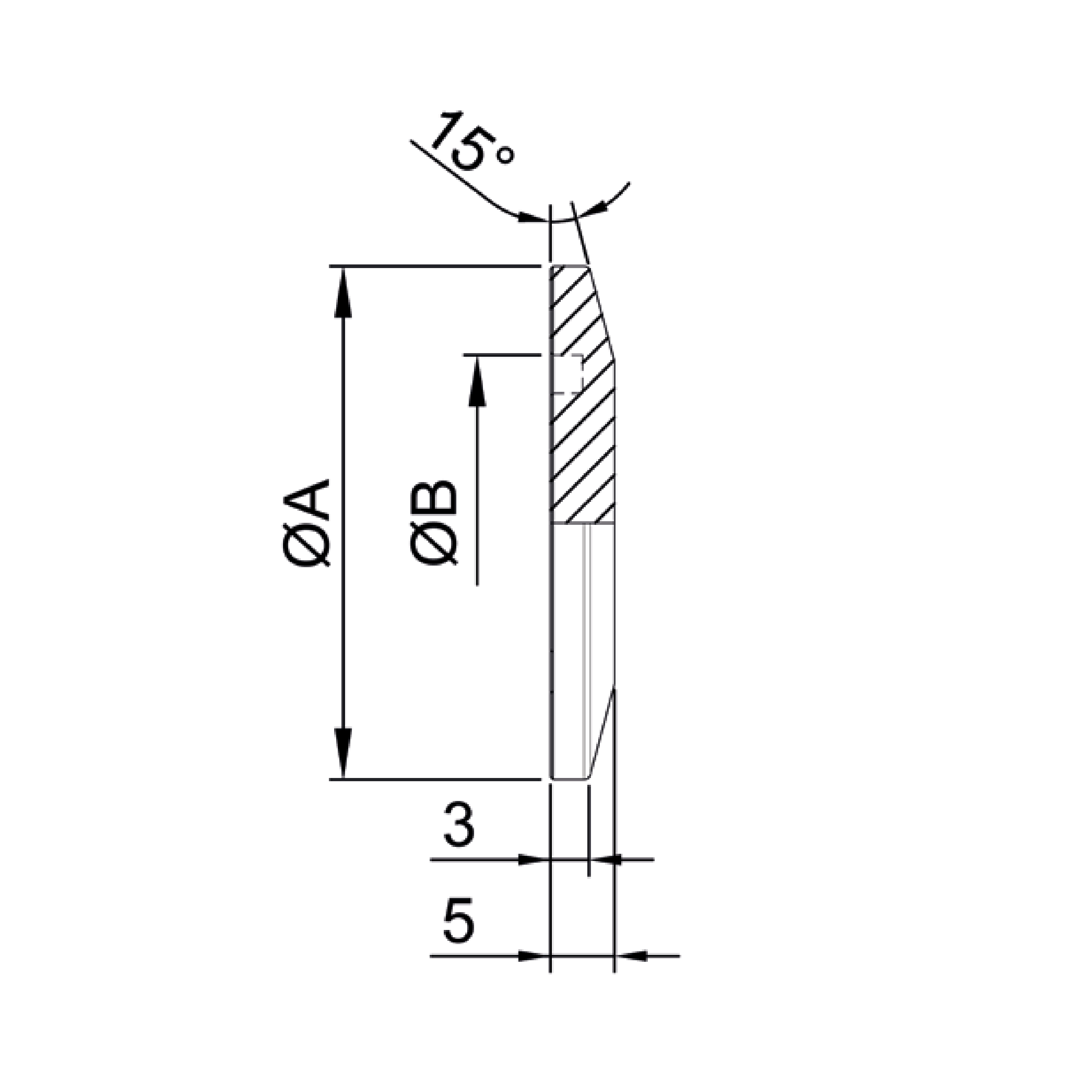

Main Dimensions A, B
Temperature Range - Aluminium EN AW-6082 / 3.2315 -196 to 150 °C
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Aluminium EN AW-6082 / 3.2315
Size (DN) A (mm) B (mm) Order No
10 30 12.2 VC1FLD1AL010
16 30 17.2 VC1FLD1AL016
20 40 22.2 VC1FLD1AL020
25 40 26.2 VC1FLD1AL025
32 55 34.2 VC1FLD1AL032
40 55 41.2 VC1FLD1AL040
50 75 52.2 VC1FLD1AL050
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) Order No
10 30 12.2 VC1FLD1SS010
16 30 17.2 VC1FLD1SS016
20 40 22.2 VC1FLD1SS020
25 40 26.2 VC1FLD1SS025
32 55 34.2 VC1FLD1SS032
40 55 41.2 VC1FLD1SS040
50 75 52.2 VC1FLD1SS050
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) Order No
10 30 12.2 VC1FLD2SS010
16 30 17.2 VC1FLD2SS016
20 40 22.2 VC1FLD2SS020
25 40 26.2 VC1FLD2SS025
32 55 34.2 VC1FLD2SS032
40 55 41.2 VC1FLD2SS040
50 75 52.2 VC1FLD2SS050

Aluminium EN AW-6082 / 3.2315

Size (DN) A (mm) B (mm)
10 30 12.2
16 30 17.2
20 40 22.2
25 40 26.2
32 55 34.2
40 55 41.2
50 75 52.2
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm)
10 30 12.2
16 30 17.2
20 40 22.2
25 40 26.2
32 55 34.2
40 55 41.2
50 75 52.2
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm)
10 30 12.2
16 30 17.2
20 40 22.2
25 40 26.2
32 55 34.2
40 55 41.2
50 75 52.2
