| Field | Data |
|---|---|

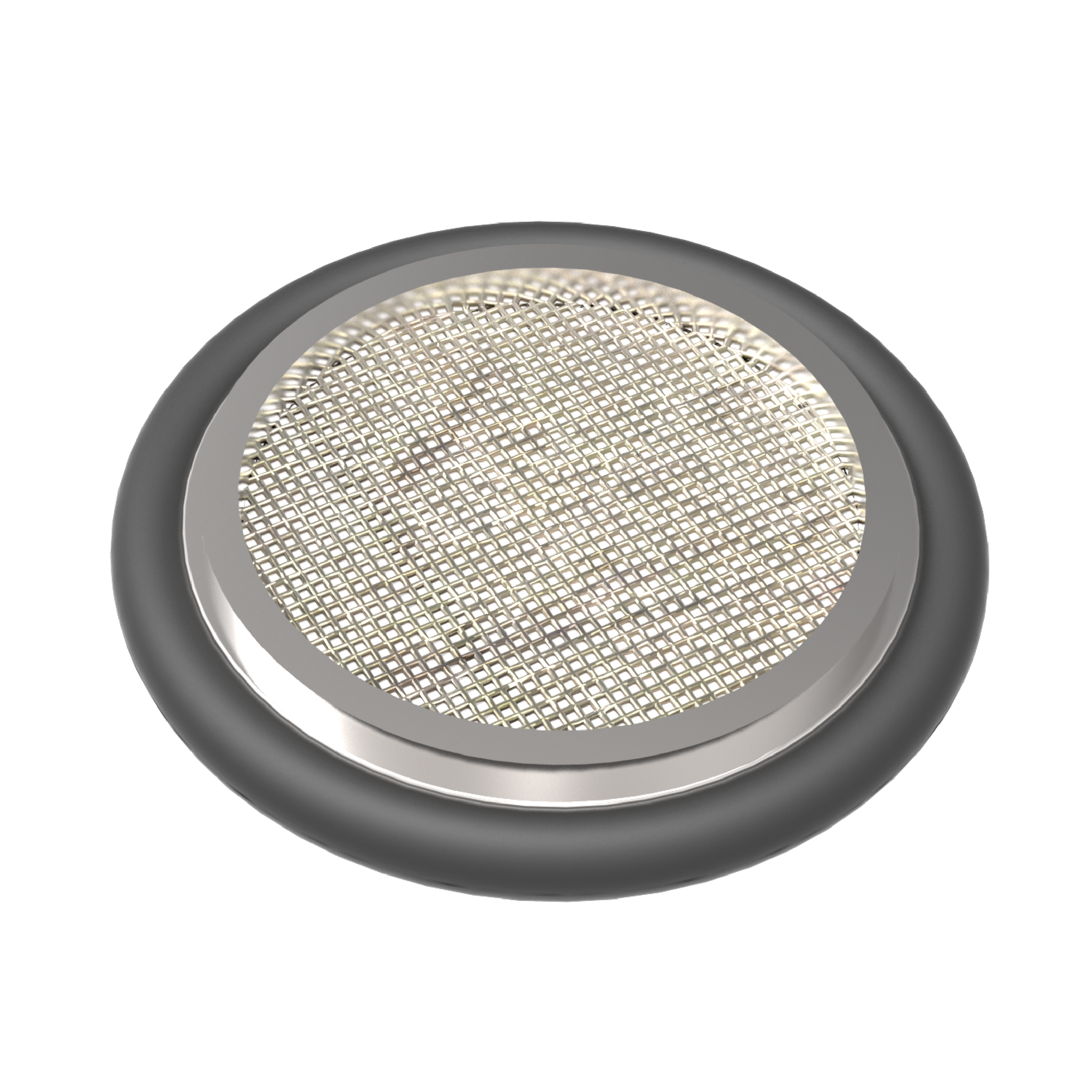

| Product Name | ISO-KF Seal Inner Centered with Mesh Screen |
| System | ISO-KF |
| Product Type | Seal Inner Centered with Mesh Screen |
| Seal Type | Inner centered |
| Filter Material | Stainless Steel |
| Wire Thickness | Approximately 0.3 mm |
| Mesh | Approximately 1 mm |
| O-ring Options | Various types of O-ring seals are available |
| Catalog Note | Consider O-ring temperature ranges |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| O-ring Material Shown on Page | FKM |
| Available Sizes (DN) | 10, 16, 25, 40, 50 |

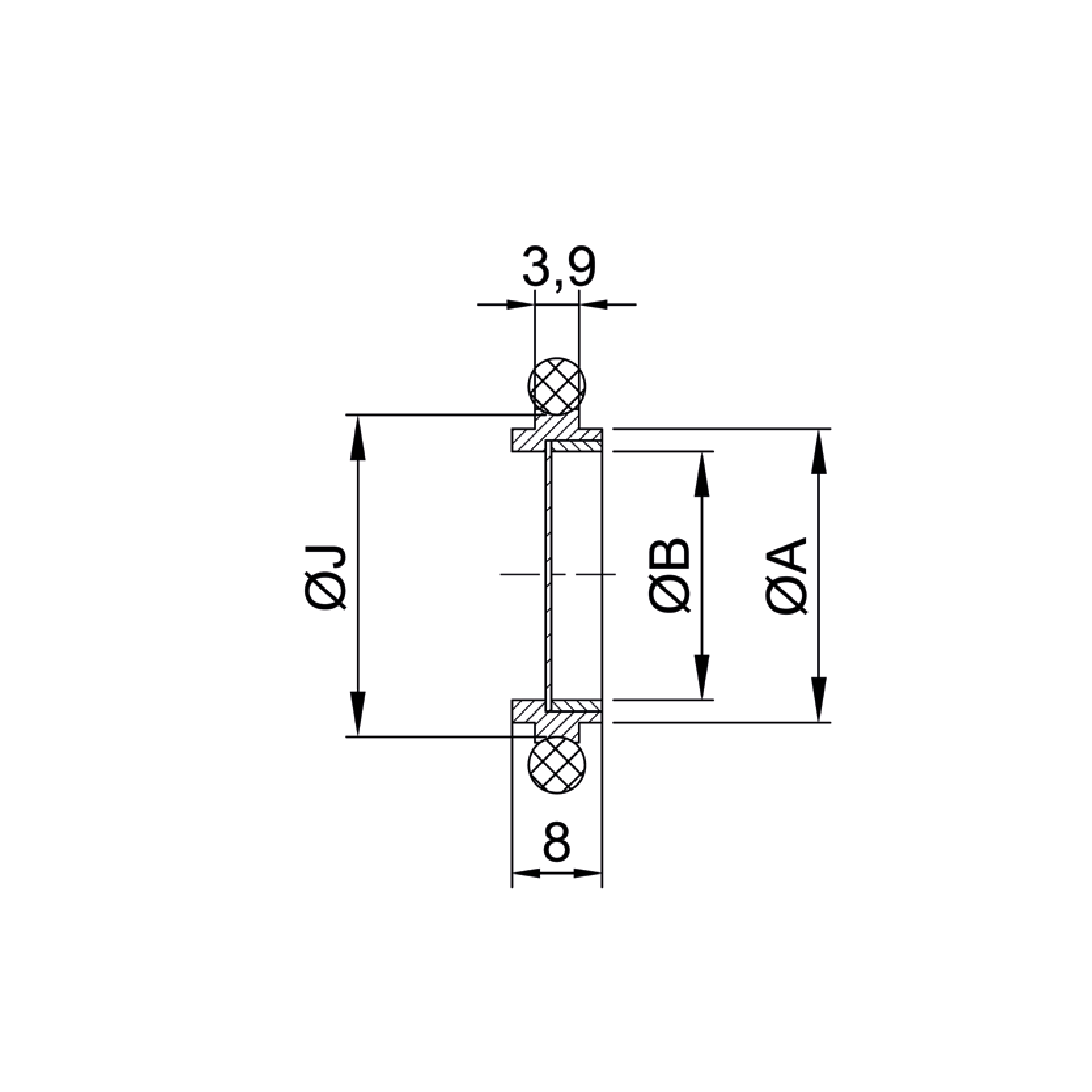

| Main Dimensions | A, B, J |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
