| Field | Data |
|---|---|

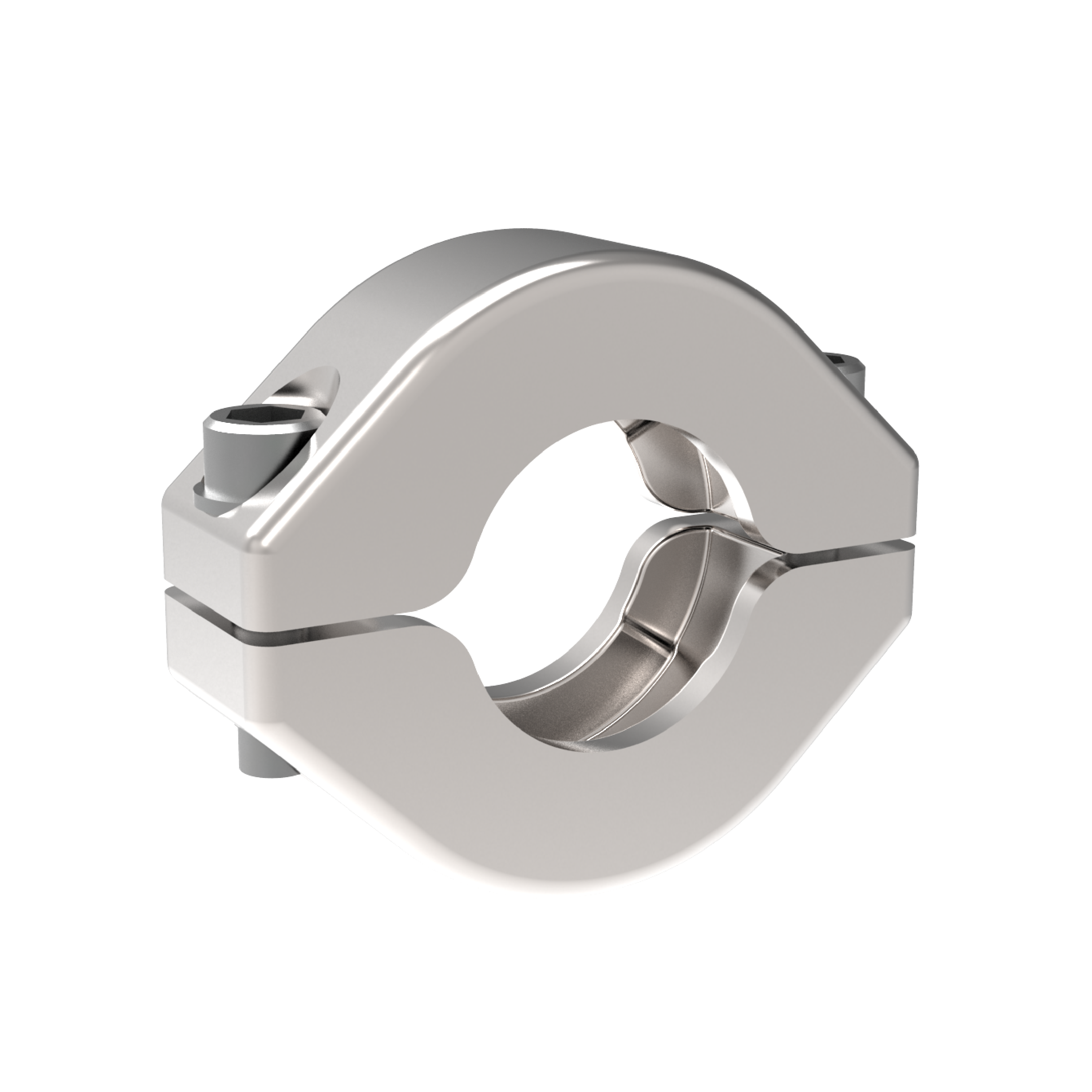

| Product Name | ISO-KF Bolt Clamp (2-Part) |
| System | ISO-KF |
| Product Type | Bolt Clamp (2-Part) |
| Seal Compatibility | Suitable for use with elastomer and metal seals |
| Bolt Type | Hexagon socket |
| Bolt Material | A2-70 steel |
| Recommended Use | Recommended using a screw thread lubricant |
| Over Pressure Max. | 500 mbar |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Available Size Groups | 10/16, 20/25, 32/40, 50 |
| Temperature Range - Stainless Steel 304 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L | -196 to 350 °C |

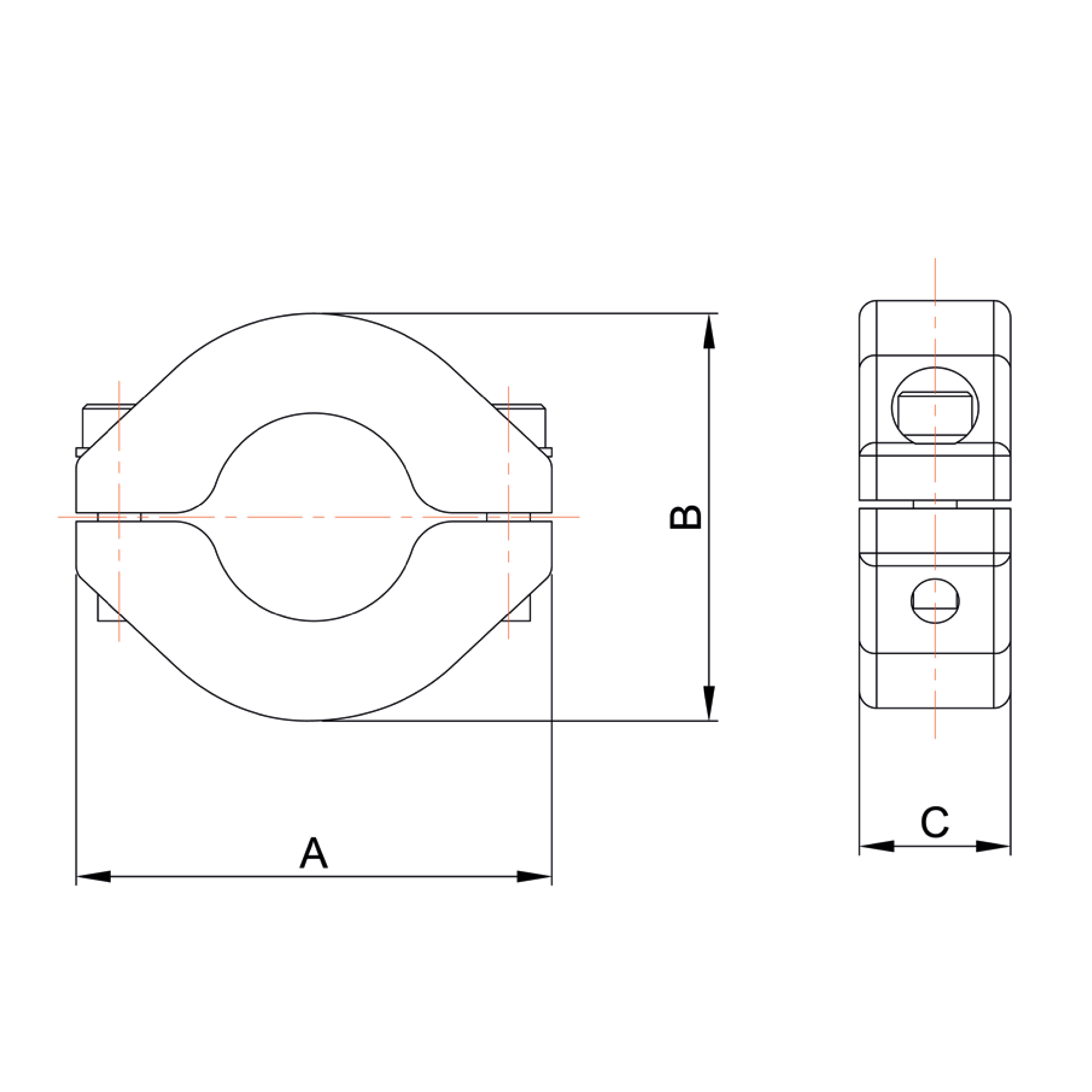

| Main Dimensions | A, B, C |
| Bolt Size | M5 × 25 |
