| Field | Data |
|---|---|
| Product Name | ISO-KF Bulkhead Clamp |
| System | ISO-KF |
| Product Type | Bulkhead Clamp |
| Function | Provides simple and secure baseplate connection |
| Installation | For installing on a base plate with KF centering ring |
| Seal Compatibility | Suitable for use with elastomer seals |
| Included Hardware | Stainless steel bolts and washers included |
| Base Plate Hole Pattern DN10–40 | 6 × 60° |
| Base Plate Hole Pattern DN50 | 8 × 45° |
| Base Plate Thread | M5 |
| Minimum Thread Depth | 10 mm |
| Material Version | Aluminium EN AW-6082 T6 / 3.2315 |
| Bolt Specification | A2-70 stainless steel DIN933, hexagon head, M5 × 20 mm, silver plated |
| Pressure Range - Elastomer Seal | 10⁻⁷ mbar to 2.5 bar |
| Available Size Ranges (DN) | 10/16, 20/25, 32/40, 50 |

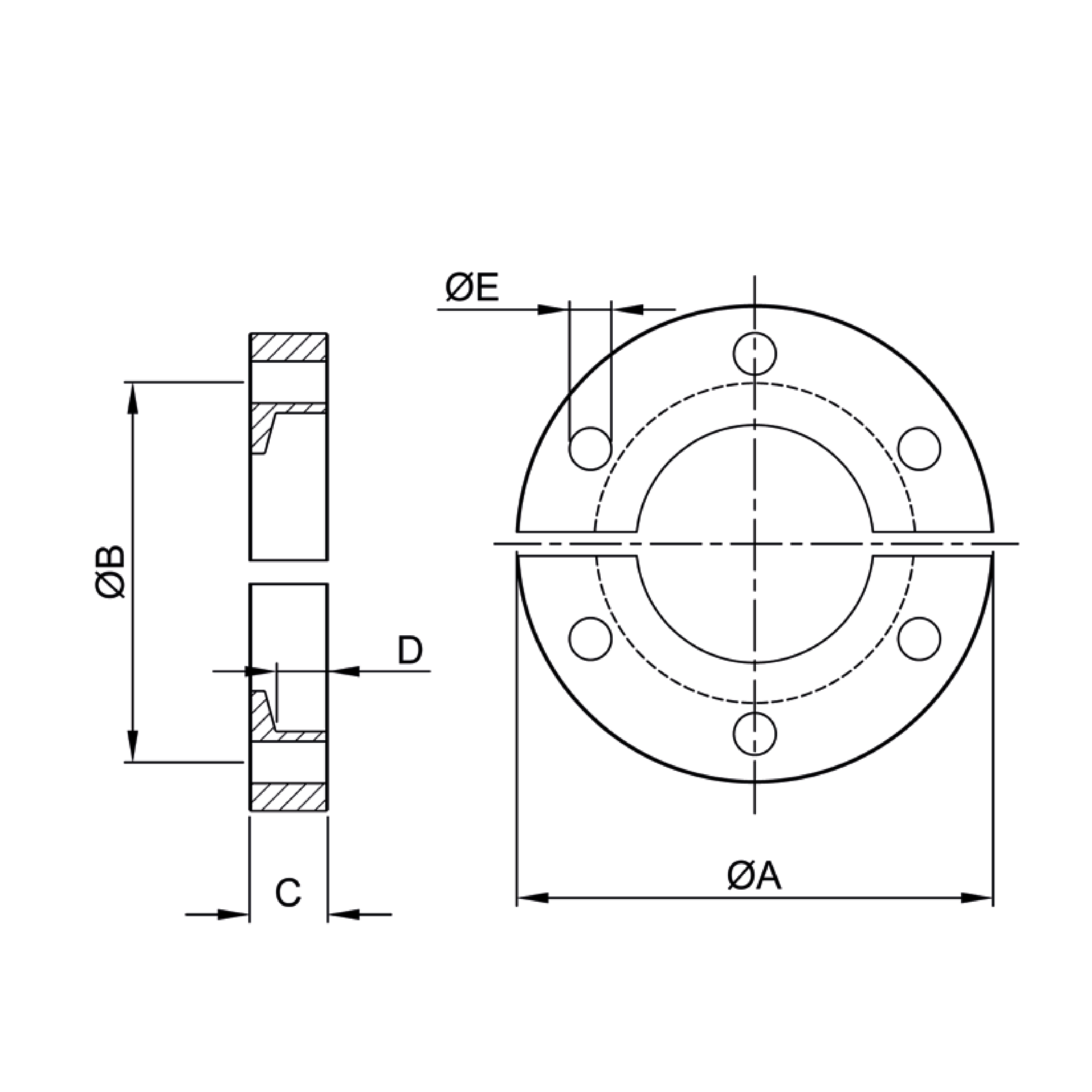

| Main Dimensions | A, B, C, D, E |
| Temperature Range - Aluminium EN AW-6082 T6 / 3.2315 | -196 to 150 °C |
