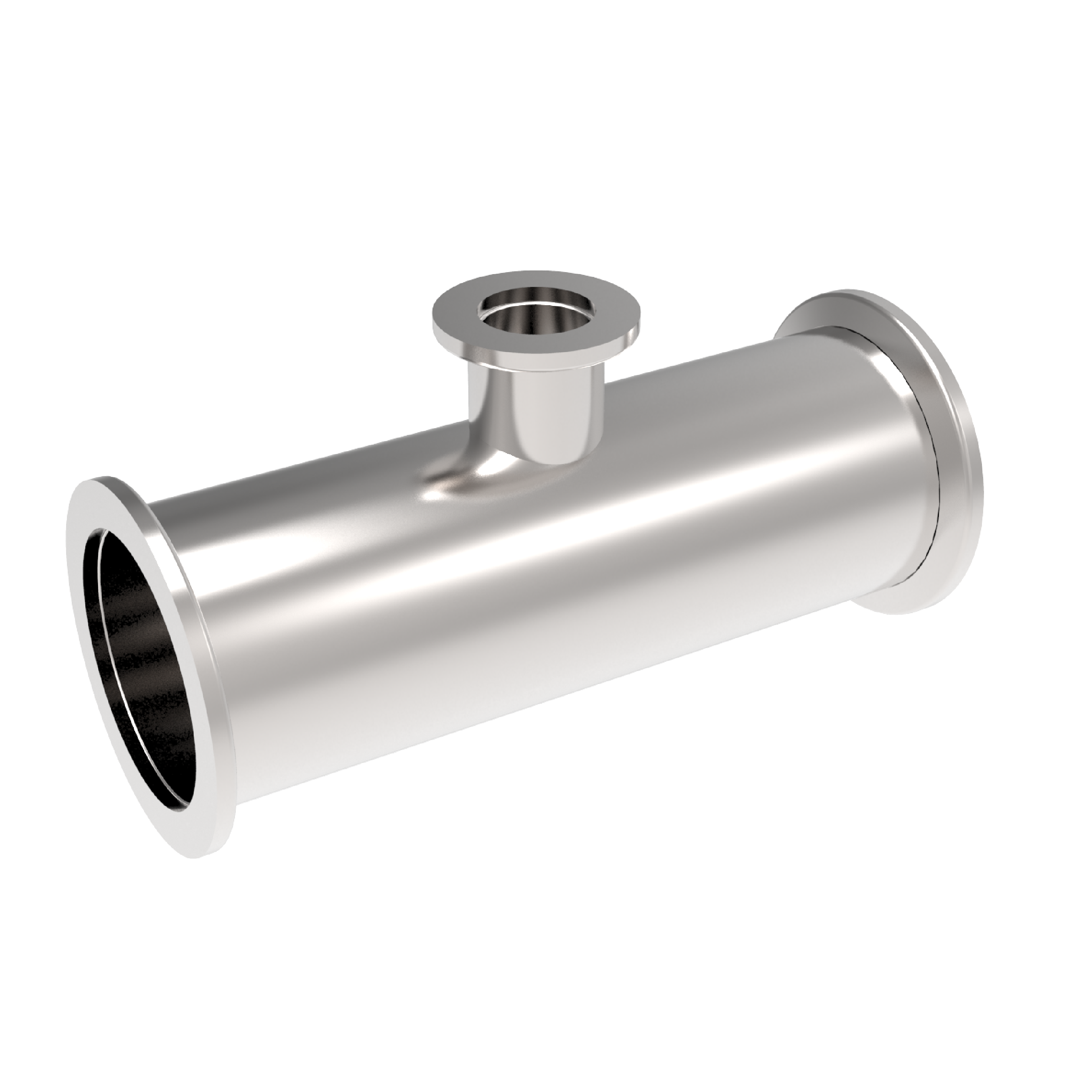

ISO-KF Reducer Tee
ISO-KF Reducer Tee - Image 2

ISO-KF Reducer Tee

Description

The ISO-KF Reducer Tee is designed for ISO-KF vacuum systems that require a tee configuration with reduced branch size for compact distribution and connection of different nominal diameters. Based on the product sheet image, the catalog lists the part in Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404. The pressure range shown on the sheet differs by material: for Stainless Steel 304 / 1.4301, it is listed as 1 × 10⁻⁸ mbar to 500 mbar over pressure for elastomer seal and 1 × 10⁻⁹ mbar to 500 mbar over pressure for metal seal; for Stainless Steel 316L / 1.4404, it is listed as 1 × 10⁻⁸ mbar to 1.5 bar over pressure for elastomer seal and 1 × 10⁻⁹ mbar to 1.5 bar over pressure for metal seal.

Request a Quote
Field Data
Product Name ISO-KF Reducer Tee
System ISO-KF
Product Type Reducer Tee
Function Tee fitting with reduced branch size for ISO-KF vacuum lines
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Pressure Range - Stainless Steel 304 / 1.4301, Elastomer Seal 1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Stainless Steel 304 / 1.4301, Metal Seal 1 × 10⁻⁹ mbar to 500 mbar over pressure
Pressure Range - Stainless Steel 316L / 1.4404, Elastomer Seal 1 × 10⁻⁸ mbar to 1.5 bar over pressure
Pressure Range - Stainless Steel 316L / 1.4404, Metal Seal 1 × 10⁻⁹ mbar to 1.5 bar over pressure
Available Sizes (DN) 25, 40, 50
Available Reducer Sizes (DN) 16, 25, 40
Main Dimensions A, B, C, D
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Size (DN) Reducer Size (DN) A (mm) B (mm) C (mm) D (mm) Order No
25 16 100 40 24 16 VC1FTF1SS025-016
40 16 130 40 40.5 16 VC1FTF1SS040-016
40 25 130 50 40.5 24 VC1FTF1SS040-025
50 16 140 50 50 16 VC1FTF1SS050-016
50 25 140 65 50 24 VC1FTF1SS050-025
50 40 140 65 50 40 VC1FTF1SS050-040
Stainless Steel 316L / 1.4404
Size (DN) Reducer Size (DN) A (mm) B (mm) C (mm) D (mm) Order No
25 16 100 40 24 16 VC1FTF2SS025-016
40 16 130 40 40.5 16 VC1FTF2SS040-016
40 25 130 50 40.5 24 VC1FTF2SS040-025
50 16 140 50 50 16 VC1FTF2SS050-016
50 25 140 65 50 24 VC1FTF2SS050-025
50 40 140 65 50 40 VC1FTF2SS050-040

Stainless Steel 304 / 1.4301
Size (DN) Reducer Size (DN) A (mm) B (mm) C (mm) D (mm)
25 16 100 40 24 16
40 16 130 40 40.5 16
40 25 130 50 40.5 24
50 16 140 50 50 16
50 25 140 65 50 24
50 40 140 65 50 40
Stainless Steel 316L / 1.4404
Size (DN) Reducer Size (DN) A (mm) B (mm) C (mm) D (mm)
25 16 100 40 24 16
40 16 130 40 40.5 16
40 25 130 50 40.5 24
50 16 140 50 50 16
50 25 140 65 50 24
50 40 140 65 50 40

Download Datasheet from here

Request CAD Model
