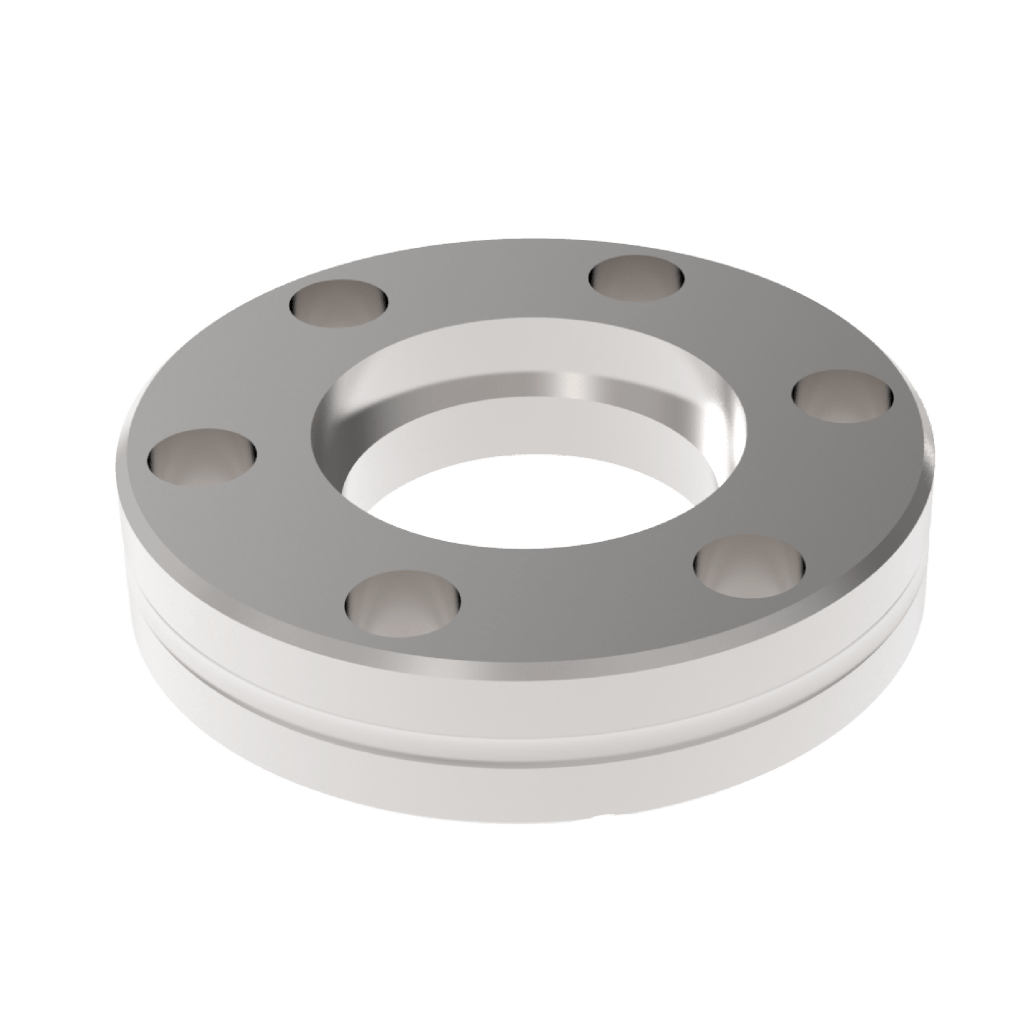

| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | Order No |
|---|---|---|---|---|---|
| 16 | 18x1 | 7.5 | 16 | 18.15 | VC4FLI1SS016-18 |
| 16 | 19.05x1.65 | 7.5 | 15.75 | 19.2 | VC4FLI1SS016-19 |
| 25 | 25.4x1.65 | 12 | 22.1 | 25.6 | VC4FLI1SS025-25 |
| 25 | 28x2 | 12 | 24 | 28.2 | VC4FLI1SS025-28 |
| 40 | 38x1.5 | 13 | 35 | 38.2 | VC4FLI1SS040-38 |
| 40 | 40x1.5 | 13 | 37 | 40.2 | VC4FLI1SS040-40 |
| 40 | 42.4x2 | 13 | 38.4 | 42.6 | VC4FLI1SS040-42 |
| 40 | 44.5x2 | 13 | 40.5 | 44.7 | VC4FLI1SS040-44 |
| 50 | 50.8x1.65 | 16.5 | 47.5 | 51.1 | VC4FLI1SS050-50 |
| 63 | 63.5x1.65 | 17.5 | 60.2 | 63.8 | VC4FLI1SS063-63 |
| 63 | 70x2 | 17.5 | 66 | 70.3 | VC4FLI1SS063-70 |
| 75 | 76.1x2 | 18 | 72.1 | 76.4 | VC4FLI1SS075-76 |
| 100 | 101.6x2.1 | 20 | 97.4 | 101.9 | VC4FLI1SS100-101 |
| 100 | 104x2 | 20 | 100 | 104.3 | VC4FLI1SS100-104 |
| 100 | 108x2 | 20 | 104 | 108.3 | VC4FLI1SS100-108 |
| 125 | 127x1.65 | 21.5 | 123.7 | 127.3 | VC4FLI1SS125-127 |
| 160 | 152.4x2 | 21.5 | 147.6 | 152.7 | VC4FLI1SS160-152 |
| 160 | 154x2 | 21.5 | 150 | 154.3 | VC4FLI1SS160-154 |
| 160 | 159x2 | 21.5 | 155 | 159.3 | VC4FLI1SS160-159 |
| 200 | 203.2x2.4 | 24.5 | 198.4 | 203.5 | VC4FLI1SS200-203 |
| 200 | 204x2 | 24.5 | 200 | 204.3 | VC4FLI1SS200-204 |
| 200 | 205x2.5 | 24.5 | 200 | 205.3 | VC4FLI1SS200-205 |
| 250 | 254x2 | 24.5 | 250 | 254.3 | VC4FLI1SS250-254 |
| 250 | 256x3 | 24.5 | 250 | 256.3 | VC4FLI1SS250-256 |
| 300 | 306x3 | 28.5 | 300 | 306.3 | VC4FLI1SS300-306 |
| 350 | 356x3 | 28.5 | 350 | 356.3 | VC4FLI1SS350-356 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | Order No |
|---|---|---|---|---|---|
| 16 | 18x1 | 7.5 | 16 | 18.15 | VC4FLI2SS016-18 |
| 16 | 19.05x1.65 | 7.5 | 15.75 | 19.2 | VC4FLI2SS016-19 |
| 25 | 25.4x1.65 | 12 | 22.1 | 25.6 | VC4FLI2SS025-25 |
| 25 | 28x2 | 12 | 24 | 28.2 | VC4FLI2SS025-28 |
| 40 | 38x1.5 | 13 | 35 | 38.2 | VC4FLI2SS040-38 |
| 40 | 40x1.5 | 13 | 37 | 40.2 | VC4FLI2SS040-40 |
| 40 | 42.4x2 | 13 | 38.4 | 42.6 | VC4FLI2SS040-42 |
| 40 | 44.5x2 | 13 | 40.5 | 44.7 | VC4FLI2SS040-44 |
| 50 | 50.8x1.65 | 16.5 | 47.5 | 51.1 | VC4FLI2SS050-50 |
| 63 | 63.5x1.65 | 17.5 | 60.2 | 63.8 | VC4FLI2SS063-63 |
| 63 | 70x2 | 17.5 | 66 | 70.3 | VC4FLI2SS063-70 |
| 75 | 76.1x2 | 18 | 72.1 | 76.4 | VC4FLI2SS075-76 |
| 100 | 101.6x2.1 | 20 | 97.4 | 101.9 | VC4FLI2SS100-101 |
| 100 | 104x2 | 20 | 100 | 104.3 | VC4FLI2SS100-104 |
| 100 | 108x2 | 20 | 104 | 108.3 | VC4FLI2SS100-108 |
| 125 | 127x1.65 | 21.5 | 123.7 | 127.3 | VC4FLI2SS125-127 |
| 160 | 152.4x2 | 21.5 | 147.6 | 152.7 | VC4FLI2SS160-152 |
| 160 | 154x2 | 21.5 | 150 | 154.3 | VC4FLI2SS160-154 |
| 160 | 159x2 | 21.5 | 155 | 159.3 | VC4FLI2SS160-159 |
| 200 | 203.2x2.4 | 24.5 | 198.4 | 203.5 | VC4FLI2SS200-203 |
| 200 | 204x2 | 24.5 | 200 | 204.3 | VC4FLI2SS200-204 |
| 200 | 205x2.5 | 24.5 | 200 | 205.3 | VC4FLI2SS200-205 |
| 250 | 254x2 | 24.5 | 250 | 254.3 | VC4FLI2SS250-254 |
| 250 | 256x3 | 24.5 | 250 | 256.3 | VC4FLI2SS250-256 |
| 300 | 306x3 | 28.5 | 300 | 306.3 | VC4FLI2SS300-306 |
| 350 | 356x3 | 28.5 | 350 | 356.3 | VC4FLI2SS350-356 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | Order No |
|---|---|---|---|---|---|
| 16 | 18x1 | 7.5 | 16 | 18.15 | VC4FLI3SS016-18 |
| 16 | 19.05x1.65 | 7.5 | 15.75 | 19.2 | VC4FLI3SS016-19 |
| 25 | 25.4x1.65 | 12 | 22.1 | 25.6 | VC4FLI3SS025-25 |
| 25 | 28x2 | 12 | 24 | 28.2 | VC4FLI3SS025-28 |
| 40 | 38x1.5 | 13 | 35 | 38.2 | VC4FLI3SS040-38 |
| 40 | 40x1.5 | 13 | 37 | 40.2 | VC4FLI3SS040-40 |
| 40 | 42.4x2 | 13 | 38.4 | 42.6 | VC4FLI3SS040-42 |
| 40 | 44.5x2 | 13 | 40.5 | 44.7 | VC4FLI3SS040-44 |
| 50 | 50.8x1.65 | 16.5 | 47.5 | 51.1 | VC4FLI3SS050-50 |
| 63 | 63.5x1.65 | 17.5 | 60.2 | 63.8 | VC4FLI3SS063-63 |
| 63 | 70x2 | 17.5 | 66 | 70.3 | VC4FLI3SS063-70 |
| 75 | 76.1x2 | 18 | 72.1 | 76.4 | VC4FLI3SS075-76 |
| 100 | 101.6x2.1 | 20 | 97.4 | 101.9 | VC4FLI3SS100-101 |
| 100 | 104x2 | 20 | 100 | 104.3 | VC4FLI3SS100-104 |
| 100 | 108x2 | 20 | 104 | 108.3 | VC4FLI3SS100-108 |
| 125 | 127x1.65 | 21.5 | 123.7 | 127.3 | VC4FLI3SS125-127 |
| 160 | 152.4x2 | 21.5 | 147.6 | 152.7 | VC4FLI3SS160-152 |
| 160 | 154x2 | 21.5 | 150 | 154.3 | VC4FLI3SS160-154 |
| 160 | 159x2 | 21.5 | 155 | 159.3 | VC4FLI3SS160-159 |
| 200 | 203.2x2.4 | 24.5 | 198.4 | 203.5 | VC4FLI3SS200-203 |
| 200 | 204x2 | 24.5 | 200 | 204.3 | VC4FLI3SS200-204 |
| 200 | 205x2.5 | 24.5 | 200 | 205.3 | VC4FLI3SS200-205 |
| 250 | 254x2 | 24.5 | 250 | 254.3 | VC4FLI3SS250-254 |
| 250 | 256x3 | 24.5 | 250 | 256.3 | VC4FLI3SS250-256 |
| 300 | 306x3 | 28.5 | 300 | 306.3 | VC4FLI3SS300-306 |
| 350 | 356x3 | 28.5 | 350 | 356.3 | VC4FLI3SS350-356 |
