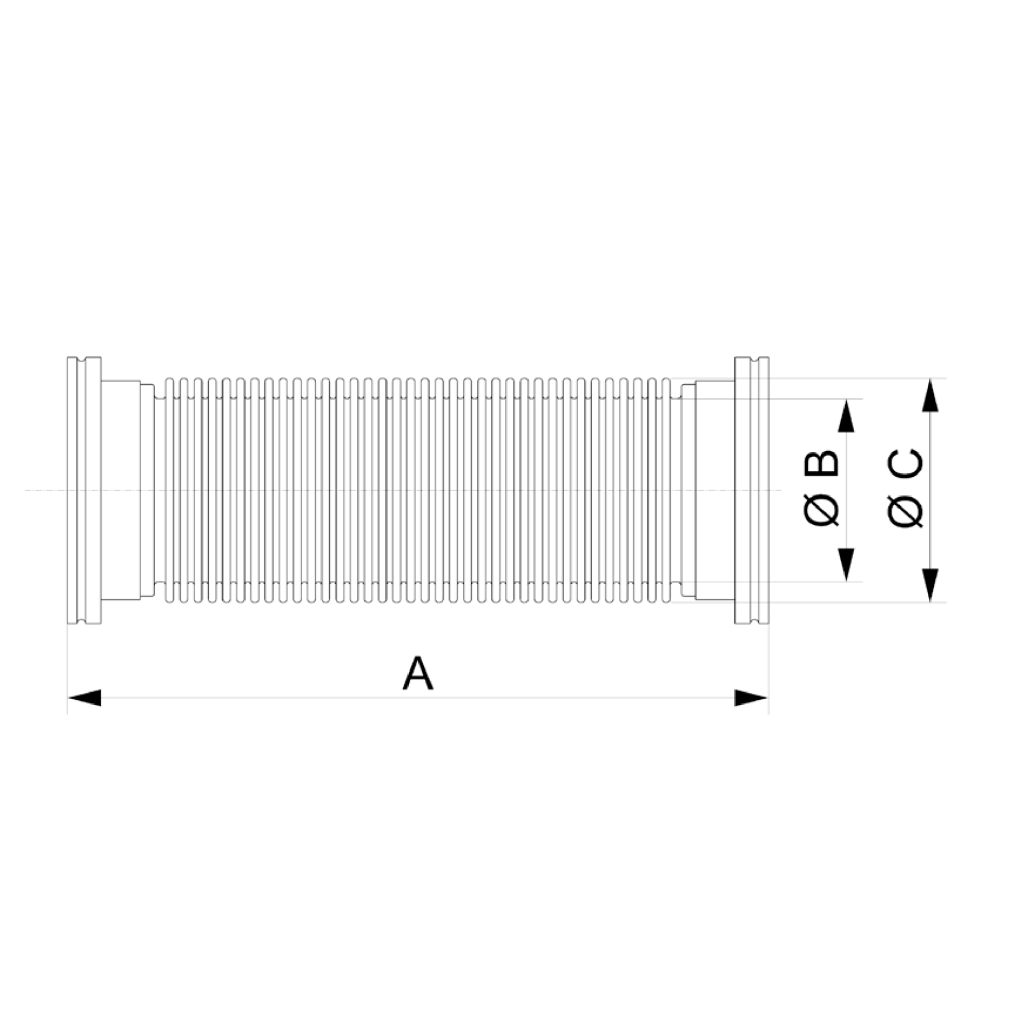

| Flange Size (DN) | A (mm) | B (mm) | C (mm) | Bend radius, unique movement (mm) | Over pressure max. (hPa) | Order No |
|---|---|---|---|---|---|---|
| 63 | 250 | 65 | 80 | 90 | 500 | VC2HSA1SS063-250 |
| 63 | 500 | 65 | 80 | 90 | 500 | VC2HSA1SS063-500 |
| 63 | 750 | 65 | 80 | 90 | 500 | VC2HSA1SS063-750 |
| 63 | 1000 | 65 | 80 | 90 | 500 | VC2HSA1SS063-1000 |
| 63 | 1500 | 65 | 80 | 90 | 500 | VC2HSA1SS063-1500 |
| 100 | 250 | 100 | 119 | 131 | 300 | VC2HSA1SS100-250 |
| 100 | 500 | 100 | 119 | 131 | 300 | VC2HSA1SS100-500 |
| 100 | 750 | 100 | 119 | 131 | 300 | VC2HSA1SS100-750 |
| 100 | 1000 | 100 | 119 | 131 | 300 | VC2HSA1SS100-1000 |
| 100 | 1500 | 100 | 119 | 131 | 300 | VC2HSA1SS100-1500 |
| 160 | 250 | 150 | 173 | 216 | 100 | VC2HSA1SS160-250 |
| 160 | 500 | 150 | 173 | 216 | 100 | VC2HSA1SS160-500 |
| 160 | 750 | 150 | 173 | 216 | 100 | VC2HSA1SS160-750 |
| 160 | 1000 | 150 | 173 | 216 | 100 | VC2HSA1SS160-1000 |
| 160 | 1500 | 150 | 173 | 216 | 100 | VC2HSA1SS160-1500 |
| Flange Size (DN) | A (mm) | B (mm) | C (mm) | Bend radius, unique movement (mm) | Over pressure max. (hPa) | Order No |
|---|---|---|---|---|---|---|
| 63 | 250 | 65 | 80 | 90 | 500 | VC2HSA2SS063-250 |
| 63 | 500 | 65 | 80 | 90 | 500 | VC2HSA2SS063-500 |
| 63 | 750 | 65 | 80 | 90 | 500 | VC2HSA2SS063-750 |
| 63 | 1000 | 65 | 80 | 90 | 500 | VC2HSA2SS063-1000 |
| 63 | 1500 | 65 | 80 | 90 | 500 | VC2HSA2SS063-1500 |
| 100 | 250 | 100 | 119 | 131 | 300 | VC2HSA2SS100-250 |
| 100 | 500 | 100 | 119 | 131 | 300 | VC2HSA2SS100-500 |
| 100 | 750 | 100 | 119 | 131 | 300 | VC2HSA2SS100-750 |
| 100 | 1000 | 100 | 119 | 131 | 300 | VC2HSA2SS100-1000 |
| 100 | 1500 | 100 | 119 | 131 | 300 | VC2HSA2SS100-1500 |
| 160 | 250 | 150 | 173 | 216 | 100 | VC2HSA2SS160-250 |
| 160 | 500 | 150 | 173 | 216 | 100 | VC2HSA2SS160-500 |
| 160 | 750 | 150 | 173 | 216 | 100 | VC2HSA2SS160-750 |
| 160 | 1000 | 150 | 173 | 216 | 100 | VC2HSA2SS160-1000 |
| 160 | 1500 | 150 | 173 | 216 | 100 | VC2HSA2SS160-1500 |
