Tell us what your vacuum system needs — we’ll prepare the right solution.
Request a quotation from Anadolu Vacuum for standard vacuum components, custom-engineered parts, UHV chambers, flanges, fittings, and complete vacuum solutions. Share your technical requirements, drawings, quantities, or project details, and our team will evaluate your request with precision, speed, and engineering-focused support.

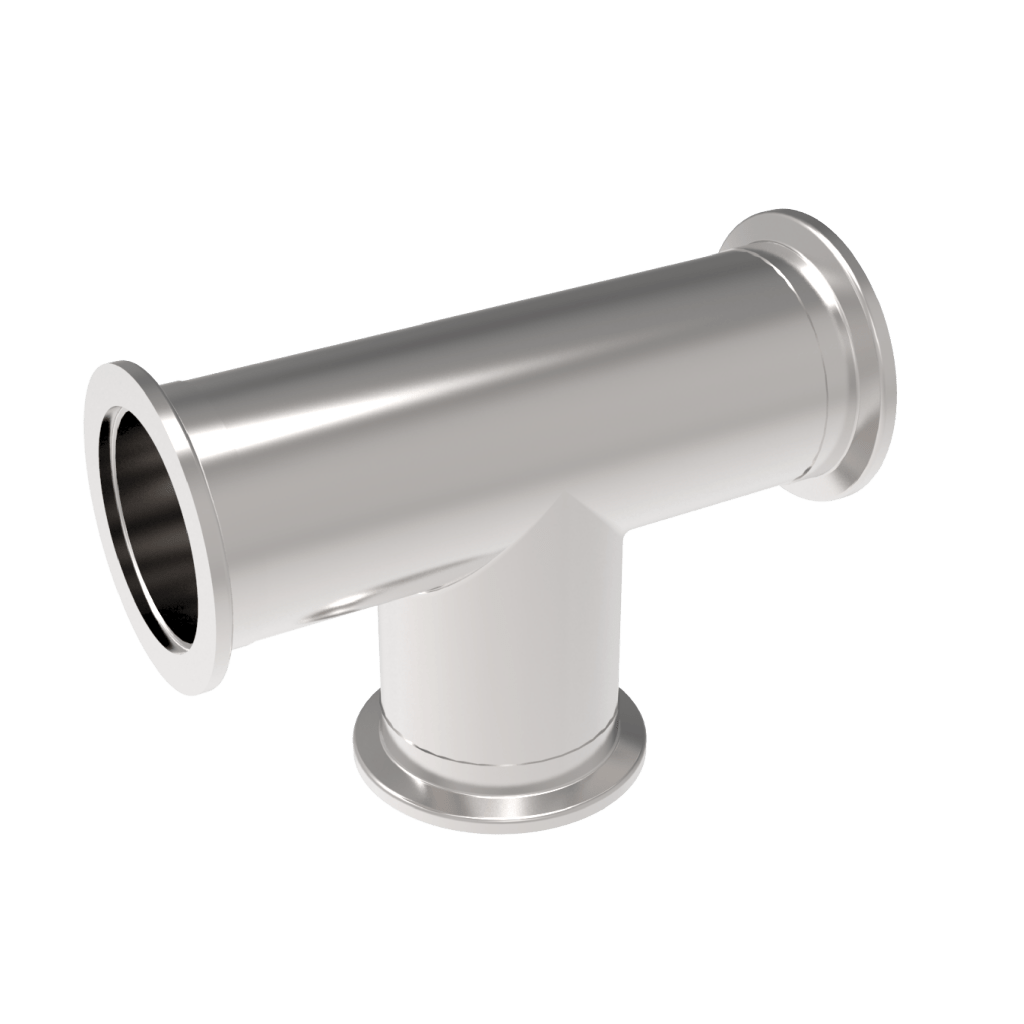

| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Order No |
|---|---|---|---|---|---|---|
| 10 | 13x1.5 | 60 | 30 | 10 | 13 | VC1FTC1SS010 |
| 16 | 19x1.5 | 77 | 38.5 | 16 | 19 | VC1FTC1SS016 |
| 25 | 29x1.5 | 107 | 53.5 | 26 | 29 | VC1FTC1SS025 |
| 40 | 41x1.5 | 127 | 63.5 | 38 | 41 | VC1FTC1SS040 |
| 50 | 53x1.5 | 148 | 74 | 50 | 53 | VC1FTC1SS050 |
| Size (DN) | Tube Dimension (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Order No |
|---|---|---|---|---|---|---|
| 10 | 13x1.5 | 60 | 30 | 10 | 13 | VC1FTC2SS010 |
| 16 | 19x1.5 | 77 | 38.5 | 16 | 19 | VC1FTC2SS016 |
| 25 | 29x1.5 | 107 | 53.5 | 26 | 29 | VC1FTC2SS025 |
| 40 | 41x1.5 | 127 | 63.5 | 38 | 41 | VC1FTC2SS040 |
| 50 | 53x1.5 | 148 | 74 | 50 | 53 | VC1FTC2SS050 |
