CF Reducer Flange
CF Reducer Flange - Image 2

CF Reducer Flange

Categories ,

Description

The CF Reducer Flange is designed to connect two different CF flange sizes in a compact reducer configuration. The catalog notes that the reduced-size flange has blind tapped holes, and that the screws used for assembly must be selected in the correct length. It offers a pressure range of 1 × 10⁻¹² mbar to ambient pressure, custom lengths available upon request, and a bake-out range up to 450 °C. It is available in Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404, and Stainless Steel 316LN ESR / 1.4429 ESU. The 316LN ESR / 1.4429 ESU version is presented as ideal for constantly dismantled chamber ports, with lower magnetic permeability, low desorption, and bakeability under vacuum up to 1050 °C.

Request a Quote
Field Data
Product Name CF Reducer Flange
System CF
Product Type Reducer Flange
Assembly Note The reduced-size flange has blind tapped holes
Installation Note Screws used for assembly must be selected in the correct length
Pressure Range 1 × 10⁻¹² mbar to ambient pressure
Custom Lengths Available upon request
Bake-Out Range Up to 450 °C
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404, Stainless Steel 316LN ESR / 1.4429 ESU
Available Main Sizes (DN) 40, 63, 100, 160, 200, 250
Available Reducer Sizes (DN) 16, 40, 50, 63, 100, 160, 200

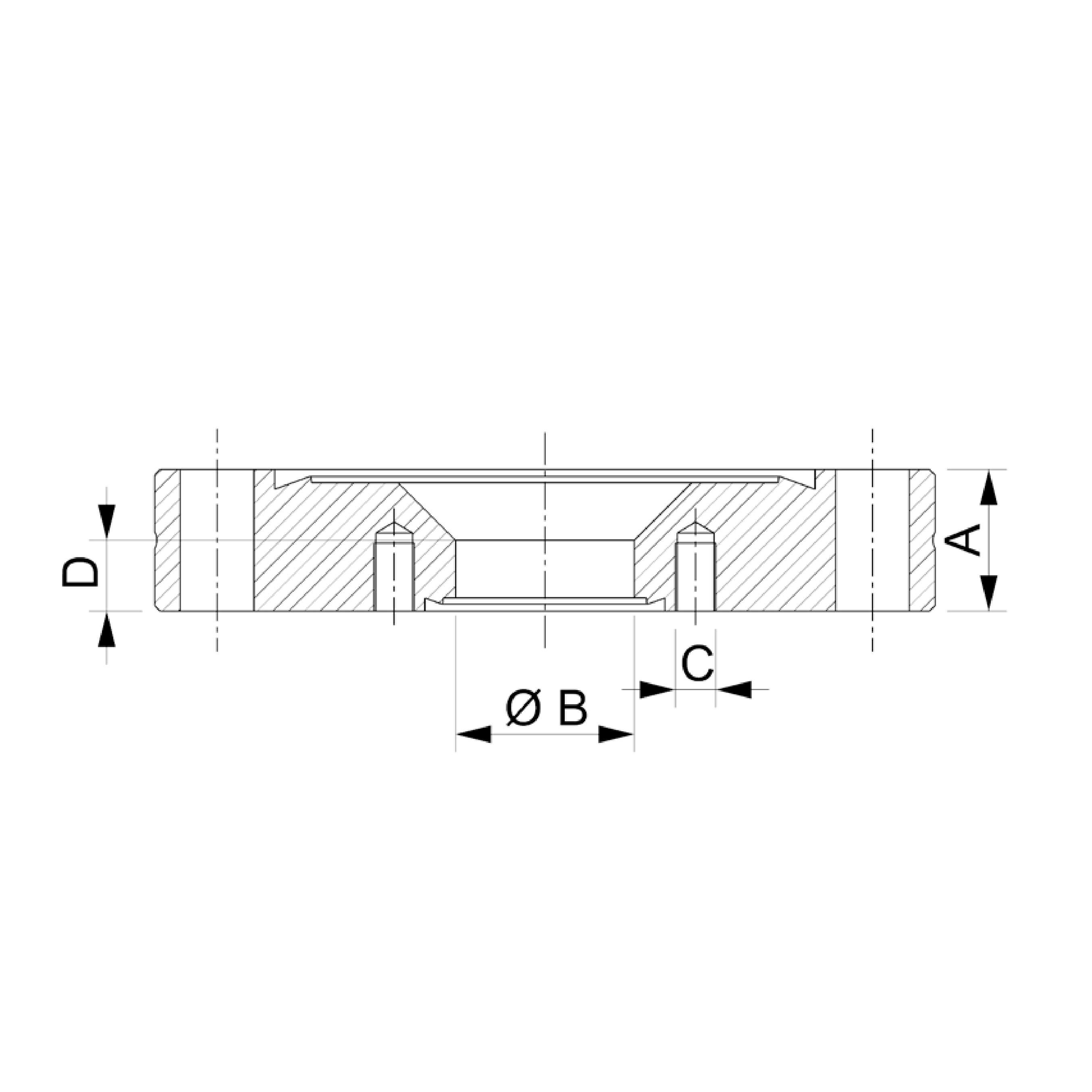

Main Dimensions A, B, C, D
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Temperature Range - Stainless Steel 316LN ESR / 1.4429 ESU -196 to 350 °C
316LN ESR Feature Ideal for constantly dismantled chamber ports
316LN ESR Feature Electro-slag remelt (ESR) to improve grain homogeneity and remove gross macro segregation
316LN ESR Feature Lower magnetic permeability for applications sensitive to magnetic materials (µ ≤ 1.005 vs. 1.03 for 304L SS)
316LN ESR Feature Low desorption
316LN ESR Feature Bakeable under vacuum up to 1050 °C
316LN ESR Pressure Range 1 × 10⁻¹³ mbar to ambient pressure
Catalog Note In the SS316L table, the DN100 to DN50 order number is printed as VC4FLO1SS100-050 in the catalog
Stainless Steel 304 / 1.4301
Size (DN) Reducer Flange Size (DN) A (mm) B (mm) C D (mm) Order No
40 16 13 16 M4 6 VC4FLO1SS040-016
63 16 17.5 16 M4 6 VC4FLO1SS063-016
63 40 17.5 37 M6 9 VC4FLO1SS063-040
100 40 20 37 M6 9 VC4FLO1SS100-040
100 50 20 47.5 M8 10 VC4FLO1SS100-050
100 63 20 66 M8 13 VC4FLO1SS100-063
160 40 21.5 37 M6 9 VC4FLO1SS160-040
160 63 21.5 66 M8 13 VC4FLO1SS160-063
160 100 21.5 100 M8 13 VC4FLO1SS160-100
200 40 24.5 37 M6 9 VC4FLO1SS200-040
200 63 24.5 66 M8 13 VC4FLO1SS200-063
200 100 24.5 100 M8 13 VC4FLO1SS200-100
200 160 24.5 155 M8 13 VC4FLO1SS200-160
250 40 26 37 M6 9 VC4FLO1SS250-040
250 63 26 66 M8 13 VC4FLO1SS250-063
250 100 26 100 M8 13 VC4FLO1SS250-100
250 160 26 155 M8 13 VC4FLO1SS250-160
250 200 26 200 M8 13 VC4FLO1SS250-200
Stainless Steel 316L / 1.4404
Size (DN) Reducer Flange Size (DN) A (mm) B (mm) C D (mm) Order No
40 16 13 16 M4 6 VC4FLO2SS040-016
63 16 17.5 16 M4 6 VC4FLO2SS063-016
63 40 17.5 37 M6 9 VC4FLO2SS063-040
100 40 20 37 M6 9 VC4FLO2SS100-040
100 50 20 47.5 M8 10 VC4FLO1SS100-050
100 63 20 66 M8 13 VC4FLO2SS100-063
160 40 21.5 37 M6 9 VC4FLO2SS160-040
160 63 21.5 66 M8 13 VC4FLO2SS160-063
160 100 21.5 100 M8 13 VC4FLO2SS160-100
200 40 24.5 37 M6 9 VC4FLO2SS200-040
200 63 24.5 66 M8 13 VC4FLO2SS200-063
200 100 24.5 100 M8 13 VC4FLO2SS200-100
200 160 24.5 155 M8 13 VC4FLO2SS200-160
250 40 26 37 M6 9 VC4FLO2SS250-040
250 63 26 66 M8 13 VC4FLO2SS250-063
250 100 26 100 M8 13 VC4FLO2SS250-100
250 160 26 155 M8 13 VC4FLO2SS250-160
250 200 26 200 M8 13 VC4FLO2SS250-200
Stainless Steel 316LN ESR / 1.4429 ESU
Size (DN) Reducer Flange Size (DN) A (mm) B (mm) C D (mm) Order No
40 16 13 16 M4 6 VC4FLO1SS040-016
63 16 17.5 16 M4 6 VC4FLO1SS063-016
63 40 17.5 37 M6 9 VC4FLO1SS063-040
100 40 20 37 M6 9 VC4FLO1SS100-040
100 50 20 47.5 M8 10 VC4FLO1SS100-050
100 63 20 66 M8 13 VC4FLO1SS100-063
160 40 21.5 37 M6 9 VC4FLO1SS160-040
160 63 21.5 66 M8 13 VC4FLO1SS160-063
160 100 21.5 100 M8 13 VC4FLO1SS160-100
200 40 24.5 37 M6 9 VC4FLO1SS200-040
200 63 24.5 66 M8 13 VC4FLO1SS200-063
200 100 24.5 100 M8 13 VC4FLO1SS200-100
200 160 24.5 155 M8 13 VC4FLO1SS200-160
250 40 26 37 M6 9 VC4FLO1SS250-040
250 63 26 66 M8 13 VC4FLO1SS250-063
250 100 26 100 M8 13 VC4FLO1SS250-100
250 160 26 155 M8 13 VC4FLO1SS250-160
250 200 26 200 M8 13 VC4FLO1SS250-200

Stainless Steel 304 / 1.4301
Size (DN) Reducer Flange Size (DN) A (mm) B (mm) C D (mm)
40 16 13 16 M4 6
63 16 17.5 16 M4 6
63 40 17.5 37 M6 9
100 40 20 37 M6 9
100 50 20 47.5 M8 10
100 63 20 66 M8 13
160 40 21.5 37 M6 9
160 63 21.5 66 M8 13
160 100 21.5 100 M8 13
200 40 24.5 37 M6 9
200 63 24.5 66 M8 13
200 100 24.5 100 M8 13
200 160 24.5 155 M8 13
250 40 26 37 M6 9
250 63 26 66 M8 13
250 100 26 100 M8 13
250 160 26 155 M8 13
250 200 26 200 M8 13
Stainless Steel 316L / 1.4404
Size (DN) Reducer Flange Size (DN) A (mm) B (mm) C D (mm)
40 16 13 16 M4 6
63 16 17.5 16 M4 6
63 40 17.5 37 M6 9
100 40 20 37 M6 9
100 50 20 47.5 M8 10
100 63 20 66 M8 13
160 40 21.5 37 M6 9
160 63 21.5 66 M8 13
160 100 21.5 100 M8 13
200 40 24.5 37 M6 9
200 63 24.5 66 M8 13
200 100 24.5 100 M8 13
200 160 24.5 155 M8 13
250 40 26 37 M6 9
250 63 26 66 M8 13
250 100 26 100 M8 13
250 160 26 155 M8 13
250 200 26 200 M8 13
Stainless Steel 316LN ESR / 1.4429 ESU
Size (DN) Reducer Flange Size (DN) A (mm) B (mm) C D (mm)
40 16 13 16 M4 6
63 16 17.5 16 M4 6
63 40 17.5 37 M6 9
100 40 20 37 M6 9
100 50 20 47.5 M8 10
100 63 20 66 M8 13
160 40 21.5 37 M6 9
160 63 21.5 66 M8 13
160 100 21.5 100 M8 13
200 40 24.5 37 M6 9
200 63 24.5 66 M8 13
200 100 24.5 100 M8 13
200 160 24.5 155 M8 13
250 40 26 37 M6 9
250 63 26 66 M8 13
250 100 26 100 M8 13
250 160 26 155 M8 13
250 200 26 200 M8 13
