CF Swagelok® VCR Adapter, Female
CF Swagelok® VCR Adapter, Female - Image 2

CF Swagelok® VCR Adapter, Female

Categories ,

Description

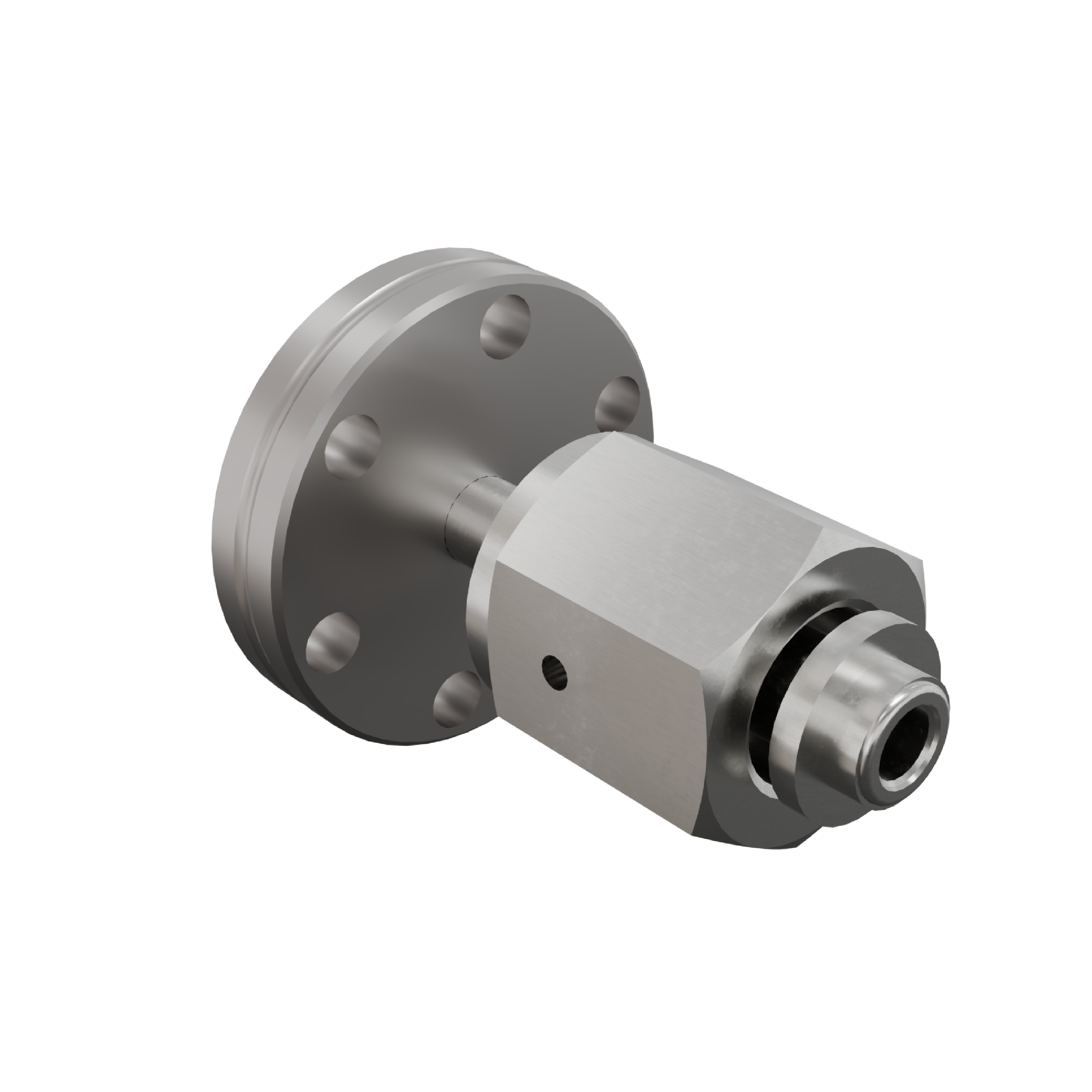

The CF Swagelok® VCR Adapter, Female is a CF vacuum adapter designed for female Swagelok® VCR connections in high and ultra-high vacuum applications. The catalog lists a pressure range of 1 × 10⁻¹¹ mbar to ambient pressure and a tightness of ≤ 1 × 10⁻¹⁰ mbar l/s. It is offered for DN16 and DN40 flange sizes with 1/4″ and 1/2″ VCR connection options.

Request a Quote
Field Data
Product Name CF Swagelok® VCR Adapter, Female
System CF
Product Type Swagelok® VCR Adapter, Female
Connection Type Female VCR connection
Pressure Range 1 × 10⁻¹¹ mbar to ambient pressure
Tightness ≤ 1 × 10⁻¹⁰ mbar l/s
Available Flange Sizes (DN) 16, 40
Available VCR Connections 1/4", 1/2"
Main Dimension A
Catalog Material Note Flange: Stainless steel 304L; VCR adapter: 316L / 1.4404
Material Table Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) VCR Connection Order No
16 44 1/4" VC4ADC1SS016-03-44
16 47 1/2" VC4ADC1SS016-05-47
40 44 1/4" VC4ADC1SS040-03-44
40 47 1/2" VC4ADC1SS040-05-47
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) VCR Connection Order No
16 44 1/4" VC4ADC2SS016-03-44
16 47 1/2" VC4ADC2SS016-05-47
40 44 1/4" VC4ADC2SS040-03-44
40 47 1/2" VC4ADC2SS040-05-47
Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) VCR Connection
16 44 1/4"
16 47 1/2"
40 44 1/4"
40 47 1/2"
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) VCR Connection
16 44 1/4"
16 47 1/2"
40 44 1/4"
40 47 1/2"

Download Datasheet from here

Request CAD Model
