| Field | Data |
|---|---|

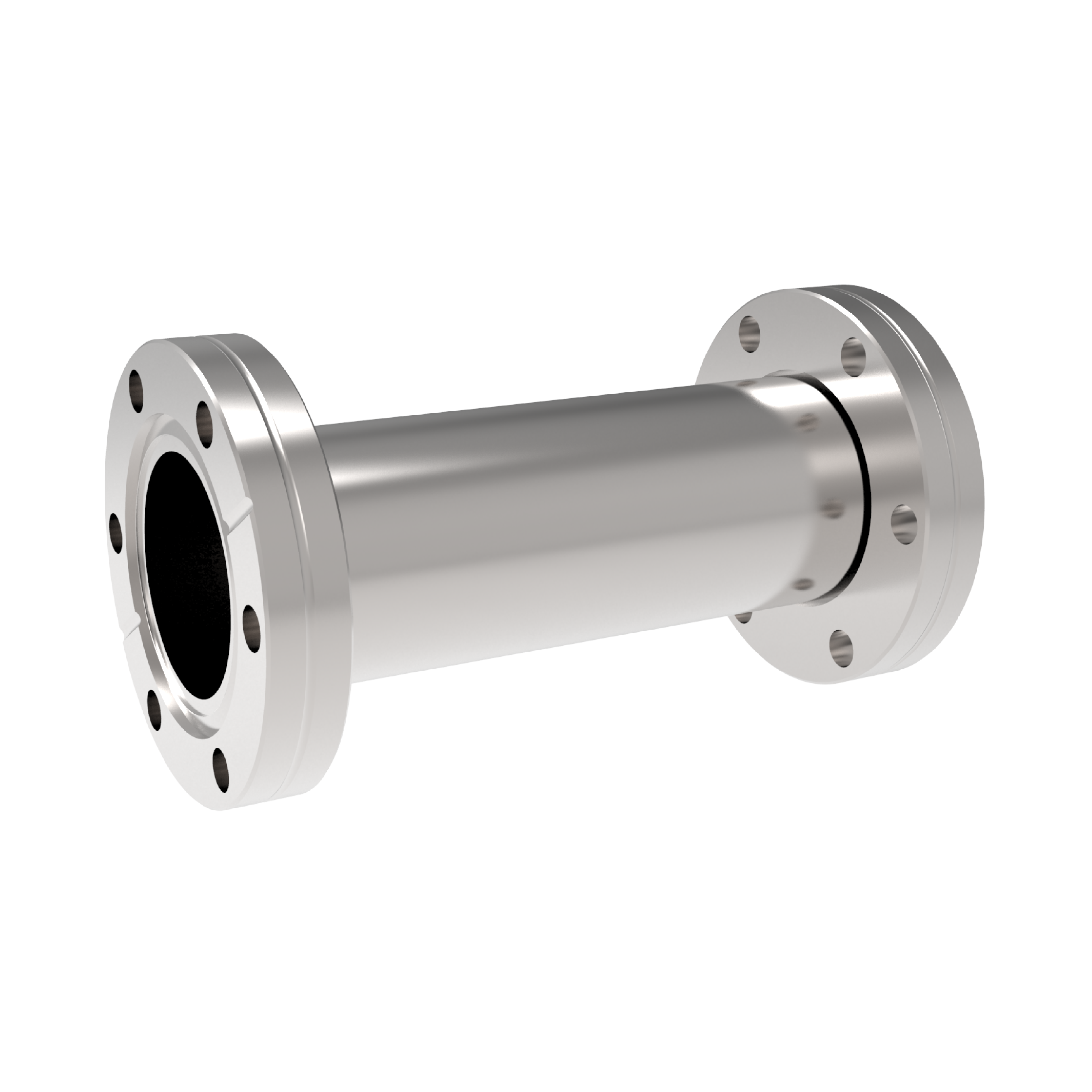

| Product Name | CF Full Flange |
| System | CF |
| Product Type | Full Flange |
| Configuration | One fixed and one rotatable flange |
| Pressure Range | 1 × 10⁻¹² mbar to ambient pressure |
| Tightness | ≤ 1 × 10⁻¹⁰ mbar l/s |
| Custom Lengths | Available upon request |
| Tube Surface | Glass bead blasted |
| Optional Finish | Polished version on request |
| Bake-Out Range | Up to 450 °C |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Flange Material - SS304 | SS304 / 1.4301 |
| Tube Material - SS304 | SS304 / 1.4301 |
| Flange Material - SS316L | SS316L / 1.4404 |
| Tube Material - SS316L | SS316L / 1.4404 |
| Available Sizes (DN) | 16, 40, 63, 100, 160 |

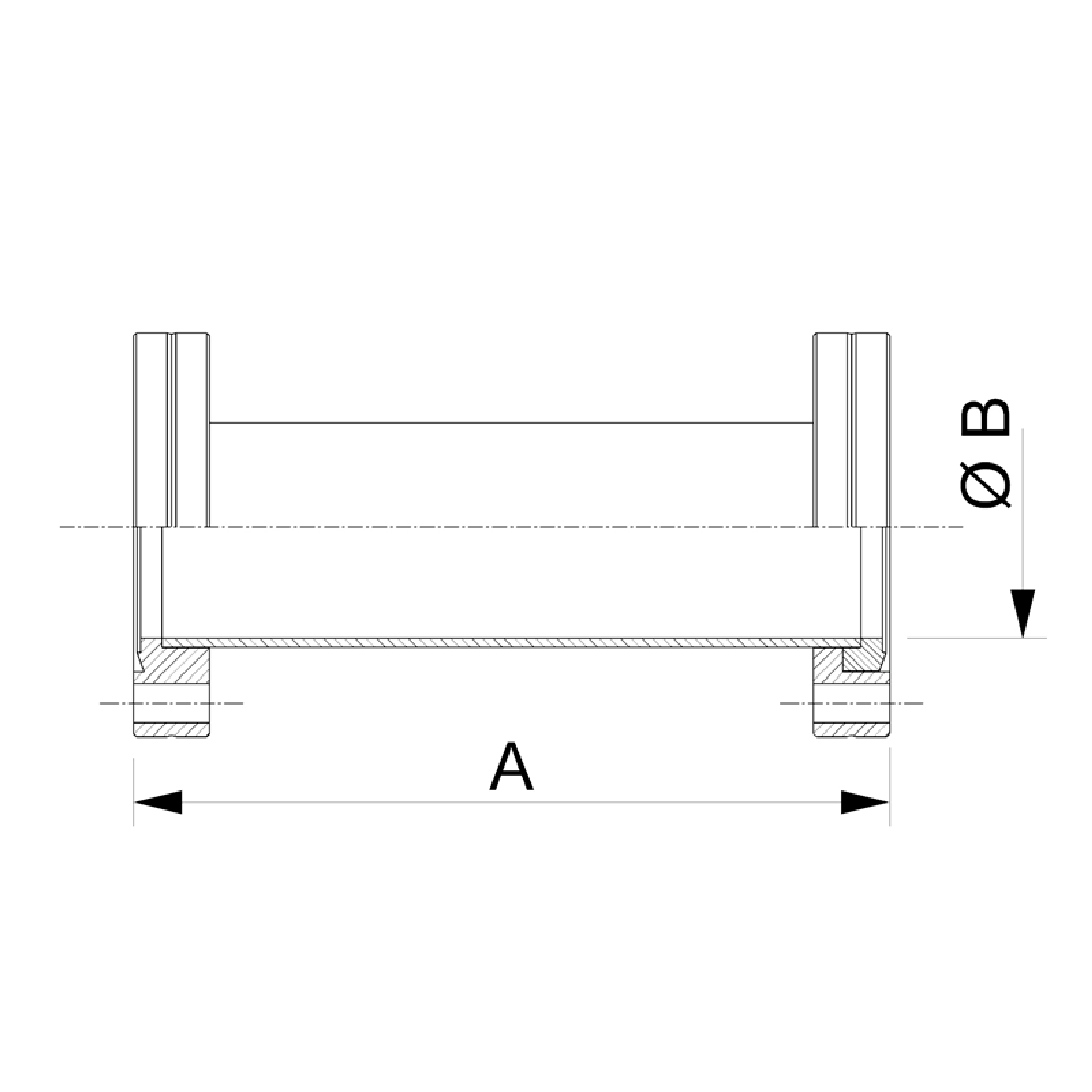

| Main Dimensions | Tube Dimension, A, B |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
