| Field | Data |
|---|---|

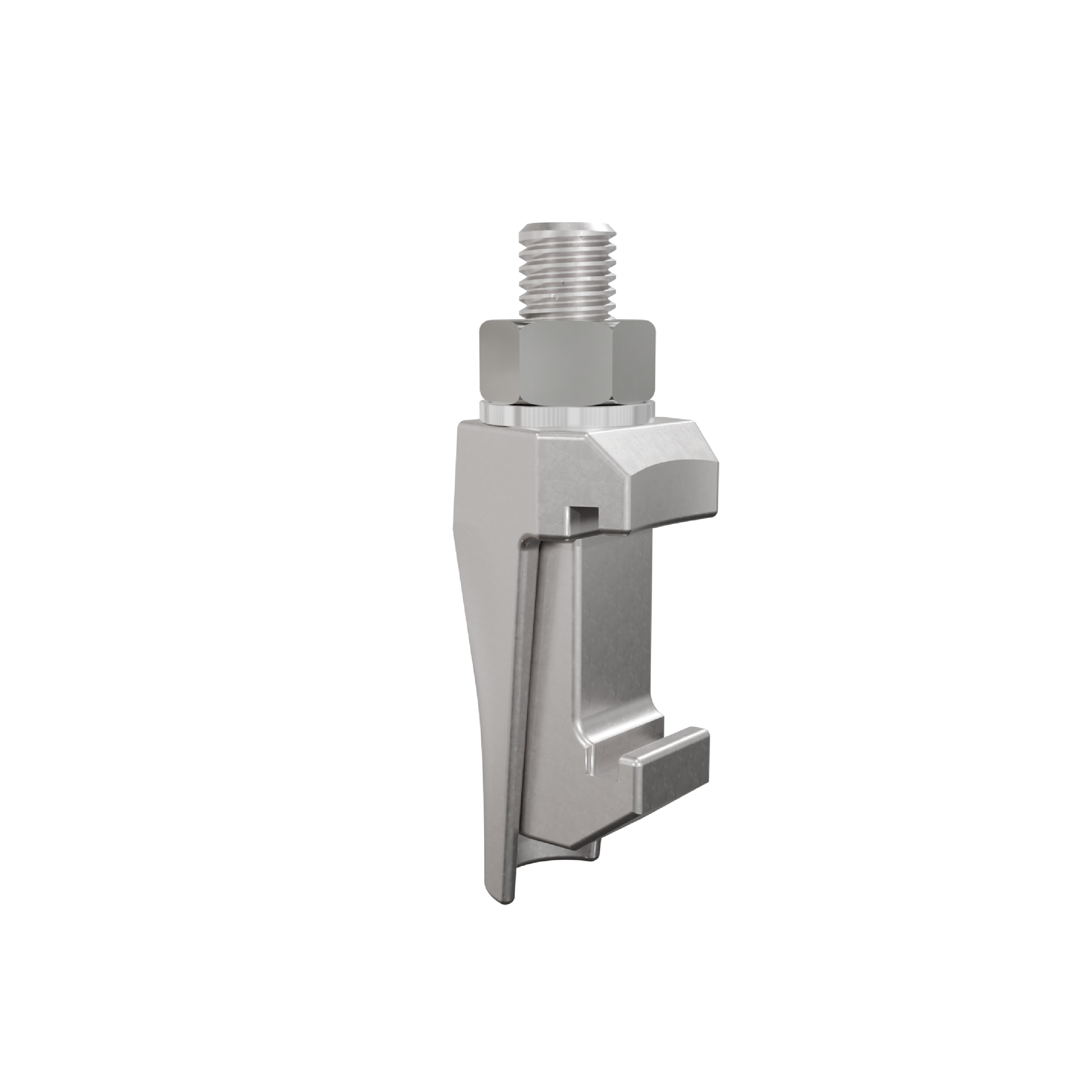

| Product Name | ISO-K Claw Clamp Casting |
| System | ISO-K |
| Product Type | Claw Clamp Casting |
| Seal Compatibility | Suitable for use with elastomer seals and metal seals |
| Aluminium Version Note | Suitable for use with elastomer seals |
| Installation | For installing on a base plate with ISO-K centering ring |
| Bolt Material | A2-70 stainless steel |
| Usage Restriction | Do not use in turbo pump assembly |
| Max Torque DN63–250 | 16 Nm |
| Max Torque DN320–630 | 26 Nm |
| Pressure Range - Elastomer Seal | 10⁻⁷ mbar to 2.5 bar |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Available Size Ranges (DN) | 63–250, 320–500, 630 |

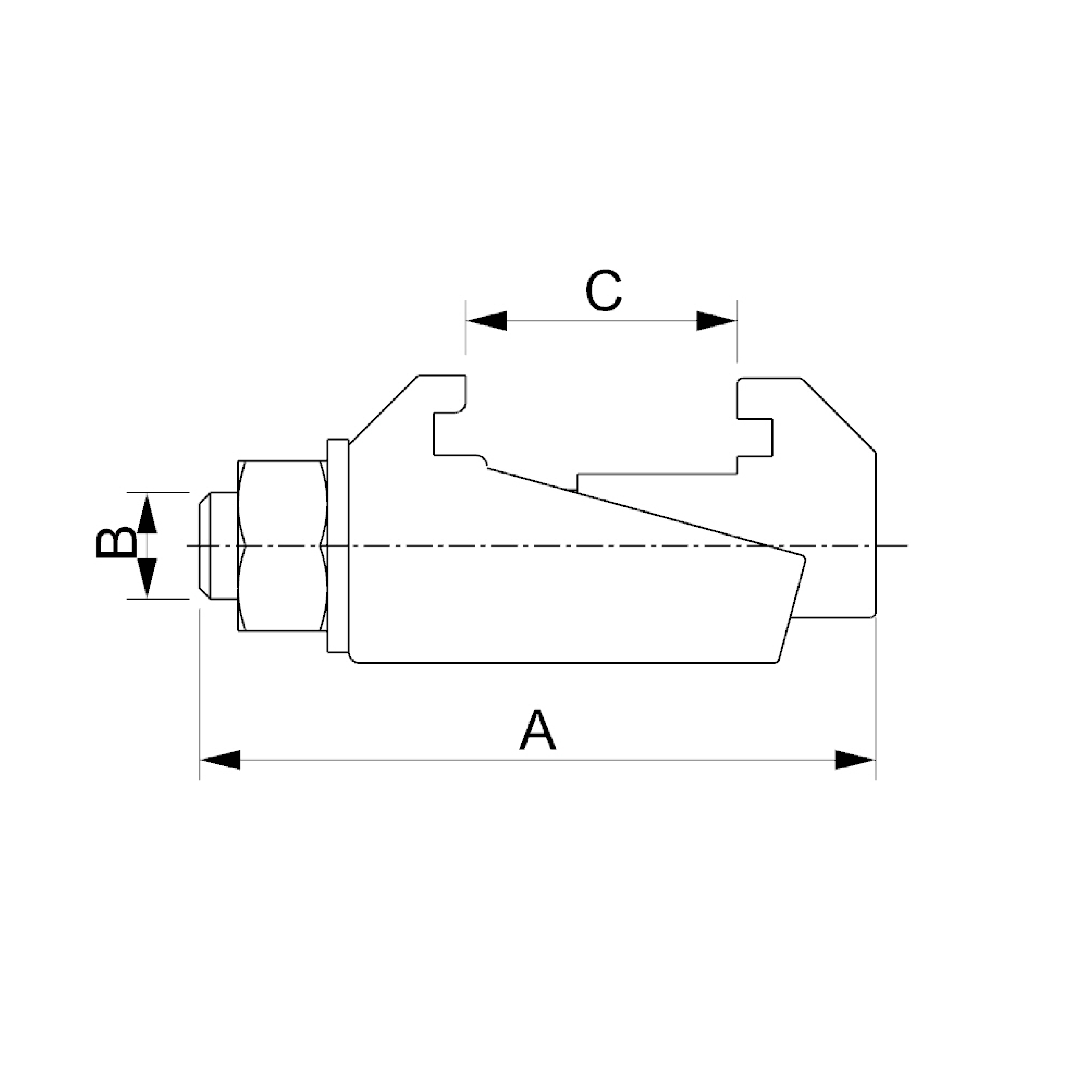

| Main Dimensions | A, B, C |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
