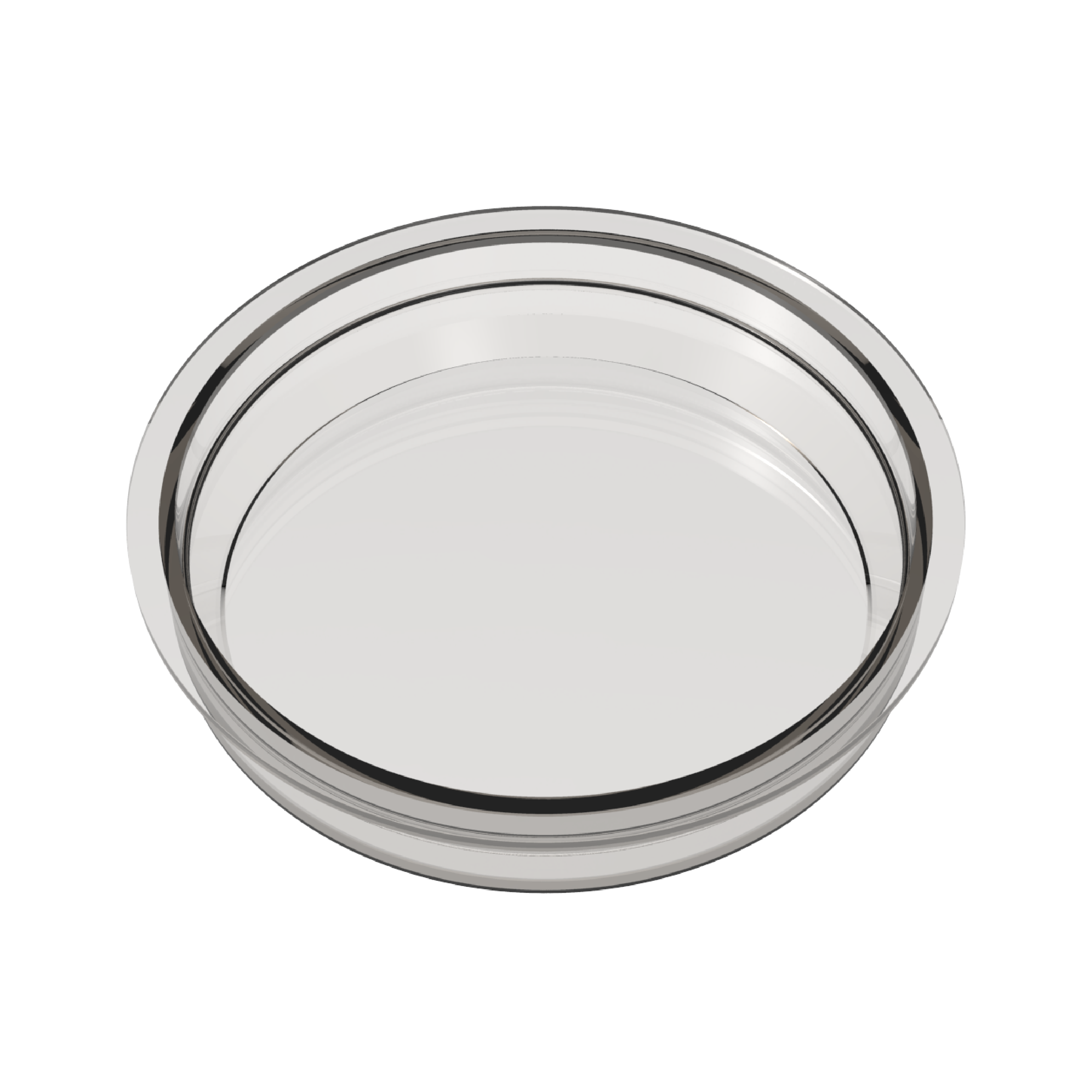

The ISO-K flange caps are polyethylene (PE) plastic covers for ISO-K flanges. The range includes DN63, DN80, DN100, DN160, DN200 and DN250, with a dedicated order number for each size.
Each variant is supplied in a package of five caps. The dimension table provides the corresponding diameter A to support size selection.
Compare the DN size, dimensions and order number below, then request a quotation from Anadolu Vacuum for your required size and number of packages.
| Field | Data |
|---|---|
| Product Name | ISO-K Flange Caps |
| System | ISO-K |
| Product Type | Flange Cap |
| Material | Polyethylene (PE) |
| Material Type | Plastic |
| Available Sizes | DN63, DN80, DN100, DN160, DN200, DN250 |
| Package Quantity | 5 caps per package |
| Main Dimension | A, shown as ØA in the technical drawing |
| Available Variants | 6 |
Polyethylene (PE)| Size (DN) | A (mm) | Package Quantity | Order No. |
|---|---|---|---|
| 63 | 95 | 5 | VC2FLG2PL063 |
| 80 | 110 | 5 | VC2FLG2PL080 |
| 100 | 130 | 5 | VC2FLG2PL100 |
| 160 | 180 | 5 | VC2FLG2PL160 |
| 200 | 240 | 5 | VC2FLG2PL200 |
| 250 | 290 | 5 | VC2FLG2PL250 |
Polyethylene (PE)| Size (DN) | A (mm) |
|---|---|
| 63 | 95 |
| 80 | 110 |
| 100 | 130 |
| 160 | 180 |
| 200 | 240 |
| 250 | 290 |
Download Datasheet from here
