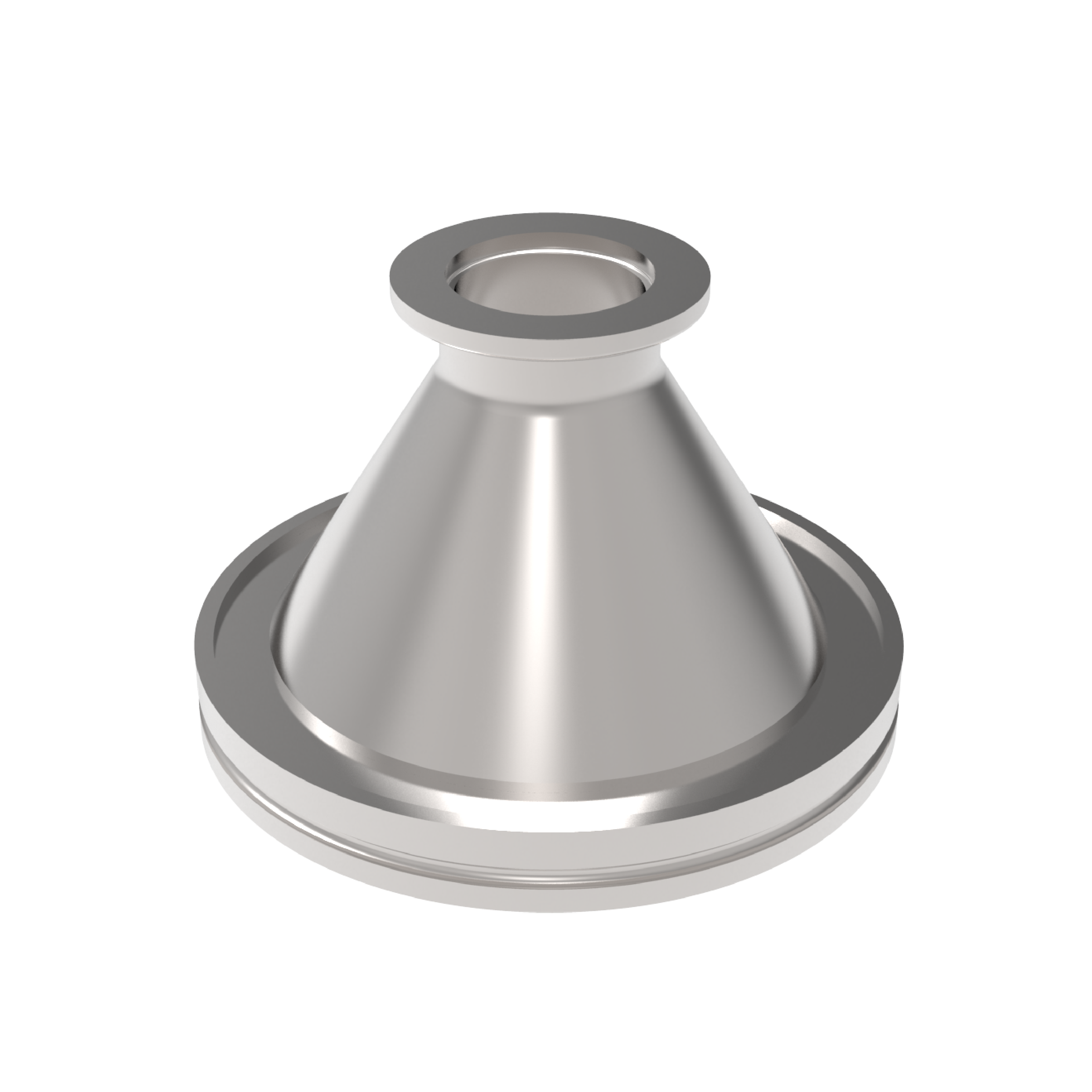

ISO-K to KF Conical Adapter

Field	Data
Product Name	ISO-K to KF Conical Adapter
System	ISO-K to ISO-KF
Product Type	Conical Adapter
Function	Connects ISO-K flange sizes to ISO-KF reducer flange sizes
Other Sizes	Other nominal diameters and dimensions on request
Pressure Range - Elastomer Seal	1 × 10⁻⁸ mbar to ambient pressure
Pressure Range - Metal Seal	1 × 10⁻⁹ mbar to ambient pressure
Material Versions	Aluminium EN AW-6082 T6 / 3.2315, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available ISO-K Flange Sizes (DN)	63, 100
Available ISO-KF Reducer Flange Sizes (DN)	25, 40, 50
Main Dimensions	A, B, C
Temperature Range - Aluminium EN AW-6082 T6 / 3.2315	-196 to 150 °C
Temperature Range - Stainless Steel 304 / 1.4301	-196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404	-196 to 350 °C
Catalog Note	Elastomer seals are available for EN AW-6082 T6 / 3.2315

ISO-K Flange Size (DN)	ISO-KF Reducer Flange Size (DN)	A (mm)	B (mm)	C (mm)	Order No
63	25	63	24	70	VC2ADE1AL063-025-63
63	40	63	40.5	70	VC2ADE1AL063-040-63
63	50	63	50	70	VC2ADE1AL063-050-63
100	40	63	40.5	102	VC2ADE1AL100-040-63
100	50	63	50	102	VC2ADE1AL100-050-63

ISO-K Flange Size (DN)	ISO-KF Reducer Flange Size (DN)	A (mm)	B (mm)	C (mm)	Order No
63	25	63	24	70	VC2ADE1SS063-025-63
63	40	63	40.5	70	VC2ADE1SS063-040-63
63	50	63	50	70	VC2ADE1SS063-050-63
100	40	63	40.5	102	VC2ADE1SS100-040-63
100	50	63	50	102	VC2ADE1SS100-050-63

ISO-K Flange Size (DN)	ISO-KF Reducer Flange Size (DN)	A (mm)	B (mm)	C (mm)	Order No
63	25	63	24	70	VC2ADE2SS063-025-63
63	40	63	40.5	70	VC2ADE2SS063-040-63
63	50	63	50	70	VC2ADE2SS063-050-63
100	40	63	40.5	102	VC2ADE2SS100-040-63
100	50	63	50	102	VC2ADE2SS100-050-63
