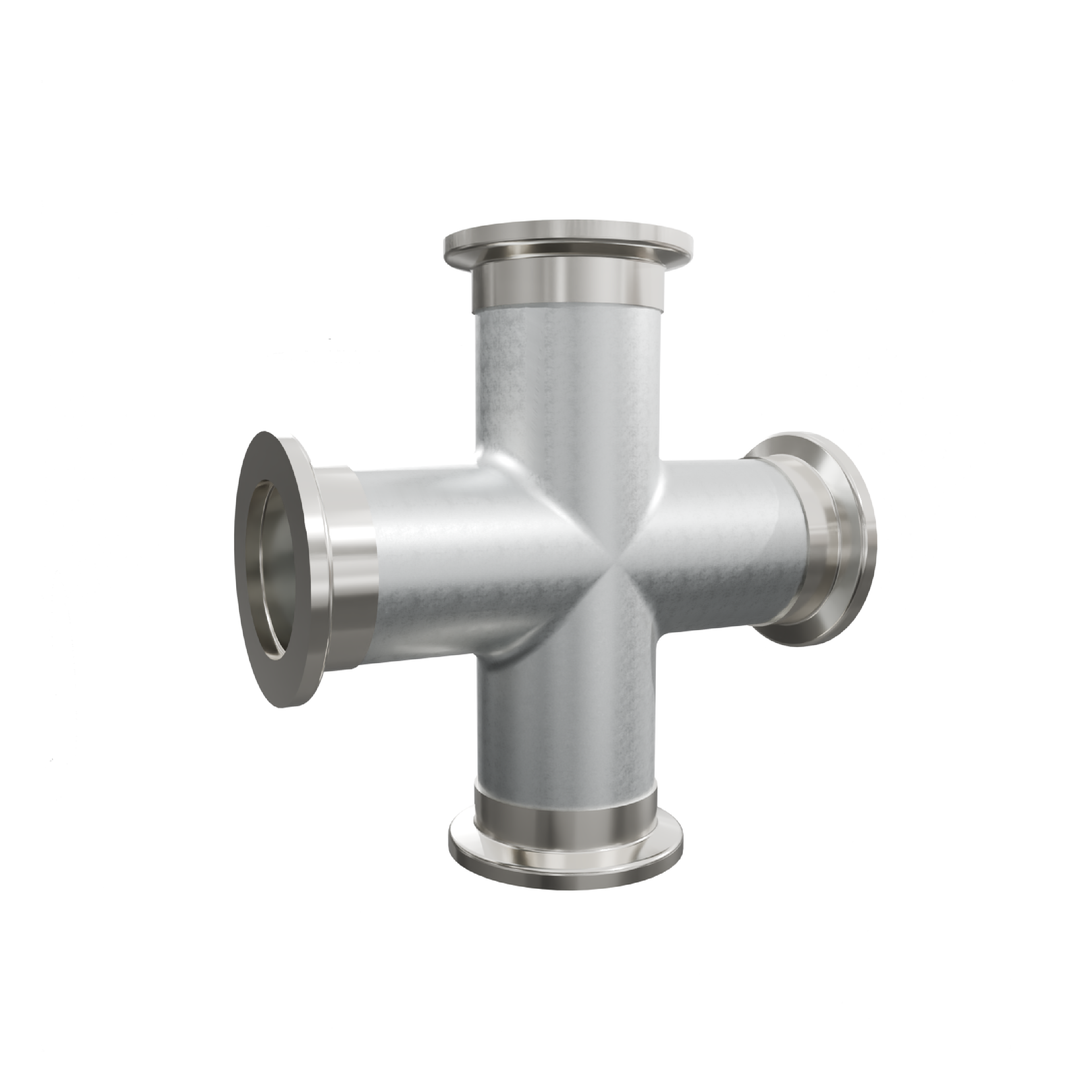

The ISO-KF forged 4-way cross is a vacuum fitting manufactured from aluminium EN AW-6082 / 3.2315. Its four ISO-KF connections form a cross-shaped arrangement for connecting vacuum components along two intersecting axes.
Available in DN16, DN25 and DN40, each variant has a dedicated order number and defined A, B and C dimensions for component selection and installation planning.
The catalog specifies a pressure range of 1 × 10⁻⁸ mbar to 500 mbar overpressure and a temperature range of −196 to +150 °C.
Compare the dimensions and order numbers below, then request a quotation from Anadolu Vacuum for your required size and quantity.
| Field | Data |
|---|---|
| Product Name | ISO KF 4 Way Cross (Forging) |
| System | ISO-KF |
| Product Type | 4-Way Cross |
| Manufacturing Process | Forging |
| Material | Aluminium EN AW-6082 / 3.2315 |
| Connection Configuration | Four ISO-KF connections in a cross-shaped arrangement |
| Available Sizes | DN16, DN25, DN40 |
| Pressure Range | 1 × 10⁻⁸ mbar to 500 mbar overpressure |
| Temperature Range | −196 to +150 °C |
| Main Dimensions | A, B and C |
| Available Variants | 3 |

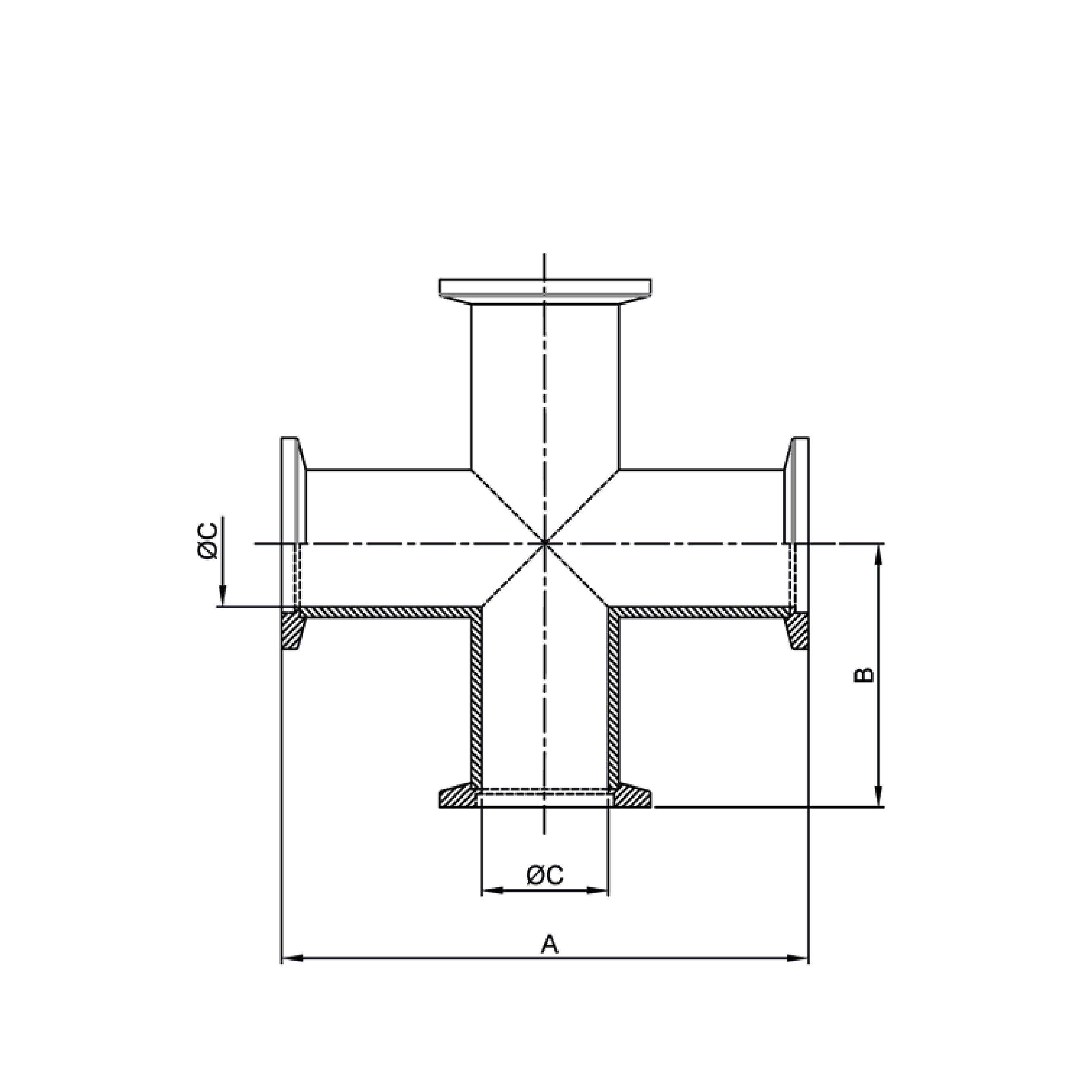

Aluminium EN AW-6082 / 3.2315| Size (DN) | A (mm) | B (mm) | C (mm) | Order No. |
|---|---|---|---|---|
| 16 | 80 | 40 | 16 | VC1FTN1AL016-F |
| 25 | 100 | 50 | 14 | VC1FTN1AL025-F |
| 40 | 130 | 65 | 40.5 | VC1FTN1AL040-F |
| Size (DN) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| 16 | 80 | 40 | 16 |
| 25 | 100 | 50 | 14 |
| 40 | 130 | 65 | 40.5 |
