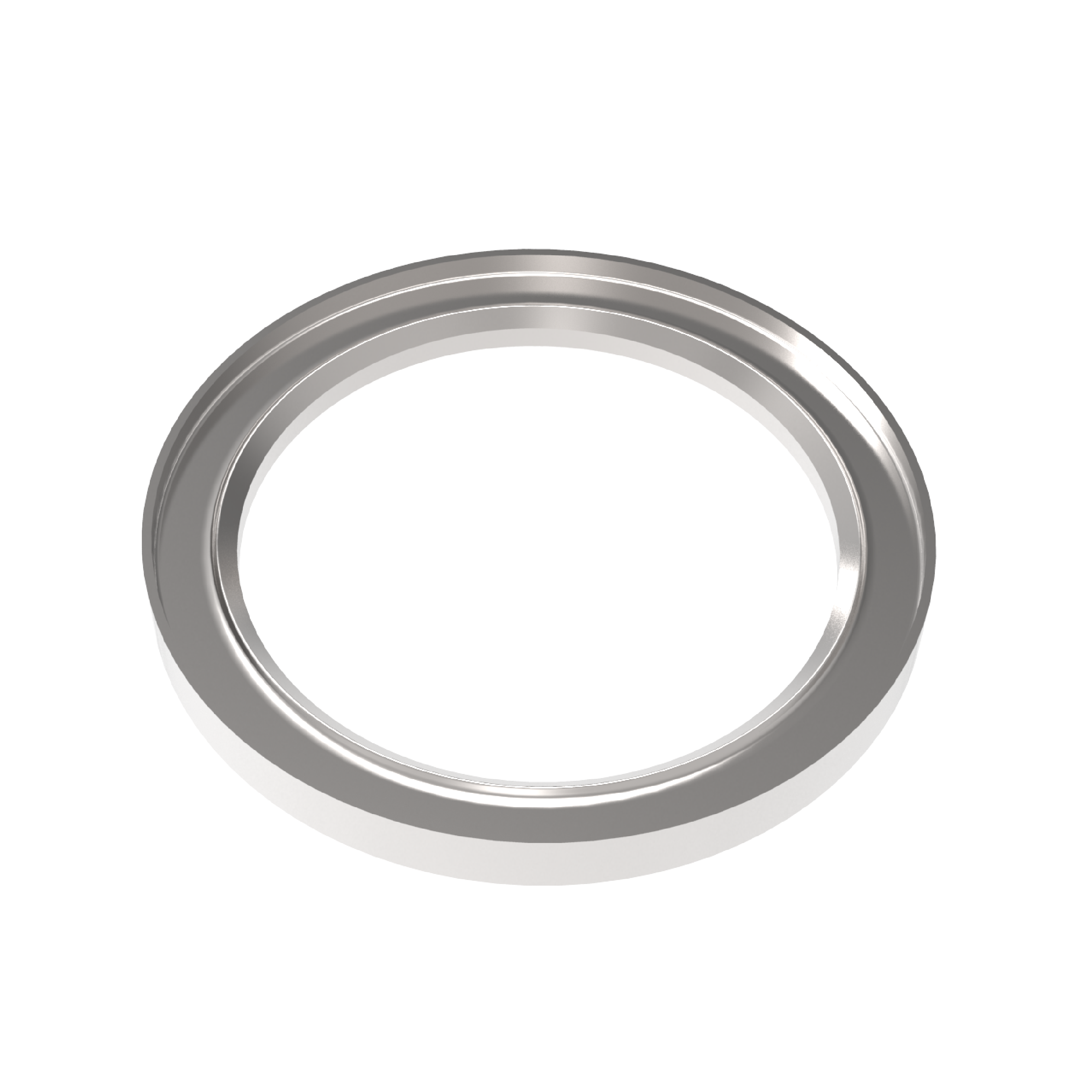

ISO-KF Edge Seal One-Side Outer Centered
ISO-KF Edge Seal One-Side Outer Centered - Image 2

ISO-KF Edge Seal One-Side Outer Centered

Categories ,

Description

The ISO-KF Edge Seal One-Side Outer Centered is a metal edge seal for ISO-KF vacuum connections that require no gas permeation and one-sided outer-centered sealing. It is suitable for cryo, radiation-tolerant, and nuclear applications, is clean room application compatible, and is intended for stainless steel flanges. The catalog specifies that it is used with an ISO-KF clamp for metal seals and is for single use only. This product is available in Aluminium EN AW-1050 and Copper for the standard size groups 10/16, 20/25, 32/40, and 50.

Request a Quote
Field Data
Product Name ISO-KF Edge Seal One-Side Outer Centered
System ISO-KF
Product Type Edge Seal One-Side Outer Centered
Sealing Type Metal seal
Centering Type One-side outer centered
Gas Permeation No gas permeation
Application Notes Cryo, radiation tolerant and nuclear application
Clean Room Compatibility Clean room application compatible
Flange Compatibility For stainless steel flanges
Fastener ISO-KF Clamp for metal seals
Reusability For single use only
Material Versions Aluminium EN AW-1050, Copper
Available Sizes (DN) 10/16, 20/25, 32/40, 50
Main Dimensions A, B, J
Temperature Range - Aluminium EN AW-1050 -196 to 150 °C
Temperature Range - Copper -196 to 200 °C
Aluminium EN AW-1050
Size (DN) A (mm) B (mm) J (mm) Order No
10/16 30 20 23 VC1SLG2AL016
20/25 40 32 33 VC1SLG2AL025
32/40 55 45 48 VC1SLG2AL040
50 75 65 68 VC1SLG2AL050
Copper
Size (DN) A (mm) B (mm) J (mm) Order No
10/16 30 20 23 VC1SLG1CU016
20/25 40 32 33 VC1SLG1CU025
32/40 55 45 48 VC1SLG1CU040
50 75 65 68 VC1SLG1CU050

Aluminium EN AW-1050
Size (DN) A (mm) B (mm) J (mm)
10/16 30 20 23
20/25 40 32 33
32/40 55 45 48
50 75 65 68
Copper
Size (DN) A (mm) B (mm) J (mm)
10/16 30 20 23
20/25 40 32 33
32/40 55 45 48
50 75 65 68
