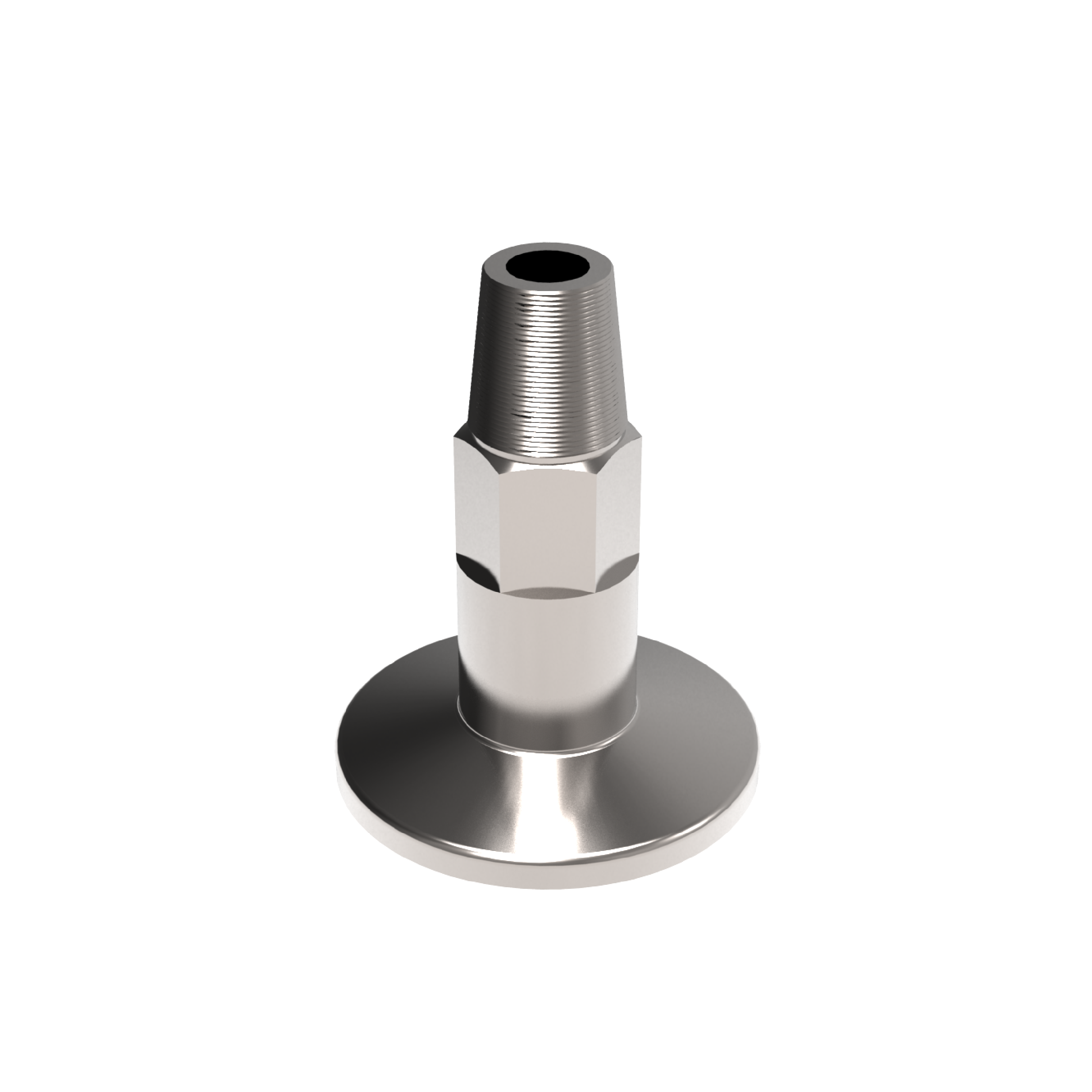

The ISO-KF Flange With NPT Thread Male is designed for ISO-KF vacuum systems where a male NPT threaded connection is required for compact and reliable integration of instrumentation, fittings, or auxiliary line connections. Based on the product sheet image, it is available in Stainless Steel 304 / 1.4301 and Stainless Steel 316L / 1.4404, with standard configurations for DN16 and DN25.

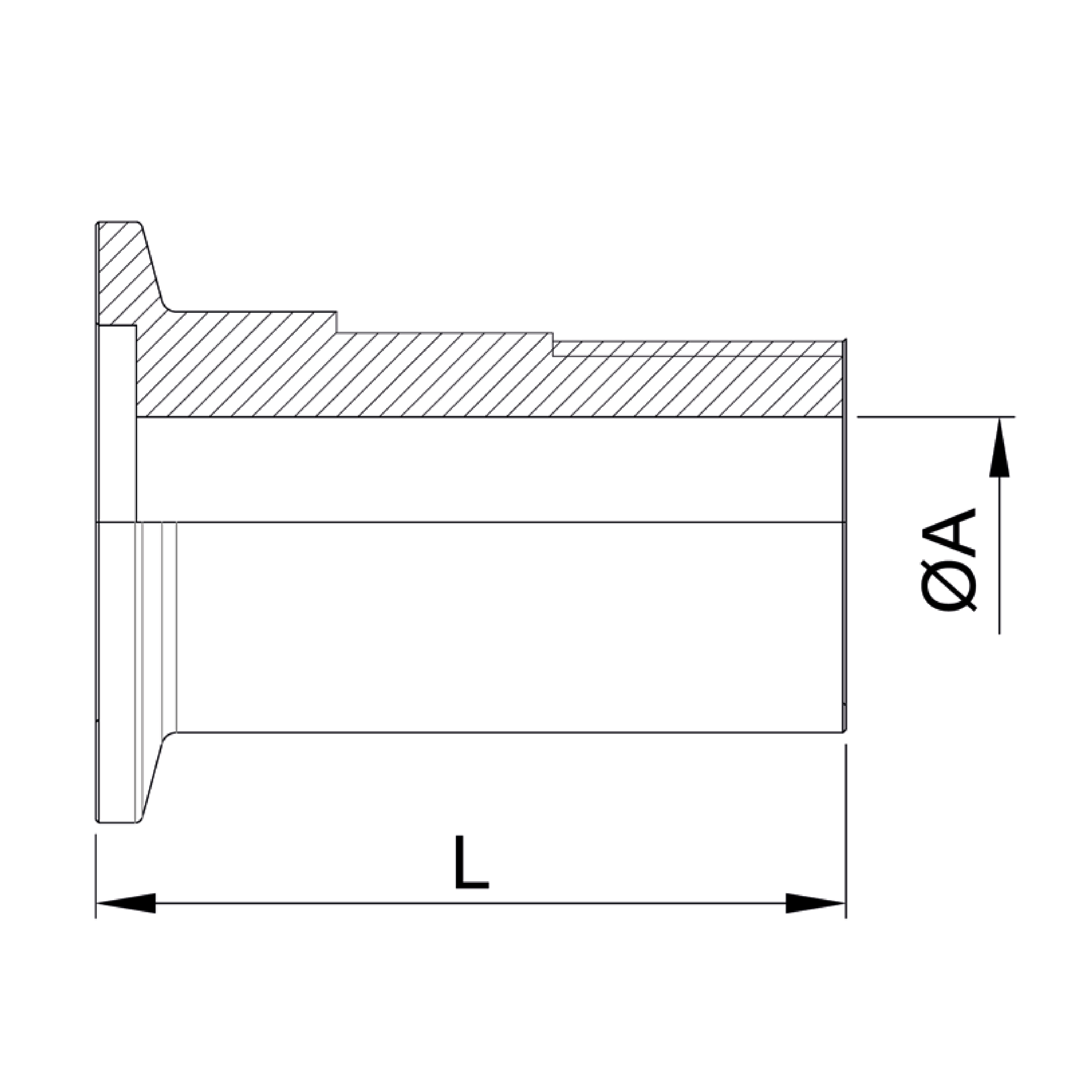

| Field | Data |
|---|---|
| Product Name | ISO-KF Flange With NPT Thread Male |
| System | ISO-KF |
| Product Type | Flange With NPT Thread Male |
| Connection Type | Male NPT thread |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Available Sizes (DN) | 16, 25 |
| Available Thread Options | NPT 1/4, NPT 1/2 |
| Main Dimensions | A, L, Thread |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
| Size (DN) | A (mm) | L (mm) | Thread | Order No |
|---|---|---|---|---|
| 16 | 7.1 | 50 | NPT 1/4 | VC1ADG1SS016-03-50 |
| 25 | 7.1 | 50 | NPT 1/4 | VC1ADG1SS025-03-50 |
| 25 | 11.9 | 75 | NPT 1/2 | VC1ADG1SS025-05-75 |
| Size (DN) | A (mm) | L (mm) | Thread | Order No |
|---|---|---|---|---|
| 16 | 7.1 | 50 | NPT 1/4 | VC1ADG2SS016-03-50 |
| 25 | 7.1 | 50 | NPT 1/4 | VC1ADG2SS025-03-50 |
| 25 | 11.9 | 75 | NPT 1/2 | VC1ADG2SS025-05-75 |
| Size (DN) | A (mm) | L (mm) | Thread |
|---|---|---|---|
| 16 | 7.1 | 50 | NPT 1/4 |
| 25 | 7.1 | 50 | NPT 1/4 |
| 25 | 11.9 | 75 | NPT 1/2 |
| Size (DN) | A (mm) | L (mm) | Thread |
|---|---|---|---|
| 16 | 7.1 | 50 | NPT 1/4 |
| 25 | 7.1 | 50 | NPT 1/4 |
| 25 | 11.9 | 75 | NPT 1/2 |
