| Field | Data |
|---|---|
| Product Name | ISO-KF Outer Centering Outer Ring |
| System | ISO-KF |
| Product Type | Outer Centering Outer Ring |
| Material Options | Aluminium EN AW-6082 T6, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404, PTFE |
| Available Sizes (DN) | 10/16, 20/25, 32/40, 50 |
| O-Ring Options | Various types of O-ring seals available |
| Temperature Range — Aluminium EN AW-6082 T6 | -196 to 150 °C |
| Temperature Range — Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range — Stainless Steel 316L / 1.4404 | -196 to 350 °C |
| Temperature Range — PTFE | -15 to 150 °C |

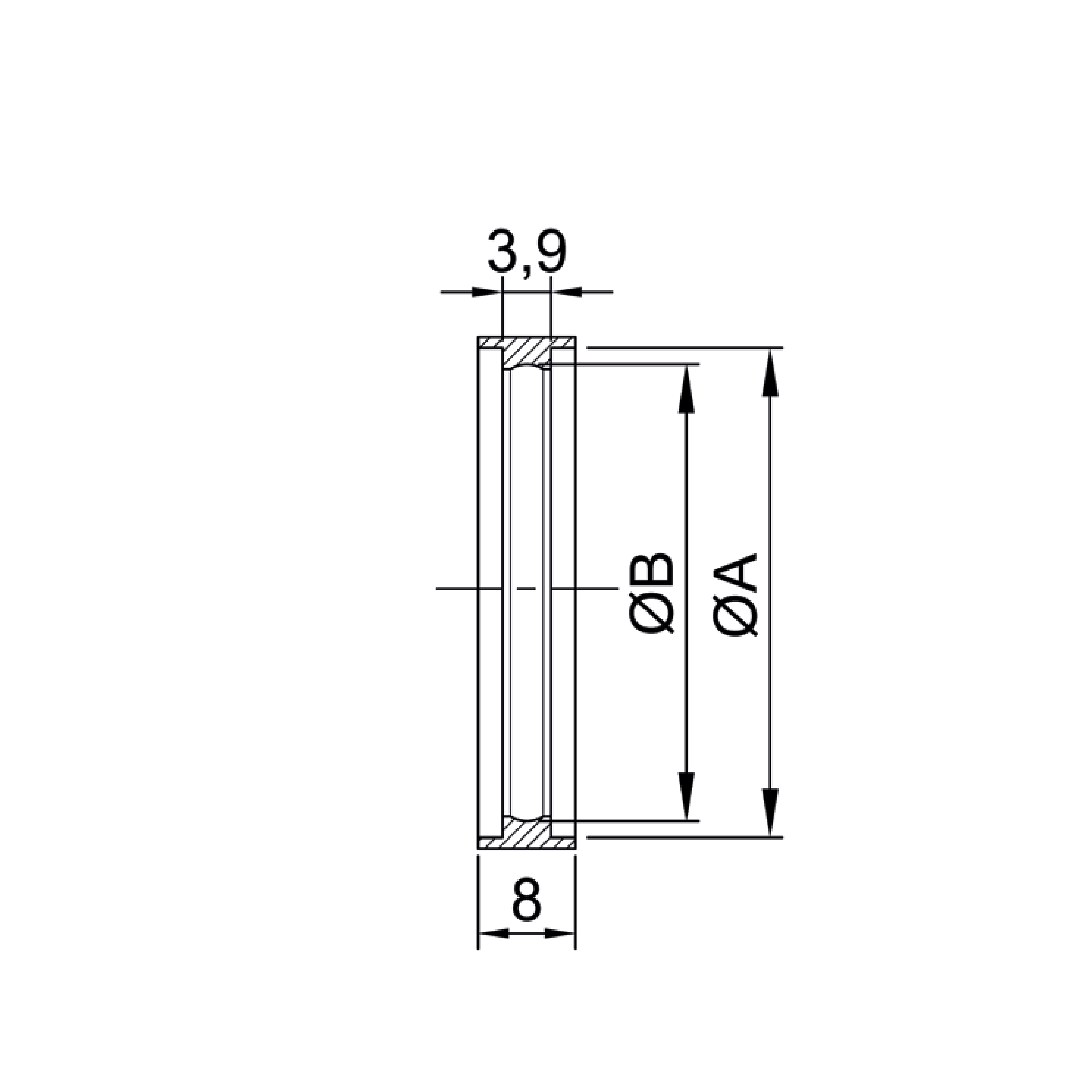

| Main Dimensions | A, B |
| Dimensional Units | mm |
